OX Amp Top Box Quick Start 10
Amp & Speaker Connections
Caution: Always POWER OFF the tube amp before connecting or disconnecting
its speaker output!

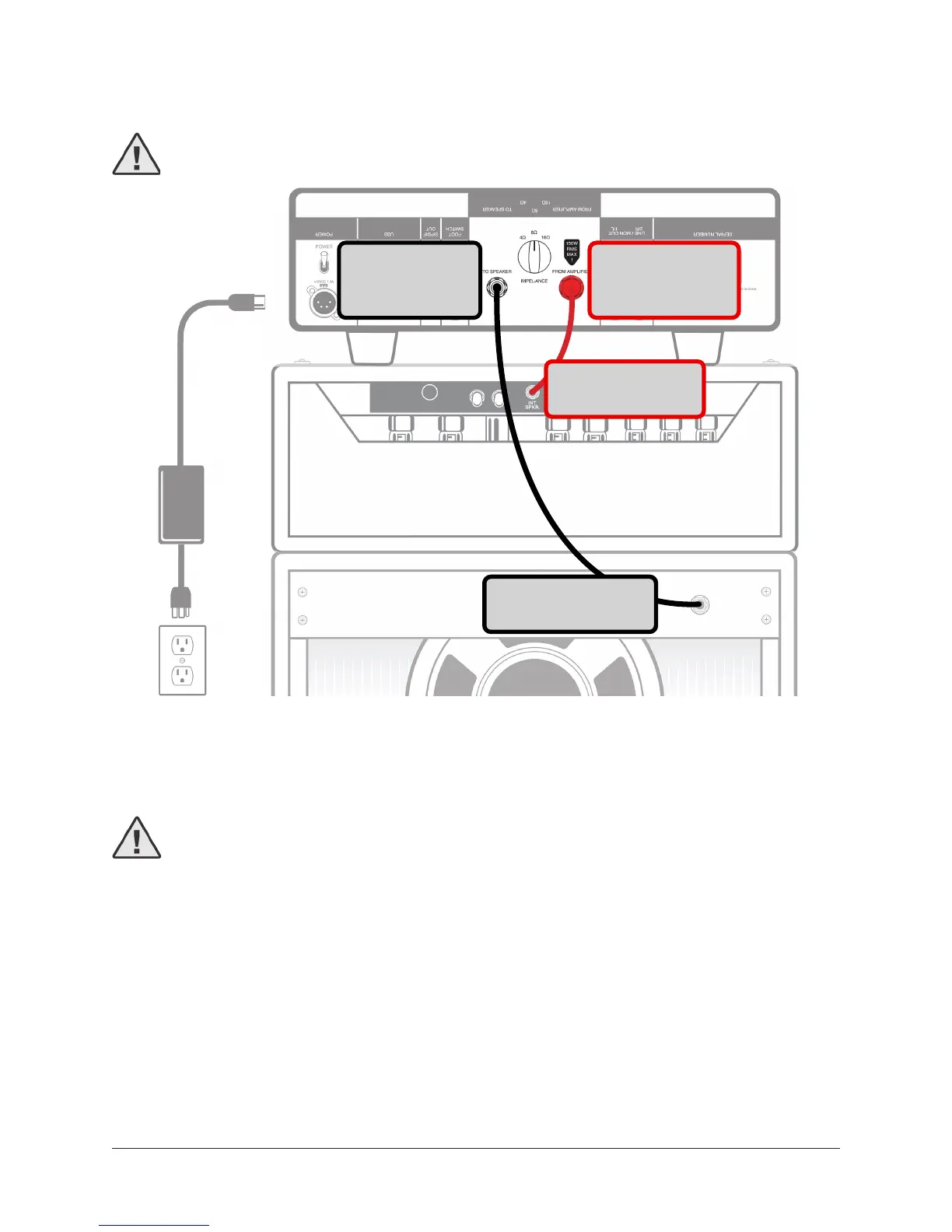

OX speaker wire connections to amp and speaker cabinet
Amp & Speaker Connection Notes
Caution: To avoid equipment and/or hearing damage, be careful to connect
and power the amp and OX in the proper sequence. See the Important Setup
Steps for specific instructions.
• Use only high-quality 12 to 16 gauge unshielded ¼” mono TS (tip-sleeve) speaker
cables for OX’s high-power FROM AMPLIFIER and TO SPEAKER connections.
“Speaker” is usually printed on these cables.
Tip: As a general guideline, the longer a speaker cable is, the smaller its cable
gauge needs to be (smaller gauge = bigger wires).
• If connecting a tube combo amp (speaker and amp in the same cabinet), you
might need a male-to-female speaker extension cable with (not included) to reach
between OX's TO SPEAKER output jack and the guitar speaker.
OX INPUT
“FROM AMPLIFIER”
Amp Speaker Output
(to OX input)
OX OUTPUT
“TO SPEAKER”
Speaker Cab Input
(from OX output)
Tube Amplifier
Power Supply
Guitar Speaker
Cabinet
