Overview
The UAD Meter & Control Panel application is used to
monitor UAD device resources, confirm the UAD system is
operating properly, and configure the global UAD
Powered Plug-Ins system parameters.
The UAD Meter window displays the current DSP, pro-
gram, and memory status of the UAD hardware in real-
time. Figure 7 shows how the UAD Meter appears on when UAD-1 and
UAD-2 devices are installed together in the same system. When only one de-
vice type is installed, only that device type is displayed.
The UAD Control Panel Window (page 64) has multiple panels that display
and modify various system, plug-in, and configuration parameters.
Note: The Quit, Minimize, and Menu button positions shown in Figure 4 are
as they appear on Mac systems. The button positions are reversed on Win-
dows systems, reflecting the conventions for each OS platform.

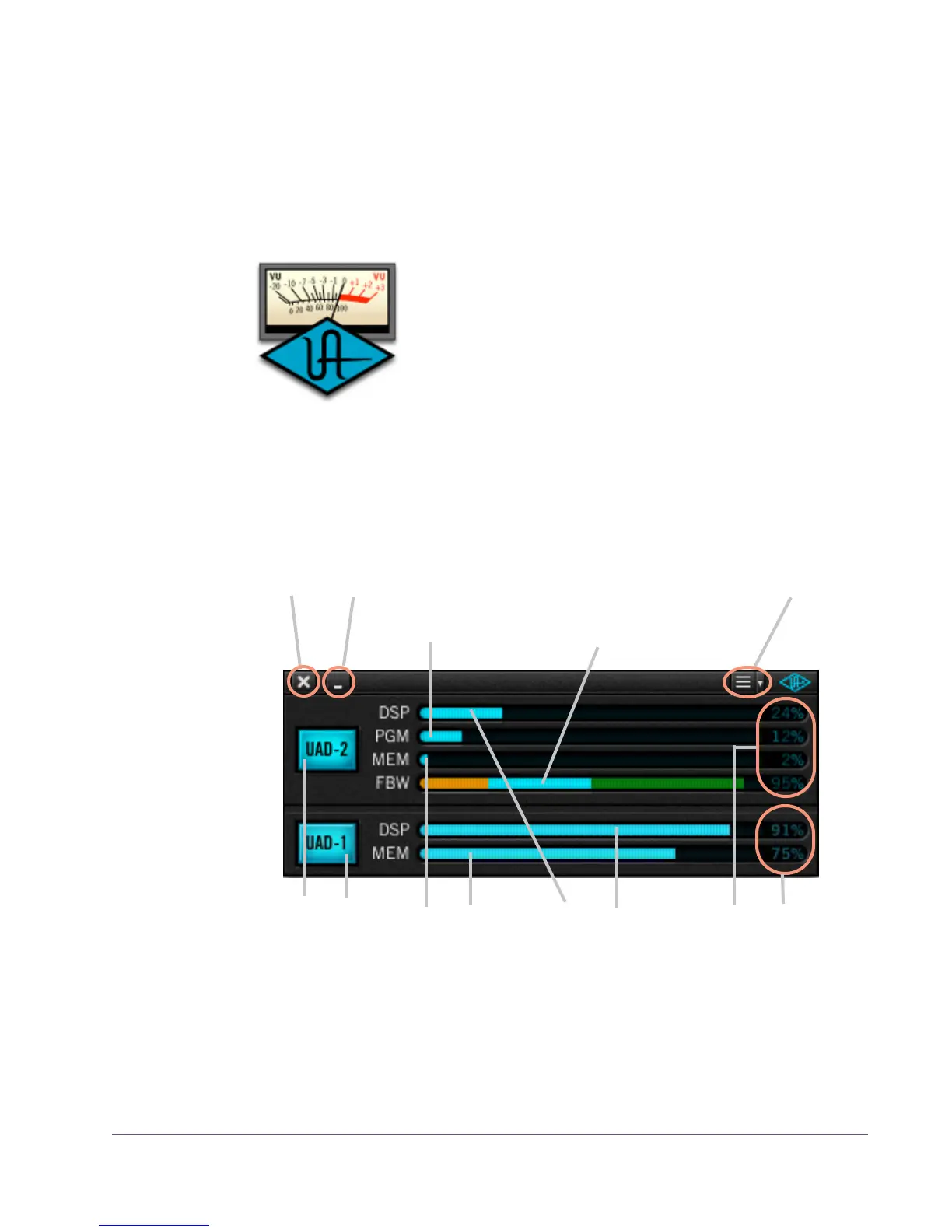

Figure 7. The UAD Meter window
Quit Minimize Control Panel menu
Disable current
DSP usage gauge Averaged loads
Program memory gauge
Memory gauge
plug-ins button
(UAD-2 devices only) (UAD-2 Satellite only)
FireWire Bandwidth gauge
