Unox MINDMaps BAKERTOP User Manual

OvEN

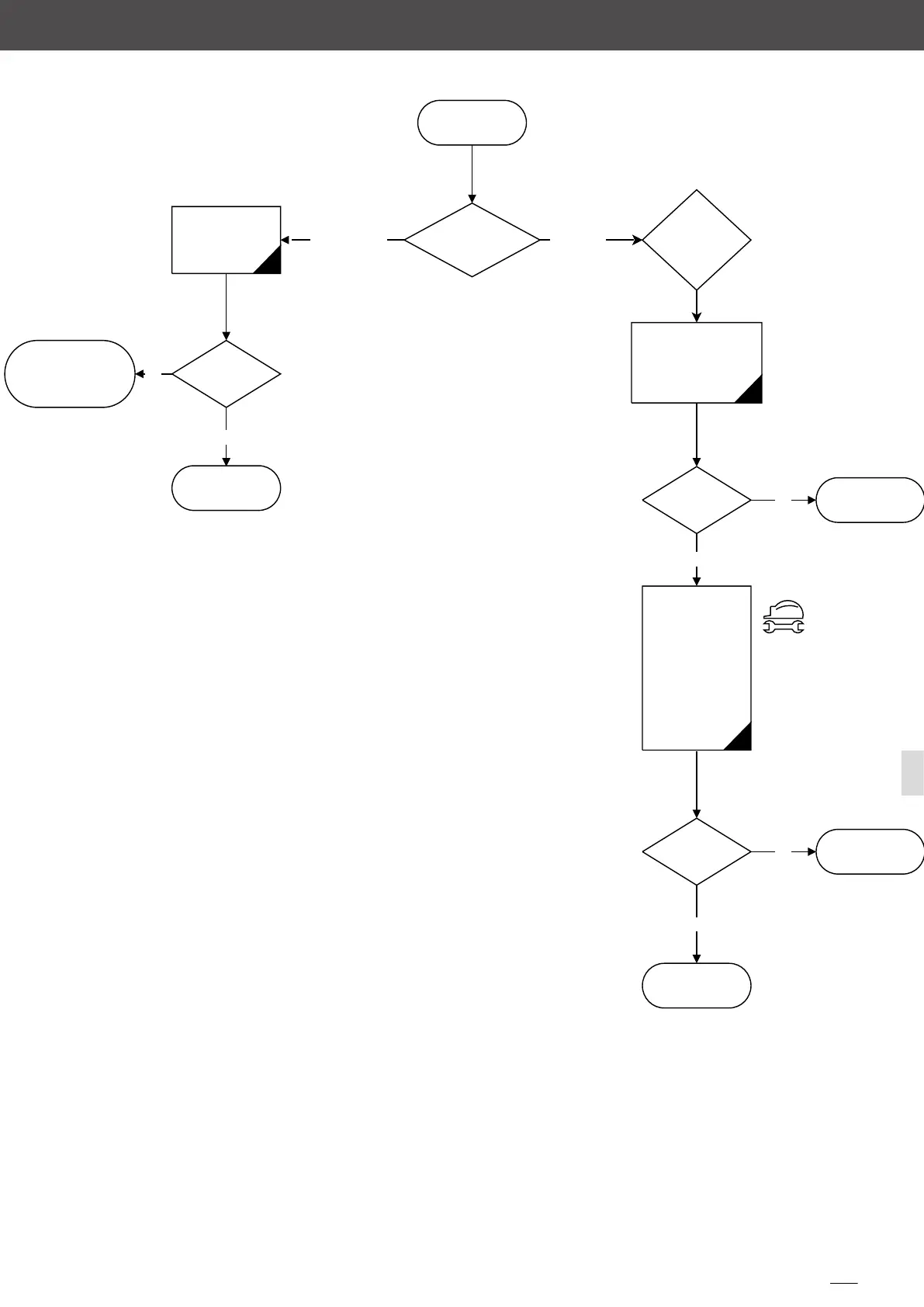

aF25 - trolley iS MiSSiNG
AF25trolley
is missing alarm
Istheovenatrolleyor
countertopmodel?
Enter the SERVICE
MENU andselect
LOADMODEL
PARAMETER
Is the model
shown in the
panel the actual
model?
Loadmodelparameter
usingthePARAM_S6
fileintheUSBstick
Replacethe
power
board
Checktheconnectionof
themicroswitchtoP18
socketonthepower
board
Isit
connected?
Connectthemicro
switchtoP18
socket
Turnoffpower
supply andmeasure
the electrical
conductivity ofthe
microswitch circuit
onP18socket. Run
thetestwiththe door
closedandthe
multimetersettoohm
Isthe circuit
closed ?
Replacethe
micro switch 
Replacethe
powerboard
Test
1
Is the trolley
in the oven?
TROLLEY
COUNTERTOP
NO
YES
NO
YES
NO
YES
