Unox MINDMaps BAKERTOP User Manual



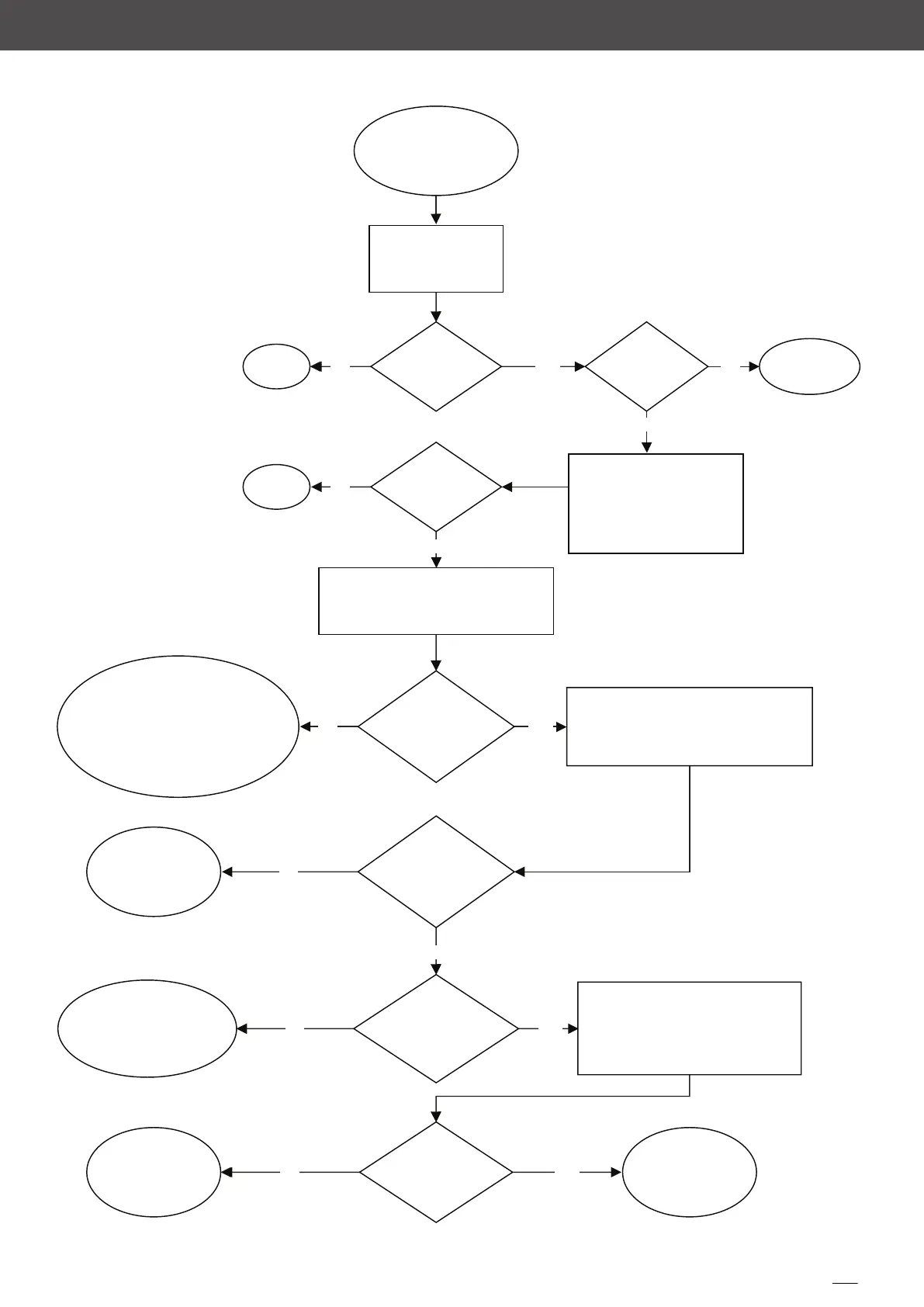

AF41 - washing pre-
cooling alarm
Case 2, T (302 °F)
Update the software
to the latest version
available
Does the alarm
persist?
Does the alarm
persist?
End
End
Is the water tap
open?
Open the tap
Check the status of the
water and mechanical filter.
The water should be cold.
If the mechanical filter is
clogged clean it and run a
new washing cycle
Check if the inow pressure is within
the range 1,5 and 6 bar and if the
outow pressure to the pressure
reducer is equal to about 2,3 bar
Check with the multimeter set to VA C if
the power board supplies the water
solenoid valve EL1, EL2 and EG1
through the P4 and P26 sockets.
You should find 230 VA C
Replace the back
power board
Check if the steam pipe is
clogged. If yes, clean it
otherwise replace the
washing system
Check if the temperature probe is
working properly. Measure the
actual temperature of the cooking
chamber with an external probe
and compare with the reading of
the oven
Replace the
temperature probe
Replace the back
power board˛
NO YES
NO
YES
NO
YES
NO YES
NO
NO YES
NO YES
If you have a low pressure
upstream the oven call a plumber.
If the inow pressure is ne,
but the outow pressure from
the pressure reducer
is not ne, than replace it
Is the
temperature
reading of the probe
ne?
Do you
have the right
value of water
pressure?
Do you
have the power
supply to the water
solenoid
valve?
Is there
water coming
out from the internal
humidity pipe and
rotor arm?
YES
OVEN
157
