22 DS1099-077
1. Motion detection can be activated/deactivated.
2. Holding the left button pressed, drag the mouse to select the motion detection area. Single cells can be enabled by clicking
on them.
3. Set motion detection sensitivity, options: High, Middle, Low.
4. It is possible, when Motion is detected, to trigger the following actions:
➢ Send e-mail: with picture attached
➢ Send to FTP: pictures are saved on the FTP server (to set an FTP server refer to section 【Network】 →【FTP】)
➢ Video Rec on SD: event video is recorded on the camera’s SD memory card (not included)
➢ Push Notification: push notification is received by the URMET app V-Stream on smartphone (IMPORTANT: it is
also necessary to enable the push reception for each camera inside the V-Stream -> ALARM menu).
➢ Snapshot on SD: event picture is saved on the local micro SD memory card (not included).
5. Click on Save to make the setting active.
2) PROGRAMMING

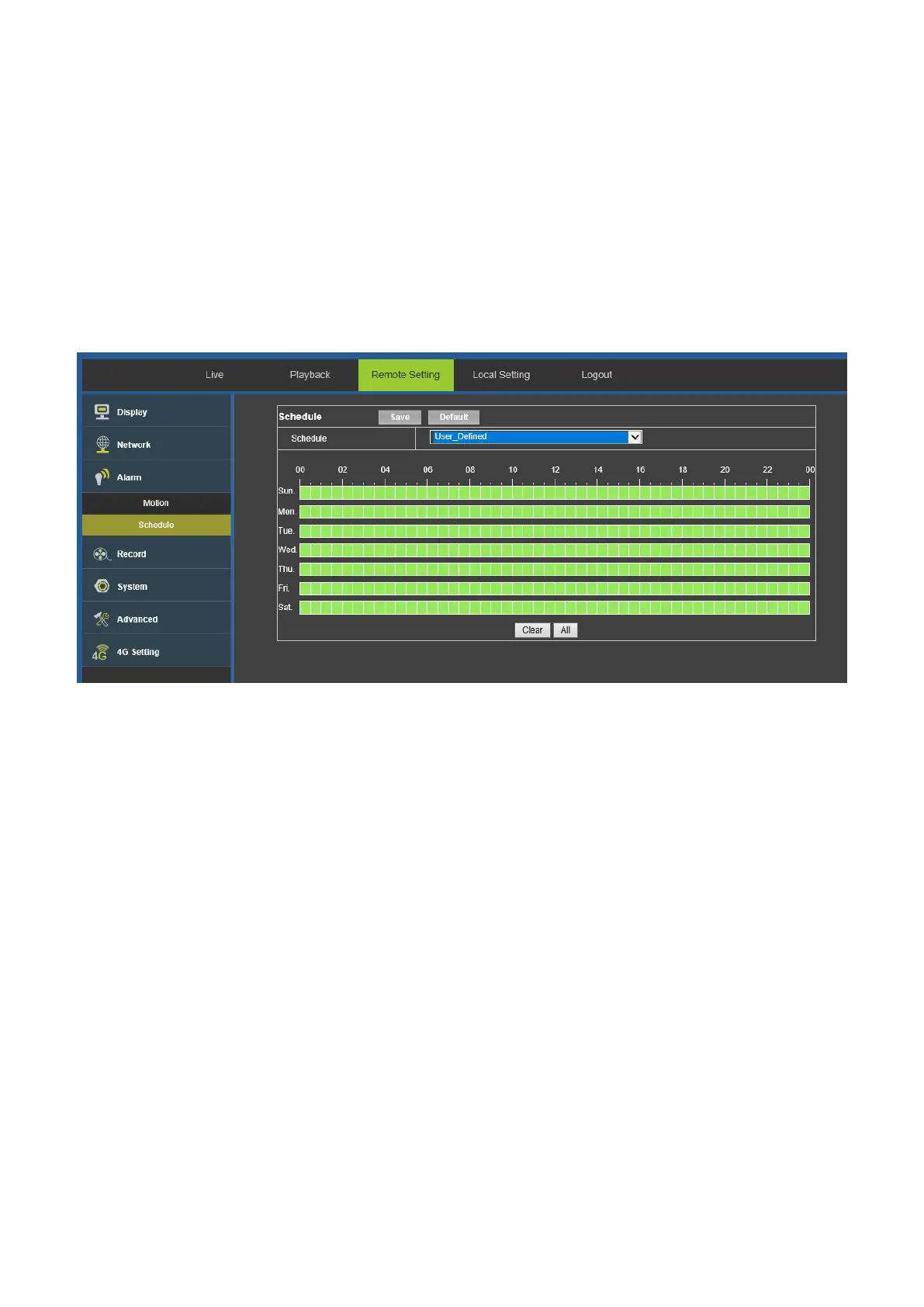

Click on 【Alarm】) →【Schedule】 to access the following interface.
Schedule: in this page it is possible to program when the alarm must be activated (All Day, User_defined).
When 【User_defined】is selected, holding the left button pressed, drag the mouse to select the programming periods. Single
cells can be enabled by clicking on each of them.
By clicking on each weekday’s name, the whole day line is enabled/disabled.
Press Save to save the changes.
8.3.4 RECORD
Click on【Record】→【Schedule】to access the following page.
In this page it is possible to set the weekly schedule of video recording function on the SD memory card.
