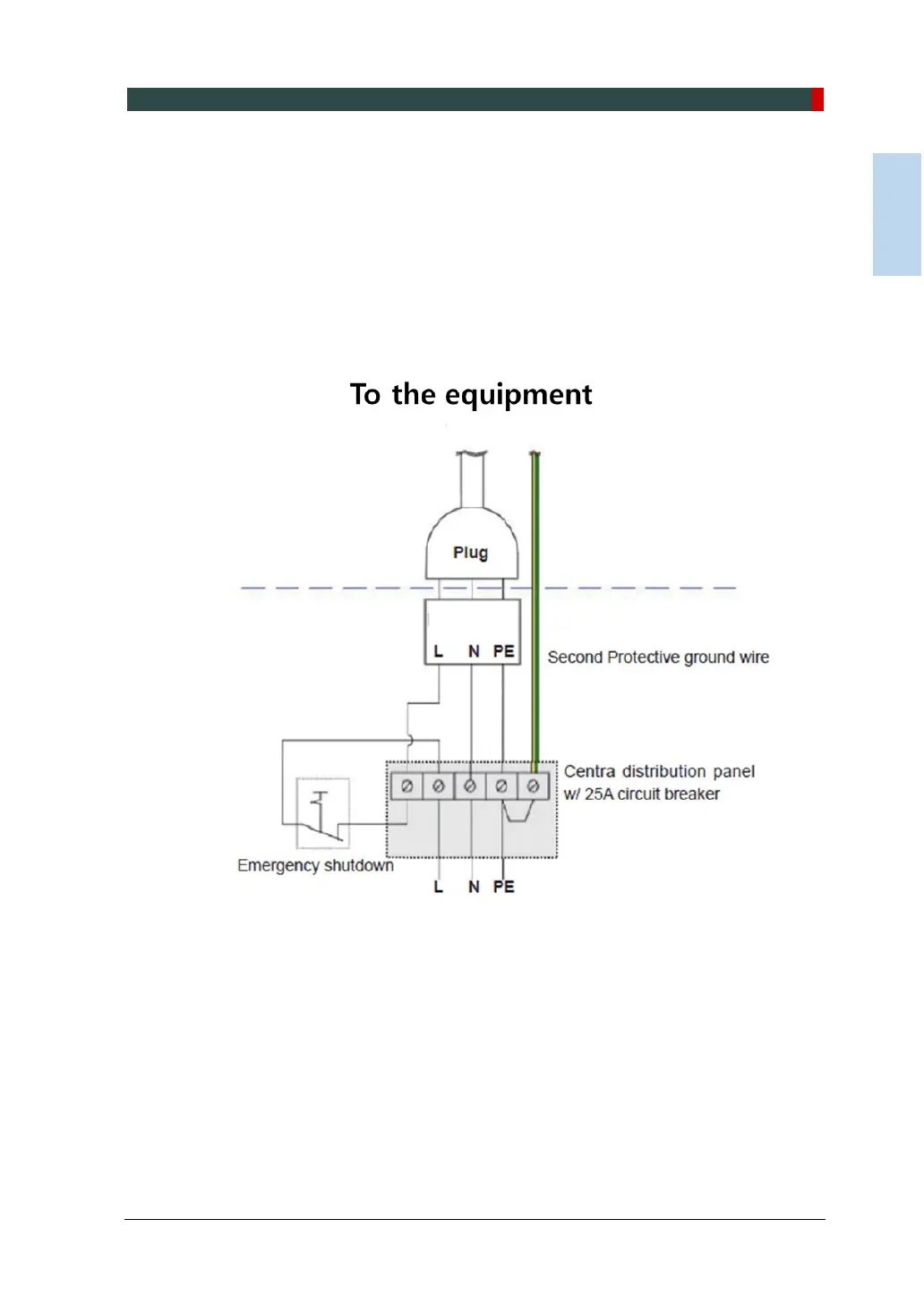

B. Installing the Emergency Stop Switch
⚫ Install the Emergency Stop Switch on the power cable line.
⚫ Install this switch so that it is easy to reach in the emergency case but can’t
be pushed by mistake.
⚫ The switch shall be a type of mistake-proof.
⚫ The switch is not supplied.]
⚫ The switch shall be installed at a height of 1.2 to 1.5 meters (47 to 60”).
1. The cable sizes: N, L, and PE≥ 12 AWG (3 x 4 mm
2
).
2. The cable to Emergency Stop Switch shall be the same size as the power cable
itself.
3. Install the socket connector terminal on the 2nd protective ground wire.
To Next Page
