Vatech PaX-i Insight User Manual

4. Installing the Equipment: Base Stand (Optional)
PaX-i Plus / Insight (Model: PCH-30CS) Installation Manual 43
English

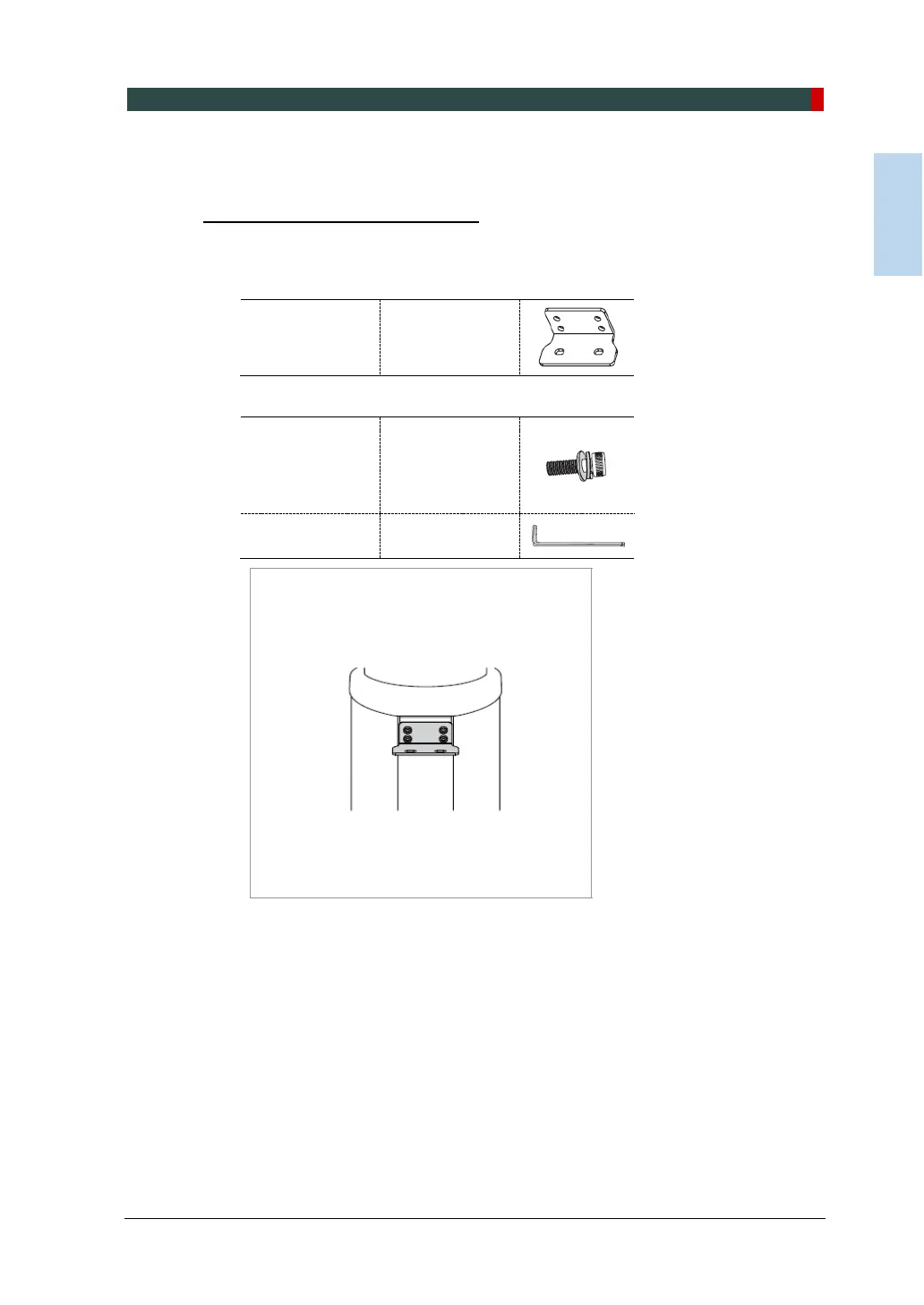

4.4 Installing the Wall and Column Brackets
Assembling the Column Bracket
1. Remove the plastic wrap covering the column unit by using a cutter.
2. Prepare the column bracket.
Wall Bracket 2
(Part. No. 22)
3. Attach the above bracket to the back of the column with the four Wrench Bolts.
Wrench Bolt
M8 x 20
w/ spring and
flat washers
(Part No. 29)
Allen Wrench
6 mm / 0.24”
