7 Set up with the integrated display and adjustment unit
VEGABAR 39 • Three-wire 1 x transistor or 4 … 20 mA
57536-EN-200831
7 Set up with the integrated display and
adjustment unit
7.1 Adjustment system
The instrument is operated via the three keys of the integrated display
and adjustment unit. The respective menu items are shown on the LC
display.Youcanndthefunctionoftheindividualkeysinthebelow
overview.
Certain settings are only possible to a limited extent or not possible
with the integrated display and adjustment unit. For these settings, we
recommend using the adjustment app or PACTware with correspond-
ing DTM.
1
2

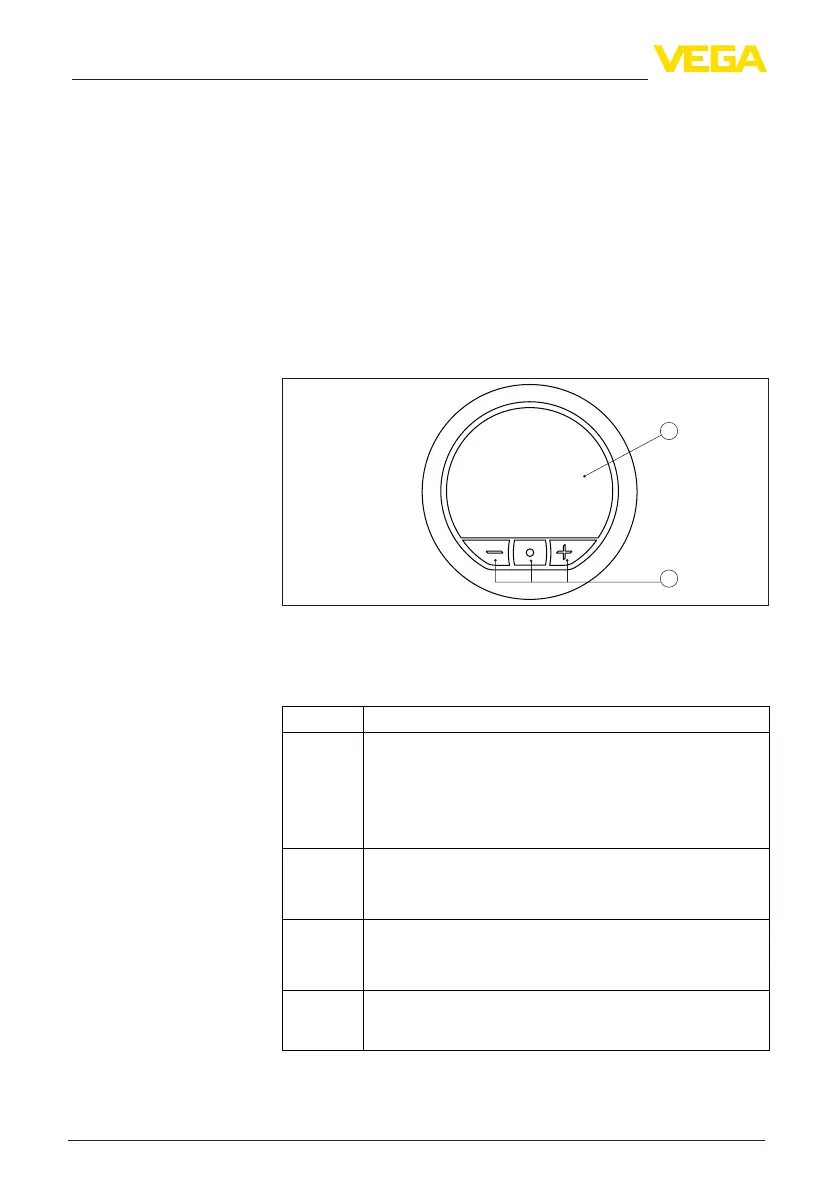

Fig. 19: Integrated display and adjustment unit
1 LC display
2 Adjustment keys
Key Function
[•] Entry to the menu level
Jump to selected menu item
Edit parameter
Select editing position
Save value
[+] Switching between the individual measured value windows
Navigation in the menu items, forwards
Change parameter values upwards
[-] Switching between the individual measured value windows
Navigation in the menu items, backwards
Change parameter values downwards
[+] and [-]
simultane-
ously
Jump to next higher menu
Interrupt input
Function
Display and adjustment
elements
Key functions
