H = Headlight warning light
I = Fuel gauge
L = Low fuel warning light
M = Coolant temperature gauge
N = Immobilizer LED

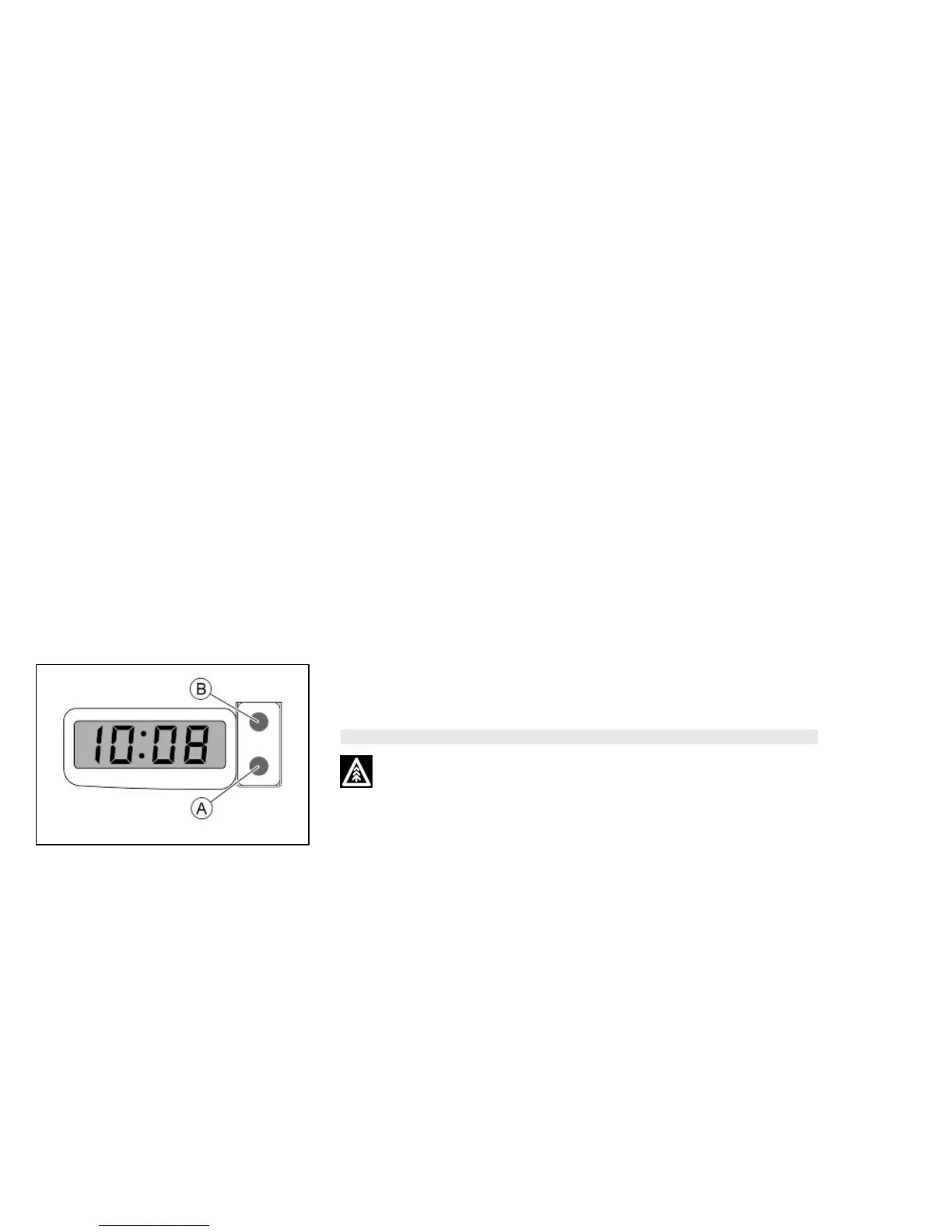

Clock (01_03)
Located in the instrument panel, it displays hours and minutes with 1 to 12-hour time,
AM or PM.
Operate the function selection button «B» and month, day and seconds are also dis-
played besides hours and minutes.
To adjust the different functions, select the desired function with button «A» and adjust
with button «B». The time counter can be reset by pressing button «A» with the clock
in the seconds function.
01_03
The digital clock is powered by a battery (battery life is about 2 years); lift the whole
instrument panel to replace the battery. It is advisable to take your vehicle to an
Authorised Service Centre for this operation.
WARNING
DEAD BATTERIES ARE HARMFUL TO THE ENVIRONMENT. THEY MUST DIS-
POSED OF IN SUITABLE CONTAINERS AS PRESCRIBED BY THE REGULA-
TIONS IN FORCE.
11
1 Vehicle

Vespa GTS Super 300 Specifications

General

Displacement	278 cc
Fuel System	Electronic fuel injection
Fuel Capacity	8.5 liters
Seat Height	790 mm
Front Tire	120/70 - 12"
Rear Tire	130/70 - 12"
Length	1, 950 mm
Width	755 mm
Dry Weight	148 kg
Engine Type	4-stroke, single-cylinder
Max Power	23.8 hp @ 8, 250 rpm
Max Torque	26 Nm @ 5, 250 rpm
Cooling System	Liquid-cooled
Transmission	CVT automatic
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Rear Suspension	Double hydraulic shock absorber with adjustable preload
Front Brake	220 mm disc brake
Rear Brake	220 mm disc brake
