Vespa GTS Super 300 User Manual

01_09

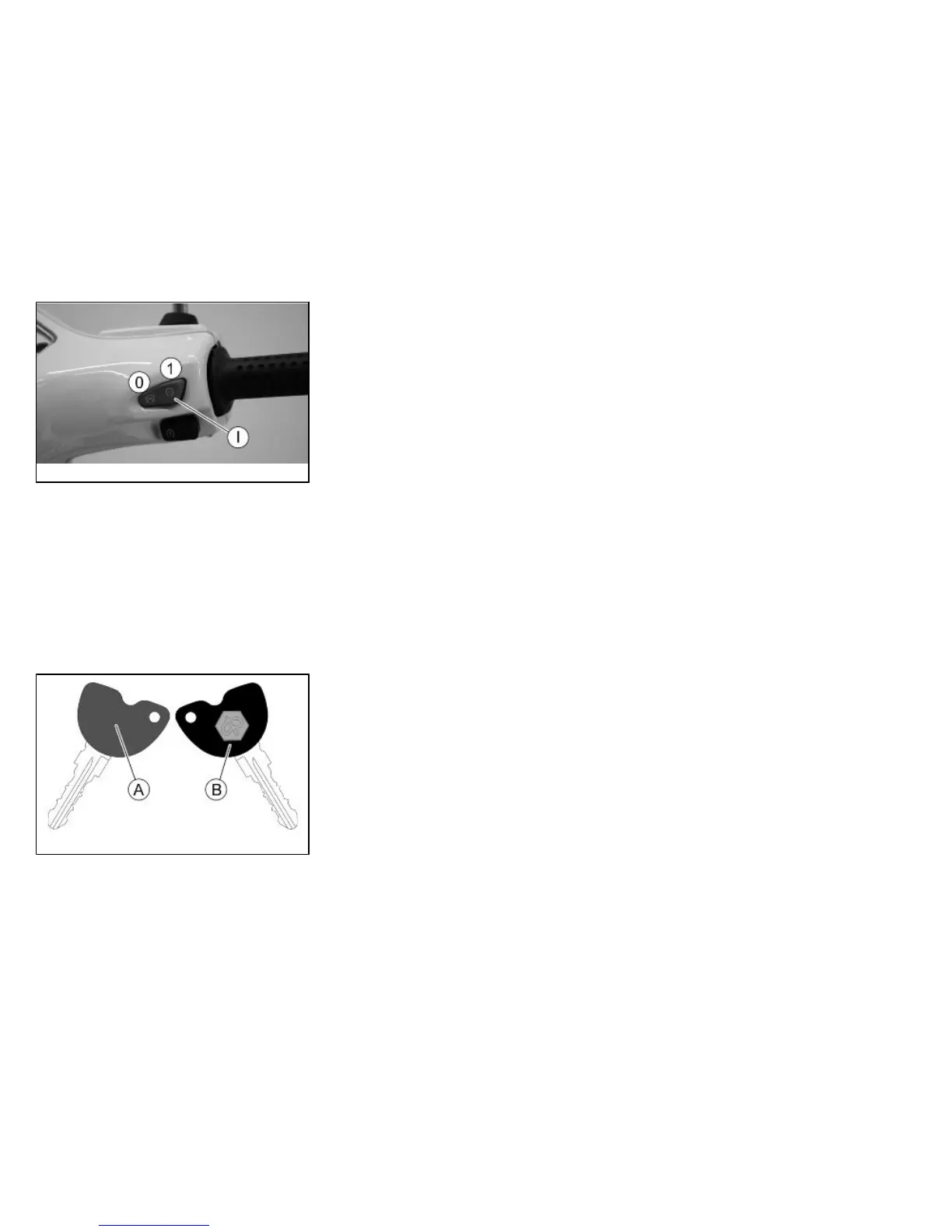

Engine stop button (01_09)
The engine can be started when the emergency cut-off switch «I» is set to «1»
RUN; if the emergency cut-off switch «I» is set to «0» OFF , the engine cannot be
started, or it shuts off if already running.
The immobilizer system
In order to enhance theft protection, the scooter is equipped with a «PIAGGIO IM-
MOBILIZER » electronic engine locking device that is activated automatically when
the starter key is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system
checks the starter key, and only if this key is recognised will the immobilizer system
allow the scooter to be started.
01_10
Keys (01_10, 01_11, 01_12)
Two types of keys come with the vehicle.
The key «A» is the «MASTER» key.
Only a single copy of this key is supplied, which is necessary to program all your other
keys and for your dealer to perform some maintenance operations. For this reason it
is advised that it be used only in exceptional circumstances.
The key «B» (single copy supplied) is used for regular operations such as:
- Engine start-up.
Together with the two keys, you will be given a CODE CARD bearing the same code
imprinted onto the two keys.
15
1 Vehicle

Vespa GTS Super 300 Specifications

General

Displacement	278 cc
Fuel System	Electronic fuel injection
Fuel Capacity	8.5 liters
Seat Height	790 mm
Front Tire	120/70 - 12"
Rear Tire	130/70 - 12"
Length	1, 950 mm
Width	755 mm
Dry Weight	148 kg
Engine Type	4-stroke, single-cylinder
Max Power	23.8 hp @ 8, 250 rpm
Max Torque	26 Nm @ 5, 250 rpm
Cooling System	Liquid-cooled
Transmission	CVT automatic
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Rear Suspension	Double hydraulic shock absorber with adjustable preload
Front Brake	220 mm disc brake
Rear Brake	220 mm disc brake
