7.4 REMOVAL OF THE
CAPACITOR
3 Disconnect the sockets and connect the
new capacitor.
7.5
REMOVING AND REPLACING
THE MOTOR
1 Remove the back panel of the machine by
first removing the left side panel as shown in
chapter 3.
2 Remove the pump as shown in the first para-
graph of this chapter.
3 To facilitate the removal of the motor, it can
be very effective to unscrew the screw that
holds the door on the control unit closed.
Use a screwdriver to remove the screw.
DANGER
Before proceeding with the operations
described in the chapter make sure that the
machine is turned off and unplugged from the
mains.
To replace the capacitor:
1 Remove the left side panel as shown in
chapter 3.
2 Remove the bolt that holds it to the motor
using a 13 mm wrench.
DANGER

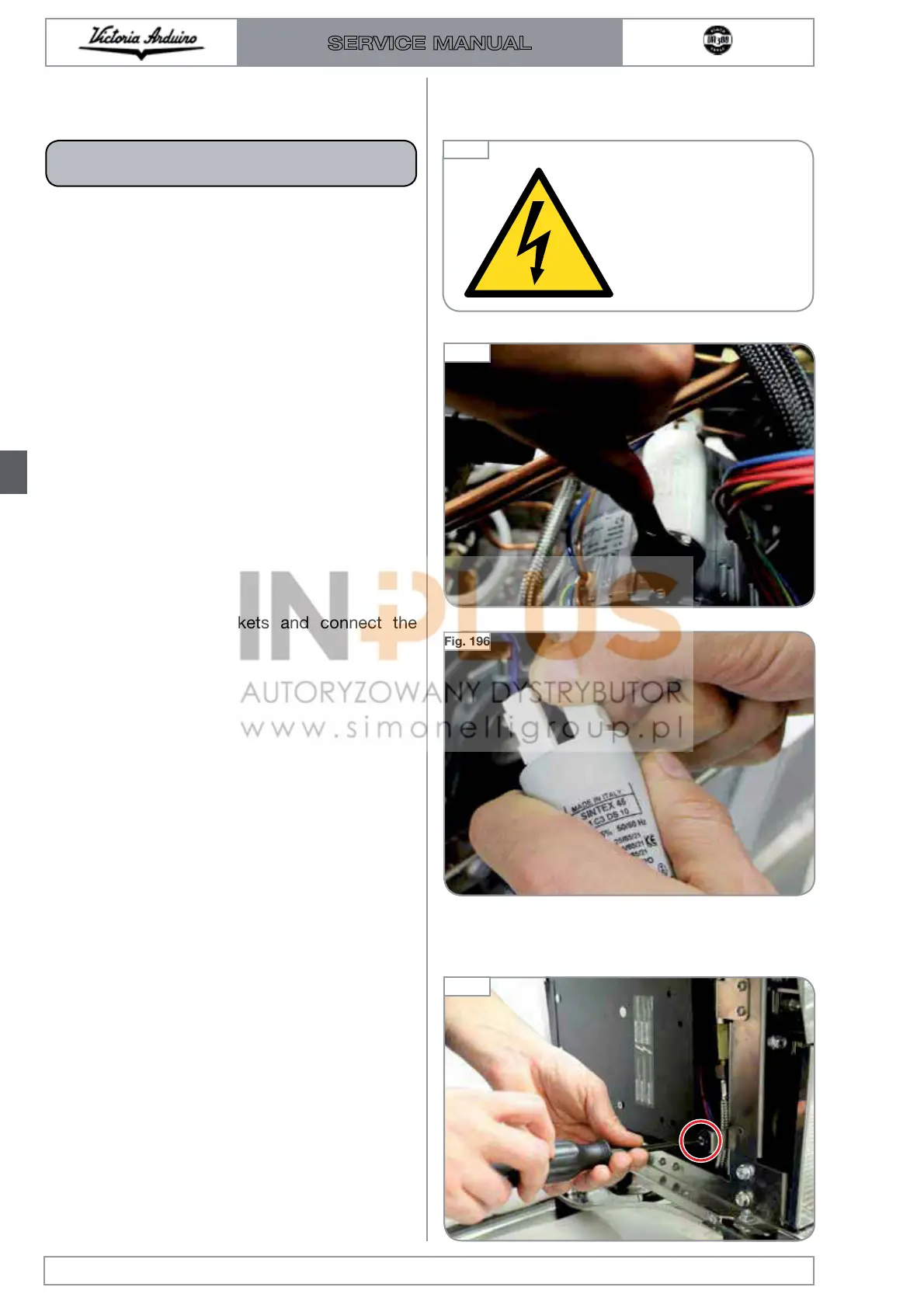

Fig. 194
Edition 01 of 08/2017
7.6
SERVICE MANUAL
Fig. 195
Fig. 196
Fig. 197
