33
8. CREATING A CHARGING CABLE
If not present yet, produce a suitable charging cable. For this, a prepared cable (9) with two
4 mm banana plugs (10) on the one side and open cable ends (11) on the other side is
included with the charger.

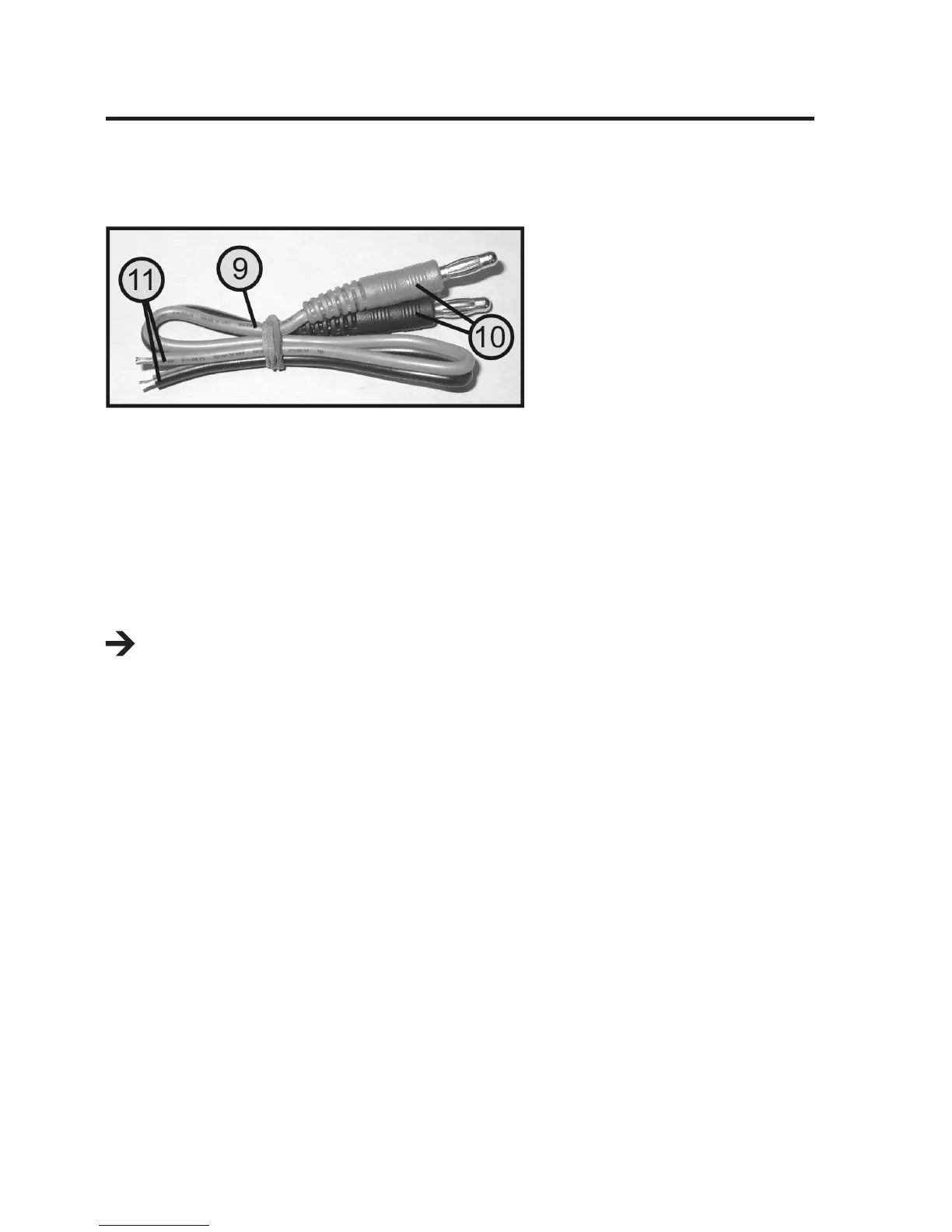

Figure 2
Solder suitable plug connectors protected against polarity reversal to the open cable ends.
They must t the high current plug connectors at the rechargeable battery. Ensure that the
contacts of the plug connector to the cable are secure, and the polarity correct:
Red = plus (+)
Black = minus (-)
The solder connections must be insulated with shrink hoses.
The charging cable (see gure 2, item 9) is only displayed coiled for photo-technical
reasons. Only charge with the cable uncoiled.
