Instruments and Controls
This chapter describes the instruments, panels and controls Volvo Penta sells for your engine.
If you would like to complement your instrumentation, or if your boat is equipped with instruments not described
here, we ask that you contact your Volvo Penta dealer.

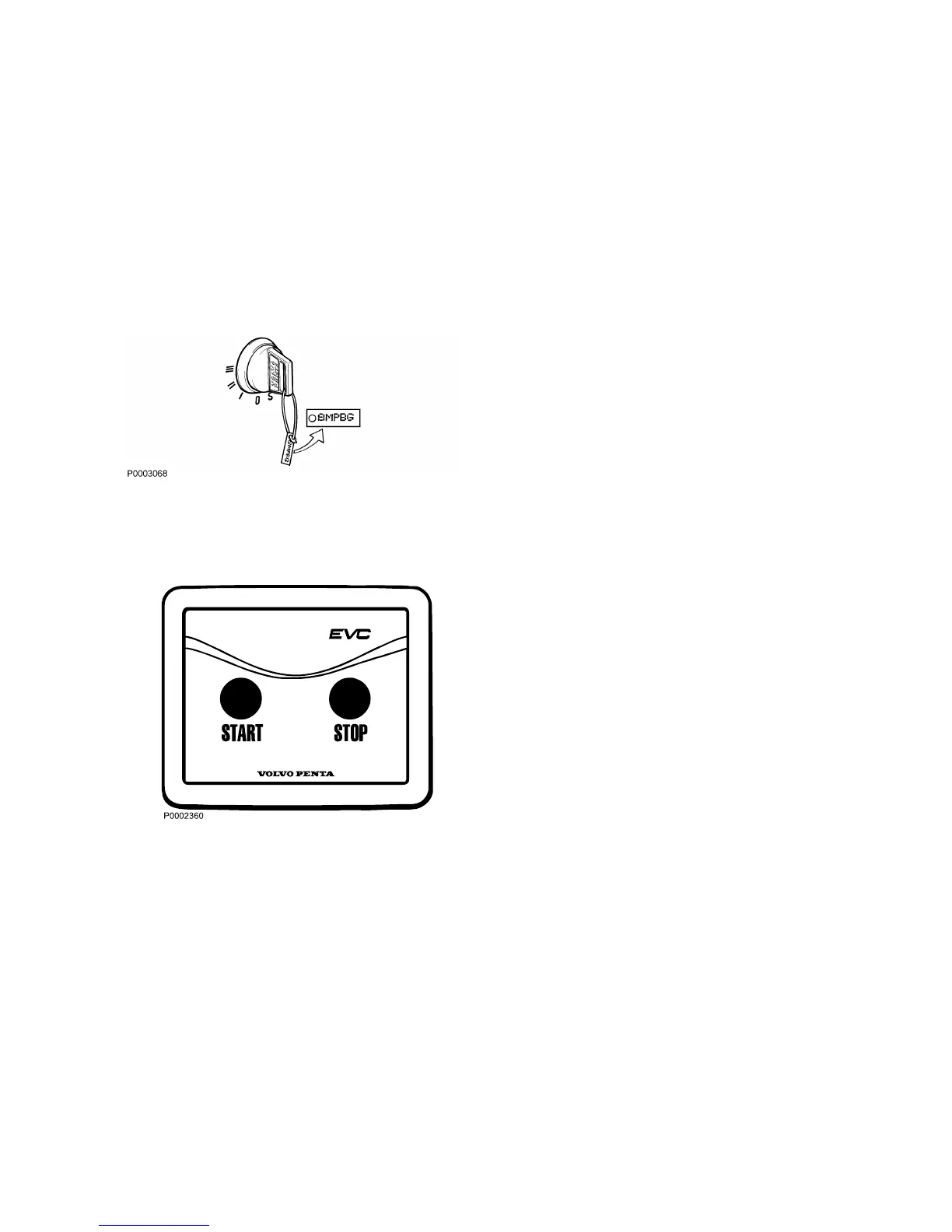

Ignition Lock
The start keys are supplied with a plate bearing the
start code to be used when ordering spare keys. Keep
the code beyond the reach of unauthorized people.
S = Stop position.
0 = The key can be inserted or removed.
I = Operating position. System voltage is connected.
II = Not used.
III = Start position. Start motor is engaged.
Read the starting instructions in chapter Start-
ing page 28 to ensure you use the correct start
procedure.
Start/Stop Panel
The start/stop panel is used for starting and stopping
the engine.
To start the engine it is necessary for the start key at
the main station to be in the ”I” operating position. The
engine can only be stopped from an activated control
panel.
Read the starting instructions in chapter Start-
ing page 28 to ensure you use the correct start
procedure.
7748887 04-2008 11
