Maintenance
This chapter contains general technical information and instructions on how the prescribed maintenance items
must be carried out. Read through the instructions carefully before starting work. The times when maintenance
items must be carried are indicated in the Maintenance Schedule page 57.
Read through the safety precautions for maintenance and service in the Safety Information page 4 chapter before
work on the engine is begun.
WARNING!
Care and maintenance work should be done with the engine stopped unless otherwise specified. Stop the engine
before opening or removing the engine hatch/hood. Make it impossible to start the engine by removing the start
key and cutting the system voltage with the main switches.

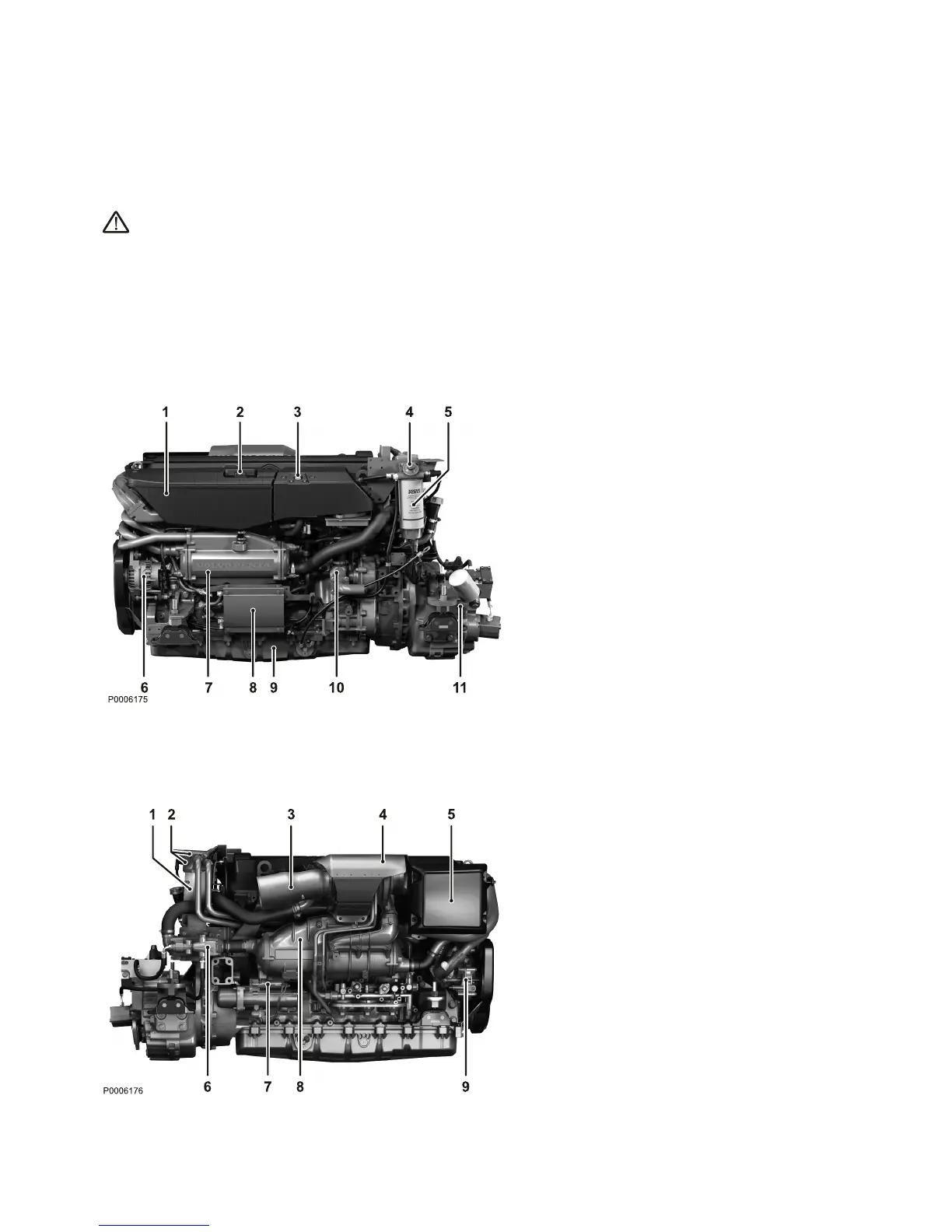

Orientation
D11-670 ZF305
1 Expansion tank
2 Coolant filler cap
3 Auxiliary stop
4 Fuel feed pump (hand pump)
5 Fine fuel filter with watertrap
6 Alternator
7 Heat exchanger
8 Control unit
9 Oil sump
10 Seawater pump
11 Reverse gear ZF305A-E
D11-670 ZF305
1 By-pass filter for lubrication oil
2 Lubrication oil filters
3 Water-cooled exhaust outlet
4 Turbocharger
5 Air filter
6 Oil cooler, reverse gear
7 Starter motor
8 Charge air cooler
9 Coolant pump
60 7748887 04-2008
