Volvo Penta D2-55 Workshop Manual

25
Group 21 Short block
Short block, disassembly
Special tools: 885 510, 885820, 885822
Empty the oil and water from the engine.
Lift the engine with a suitable lifting device. Installing
the engine fixture, please refer to “Engine fixture, fixing”.

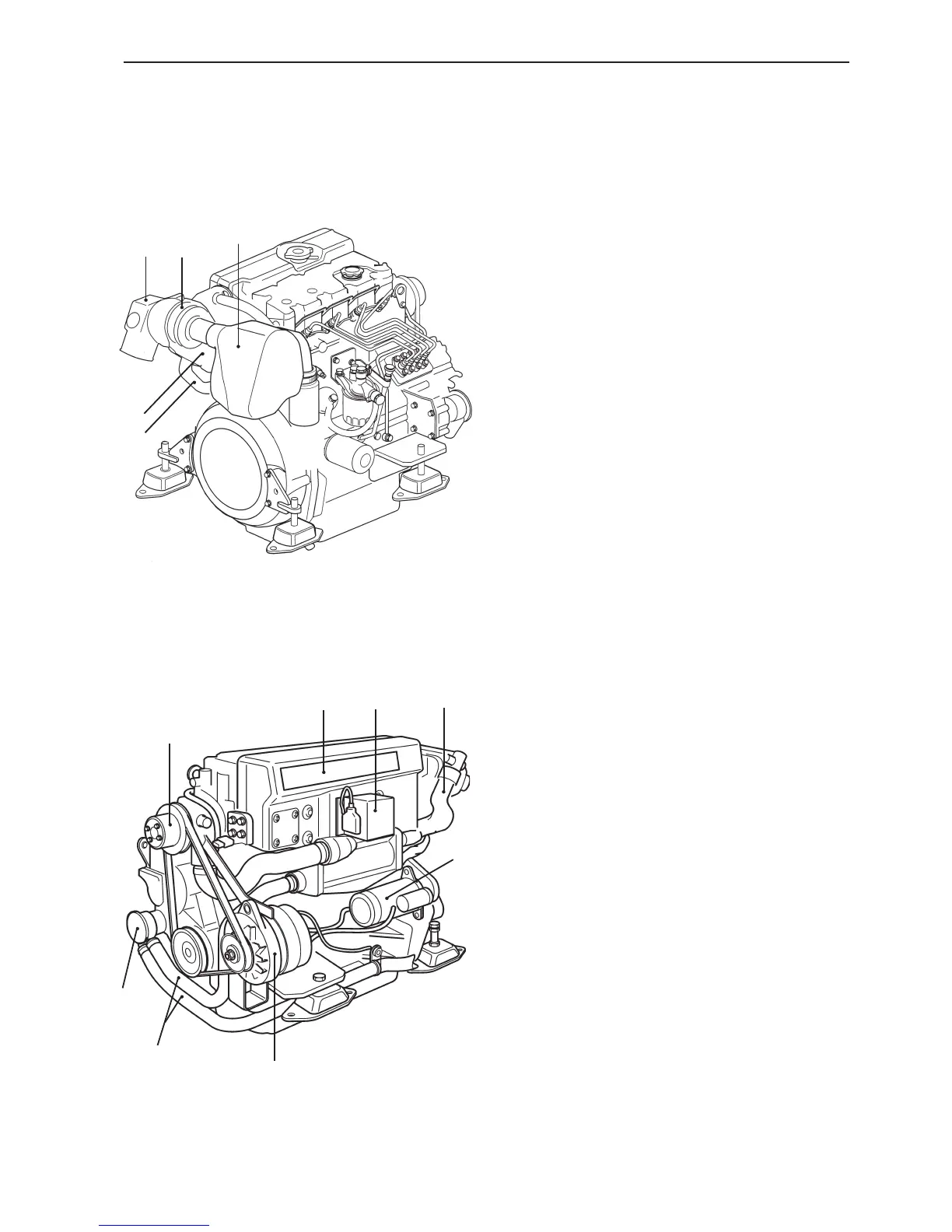

1. Remove the exhaust bend (1).
2. Remove the induction silencer (2).
3. Remove the turbo (3) with associated oil return
pipe (only D2-75).
4. Remove the electronics box (4) complete with ca-
bling.
5. Remove the starter motor (5) and alternator (6)
and front left engine mounting.
6. Remove the coolant hoses (7), heat exchanger
(8), sea water pump (9) and circulation pump (10).
7. Remove the charge air cooler (11) and oil pipe to
the turbo (only D2-75).
6
2
3
1
5
4
9
11
10
8
7
7
7
