19

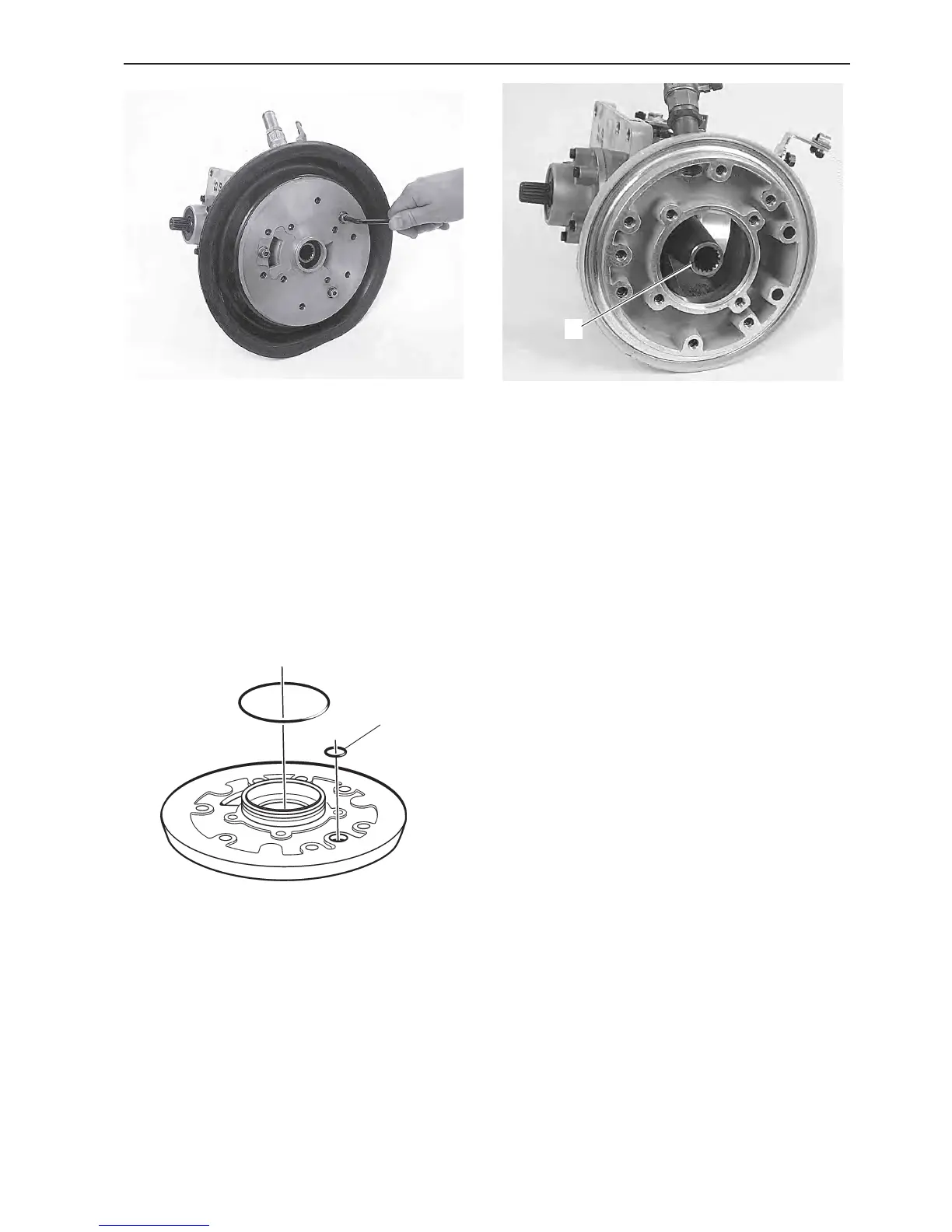

Disassembly - upper and lower gear housings, sailboat drive
5. Models 120S-B, -C, -D, -E
Remove the adapter plate and remove the rubber
sleeve.
Prize carefully. Use a tool with no sharp edges.
Remove and scrap the O-ring on the sleeve of the
adapter plate.
Repair of the lower gear housing, please refer to page
61.
Reverse installed drive (180°)
Remove and scrap the O-ring (1) on the adapter plate.
1
1
6.
Remove the slipping clutch (1).
Check that the clutch is not damaged.
20
22
