Repair - MS2 reverse gear and upper gear housing, sailboat drive

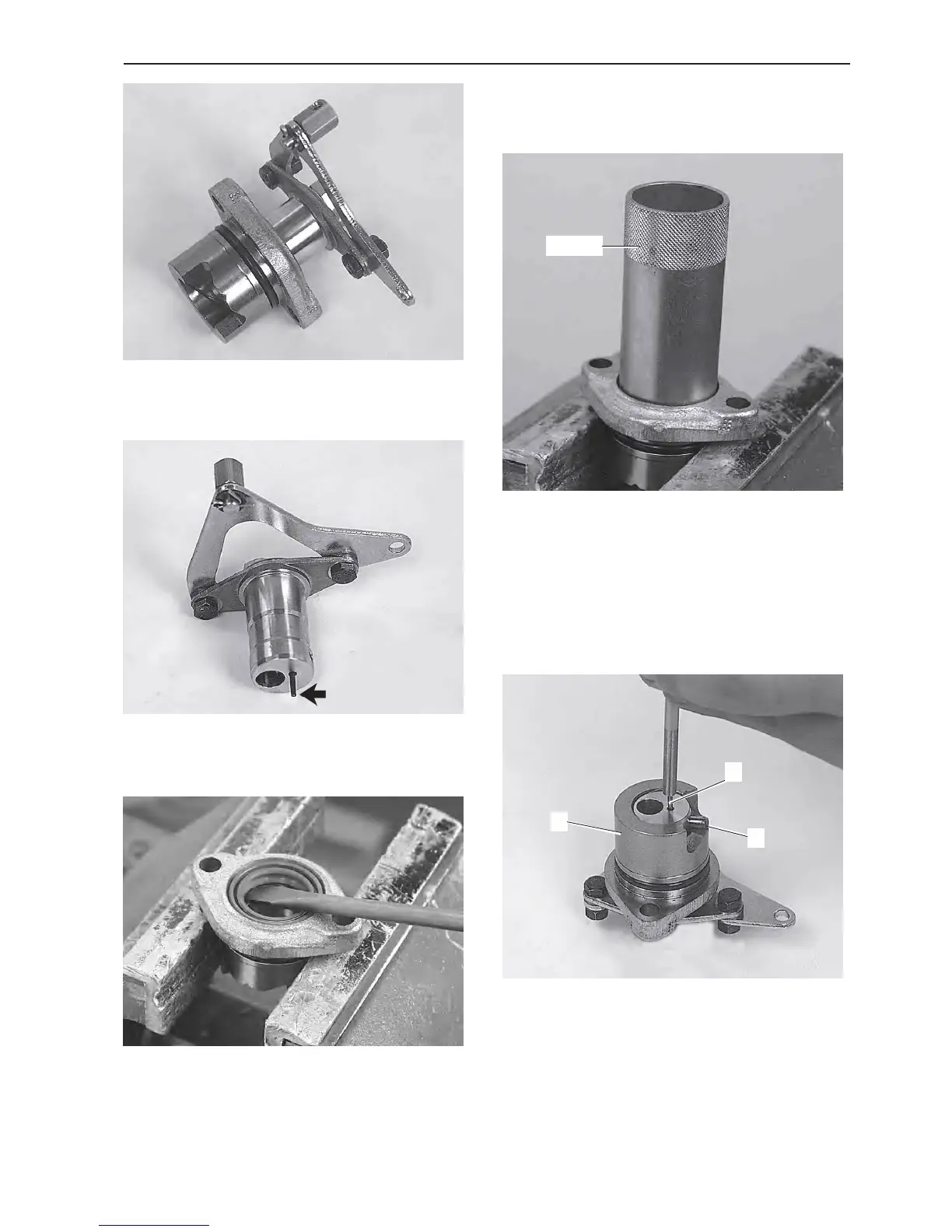

5. Pull the eccentric piston out.
6. Shake the pin out of the eccentric piston.
7. Remove the seal ring with a screwdriver. Clean all
components of the gear shift mechanism and check
for wear. Change components as necessary.
Gear shift mechanism,
assembly
8. Oil all components before assembly starts. Install
the seal ring. Align the side with the spring inwards.
Use tool no. 884679 or a pipe whose diameter is
slightly smaller than the outer diameter of the seal
ring.
9. Install the eccentric piston (1) and press the pin (2)
in. Lock it with the spring pin (3).
884679
1
2
3
