Repair - MS2 reverse gear and upper gear housing, sailboat drive
Upper bearing housing,
disassembly

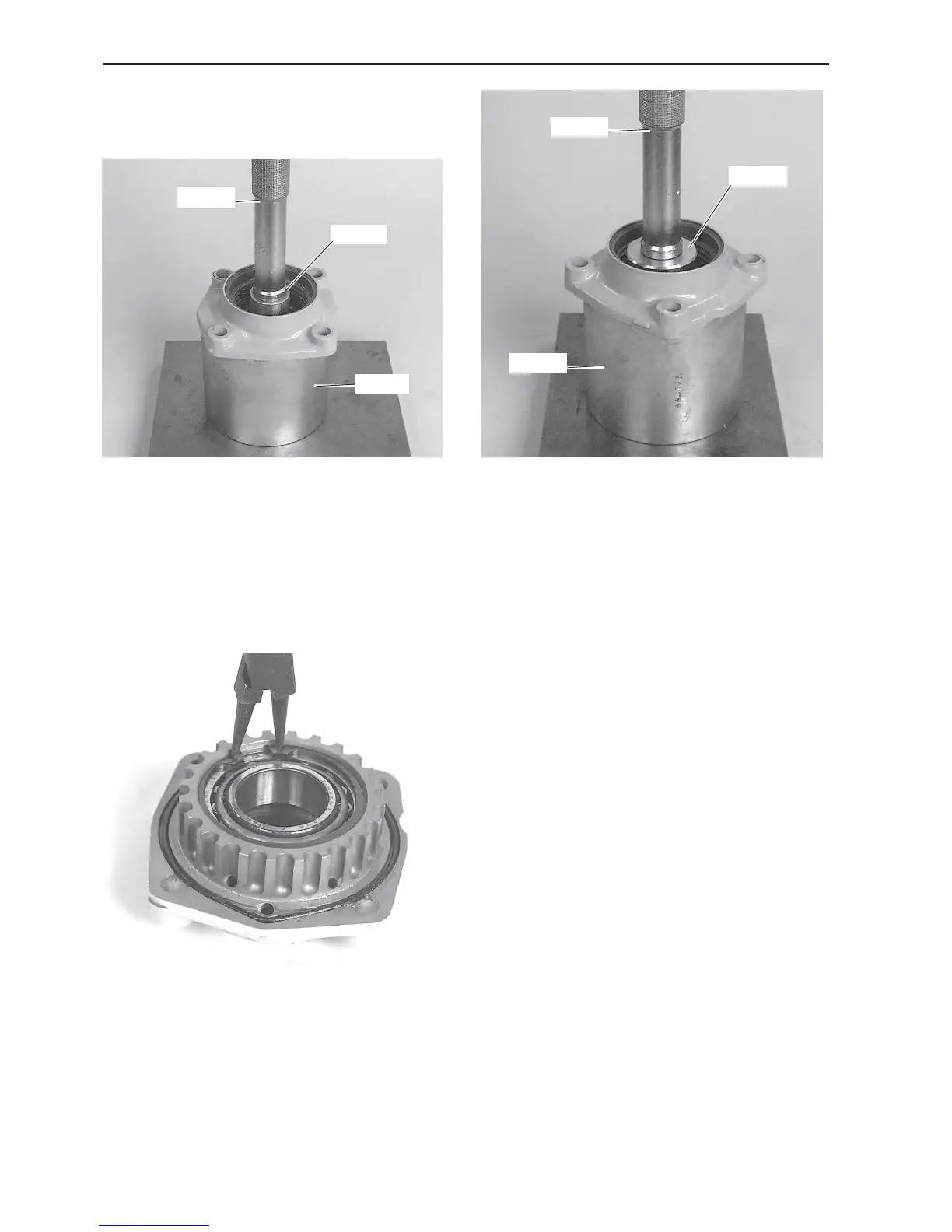

43.
Put the bearing housing in tool no.
884723
and
press the gear wheel out. Use tool no.
884733
and
shaft
9991801
. Save any shims.
44.
Remove the circlip, using circlip pliers.
45.
Put the bearing housing in tool no.
884723
and
press roller bearing out of the bearing housing. Use
tool no.
884728
and shaft
9991801
.
884723
884733
9991801
884723
884728
9991801
