28
Repair - MS2 reverse gear and upper gear housing, sailboat drive
884729
9991801
884731
884732
1

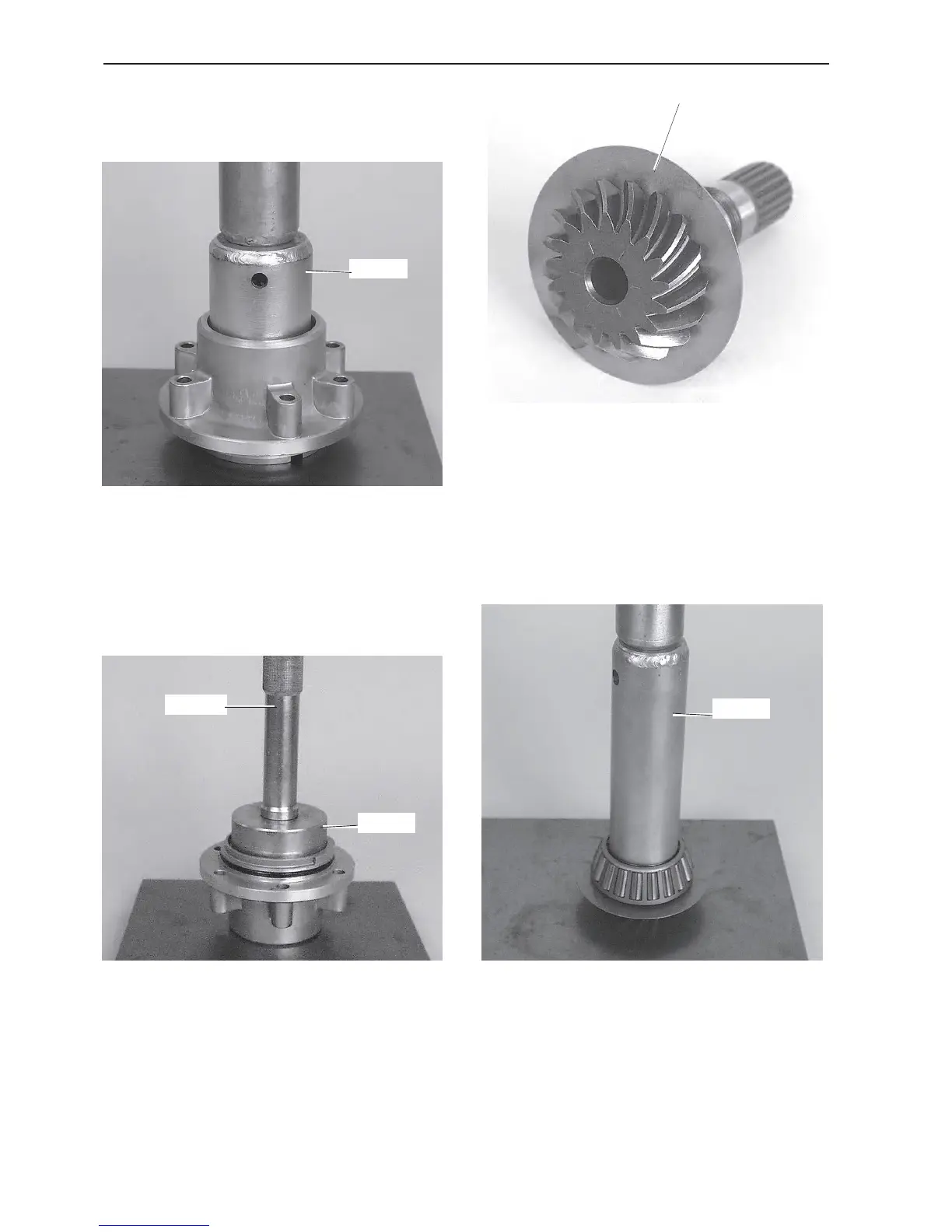

35.
Press the small outer bearing race into the bearing
housing. Use tool no.
884732
.
36.
Press the large outer bearing race into the bearing
housing. Use tool no.
884731
and shaft
9991801
.
Input bearing housing,
installation.
37.
Put the metal sheet (1) on the drive shaft.
38.
Press the large roller bearing onto the drive shaft.
Use tool no.
884729
.
29
31
