Repair - MS2 reverse gear and upper gear housing, sailboat drive
Reverse gear/upper gear
housing, disassembly

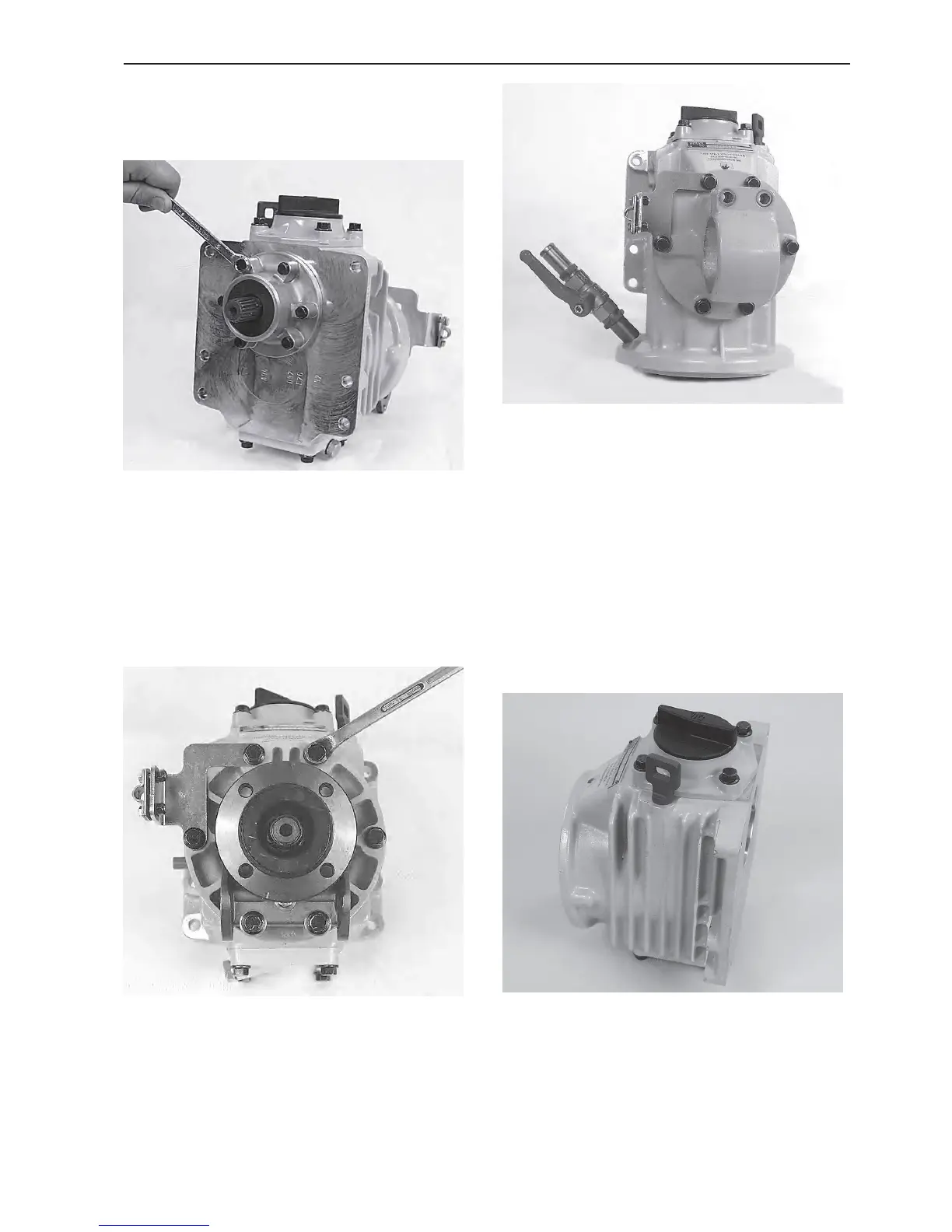

14. Disassemble the double bearing seal housing, 6
screws.
NOTE! Tap carefully with a plastic-faced mallet etc.
Do not use a screwdriver to prize between the housing
and the bearing seal housing. This can damage the
sealing surface.
Save the shims.
15. Reverse gear MS2.
Disassemble the rear bearing housing. 6 screws. Also
tap carefully here with a plastic-faced mallet, until the
bearing housing comes away from the reverse gear.
Save the shims.
16. Drive, 120S, 120S-B, -C, -D, -E
Remove the cooling water valve.
Remove the gear shift cable holder and the rear cover
with rubber mounting.
Change the O-ring on the cover.
17. Unscrew the oil filler cap and remove the dipstick
and outer casing.
Model 120S
Also remove the throttle control bracket. The two front
screws on the bearing cover are removed later.
