3-76 BA 1404 en – Edition 2.7 * * 1404b340.fm
Operation
5 Release the stabilizer-blade lever and foot-operated push button E.
➥ The quickhitch closes.
➥ Check pin F must be fully retracted.
6 Press switch D to position 2.
The quickhitch is disabled and the buzzer does not sound any longer.
Shovel bucket operation
With some restrictions, Wacker Neuson backhoe buckets can also be used for shovel
bucket operation.
Danger!
Do not tilt the bucket fully back in shovel bucket operation (see Fig. 158),
otherwise the bucket base can touch and damage the stick.
Connections for auxiliary hydraulics
Notice!
Follow the instructions in the Operator’s Manual of the attachment manufacturer
for connecting the auxiliary hydraulics to attachments.

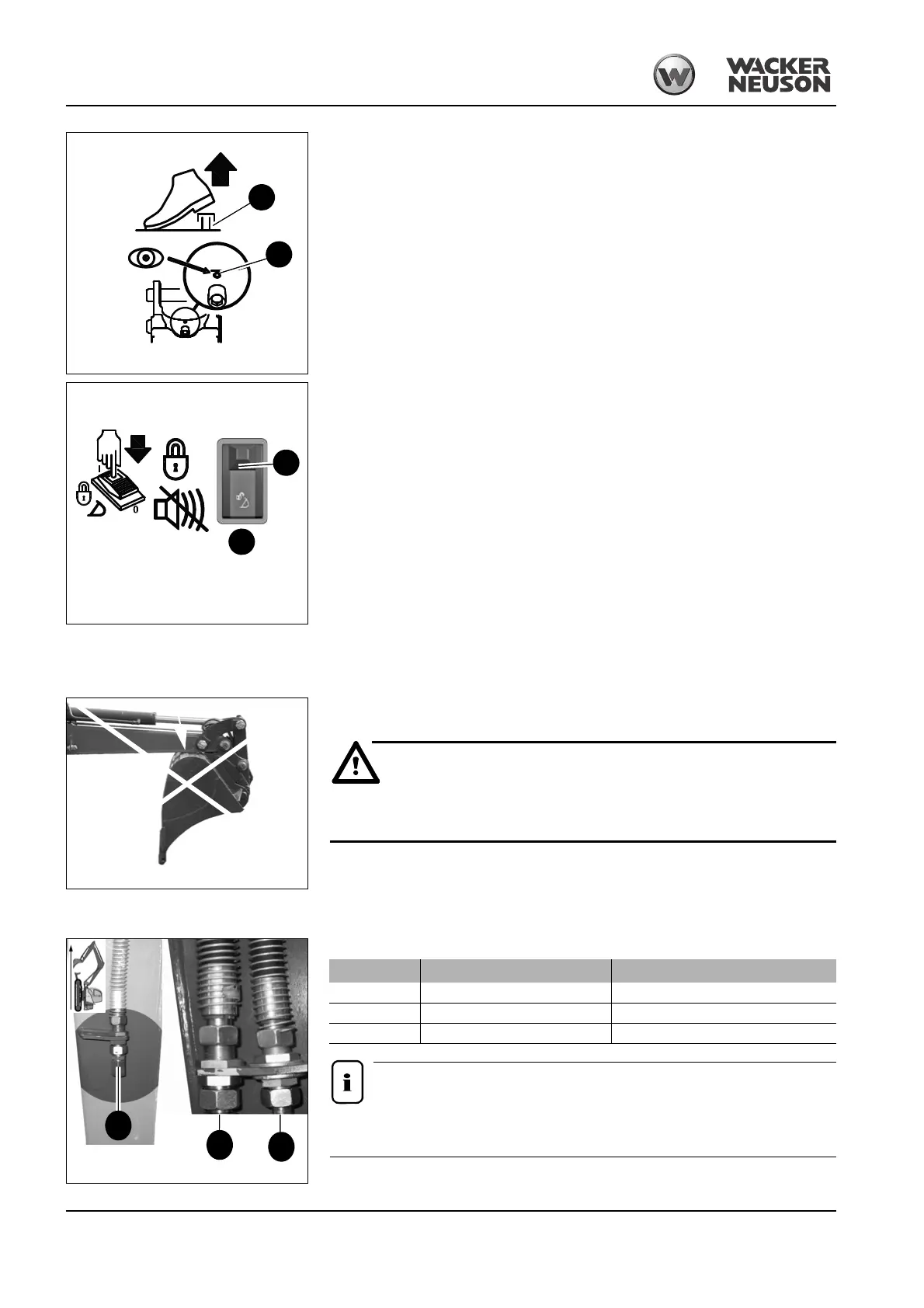

Abb. 156:
E
F
Abb. 157:
D
2
Abb. 158: Possible damage
Abb. 159: Connections for auxiliary hydraulics
V
U
T
Connection Stick (left) Stick (right)
T ☞ Pressure line
U ☞ Large return line
V ☞ Pressure line
