Operation
☞ Raise control lever base 3 to position C with handle B
➥ A torsion spring keeps the control lever base in the top position.
☞ Fold control lever base 3 down to position D once you are in the cab
➥ A torsion spring keeps the control lever base in the lower position.
3.37 Armrest adjustment (up to serial no. AH02764)
Ensure that the armrest does not touch the control lever as you fold it up.
☞ Adjust the armrest to prevent it from touching the control lever.
☞ Turn tubular turnbuckle nut A to the left B.
➥ The armrest can be lowered.
☞ Turn nut A to the right C.
➥ The armrest can be raised.

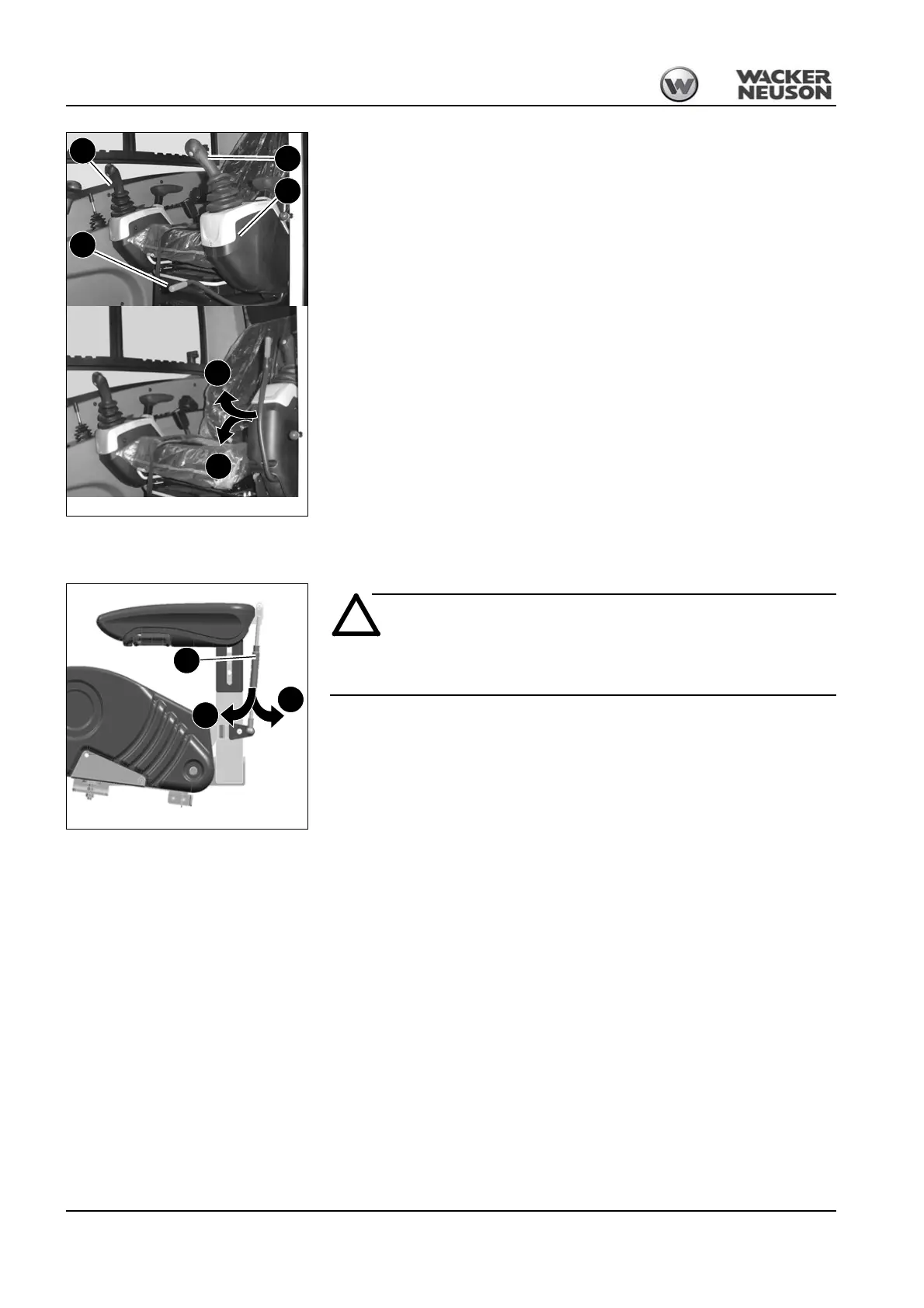

Fig. 140: Control lever base
C
2
1
3
B
D
Fig. 141: Left-hand armrest
B
C
A
