3-74 BA 50Z3/6003 en – Edition 4.3 * * 5003b330.fm
Operation
Protective FOPS structure/small screen – category I (option)
Danger of crushing! Falling objects.
Causes severe injury or death.
☞ Install a protective FOPS structure in areas with danger of falling objects.
☞ Machine operation is prohibited without a protective FOPS structure.
The protective FOPS structure corresponds to category I according to ISO
10262:1998.
• The operator must ensure that the danger situation is evaluated and that the
national regulations are observed.
• The operator must ensure that only work is performed that does not require any
higher protection.
• Accidents cannot be fully avoided despite equipping a machine with protective
structures.
Installing
1 Stop and park the machine. Stop the engine.
2 A minimum 2 persons are required for installing/removing.
3 Tighten screws A (M10) and lock nuts on the left and right to 45 Nm (33 ft.lbs.).
4 Tighten screws B (M12) and lock nuts on the left and right to 87 Nm (64 ft.lbs.).

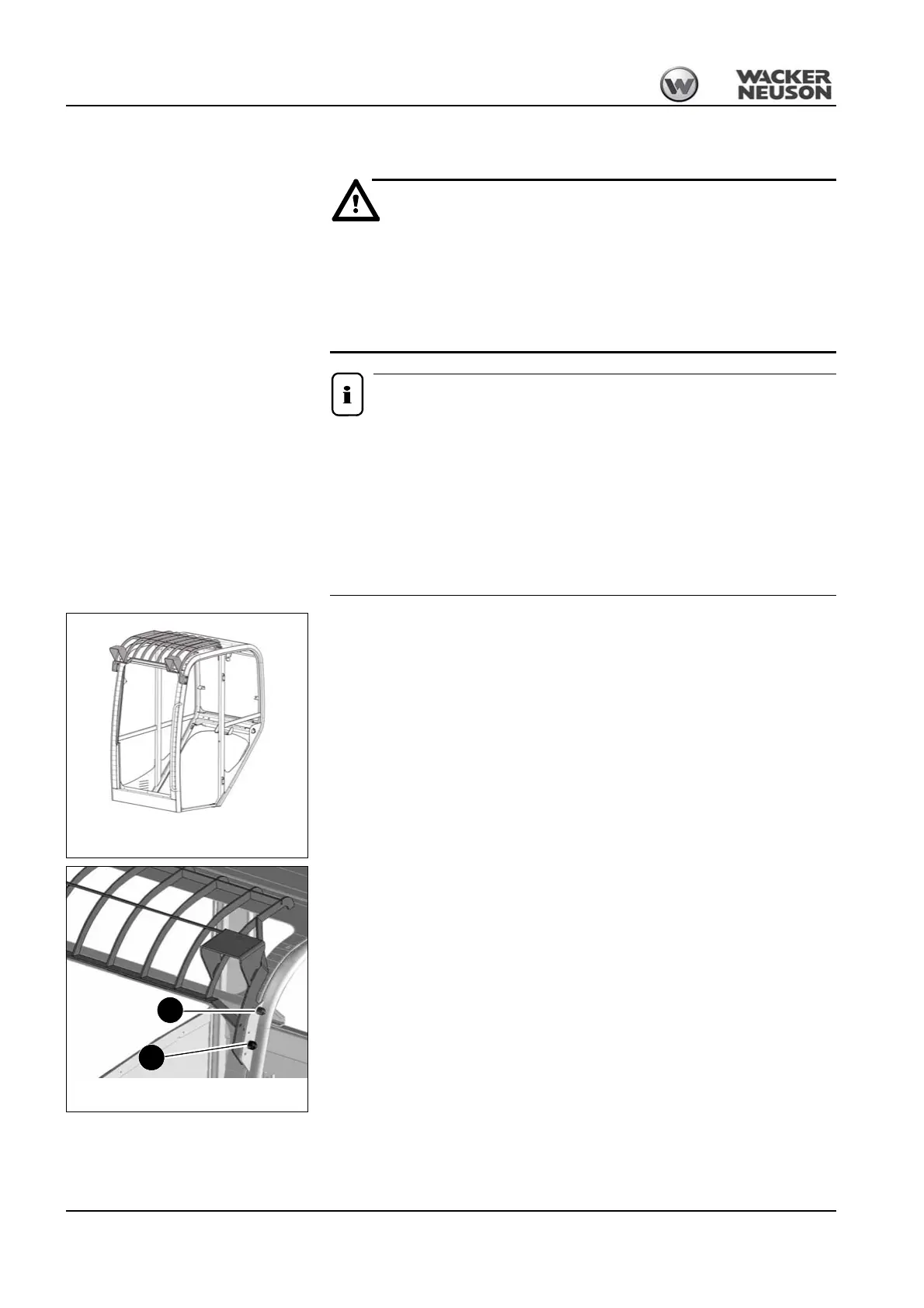

Fig. 154: Protective FOPS structure category I (symbolic
representation)
Fig. 155: Protective FOPS structure category I (assembly)
B
A
