Operation
Weight adjustment
Sit down on the seat.
To adjust to a higher weight:
☞ Turn lever A to the left.
To adjust to a lower weight:
☞ Turn lever A to the right.
Horizontal adjustment
☞ Sit down on the seat.
☞ Pull lever B upward and at the same time.
☞ Move the seat forward or backward.
☞ The lever must engage in the required position.
Seat depth adjustment
☞ Sit down on the seat.
☞ Pull lever C upward and at the same time.
☞ Move the seat surface forward or backward.
☞ The lever must engage in the required position.
Backrest adjustment
☞ Sit down on the seat.
☞ Adjust by pulling lever D in the direction of the arrow.
☞ Lean back to push the backrest into the required position.
☞ The lever must engage in the required position.

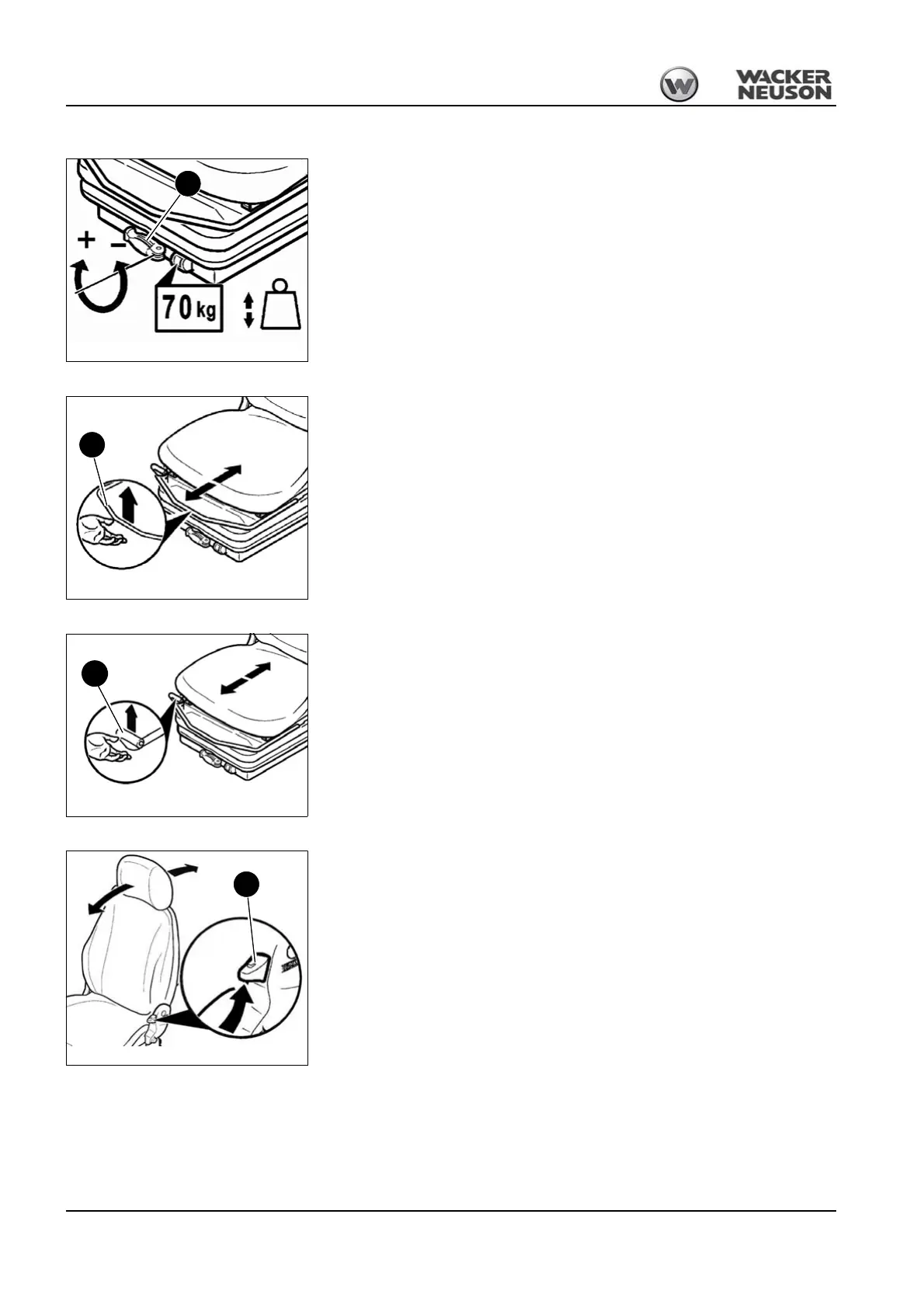

Fig. 89: Weight adjustment
A
Fig. 90: Horizontal adjustment
B
Fig. 91: Horizontal adjustment
C
Fig. 92: Backrest adjustment
D
