Maintenance
5.9 Diesel particulate filter (option)

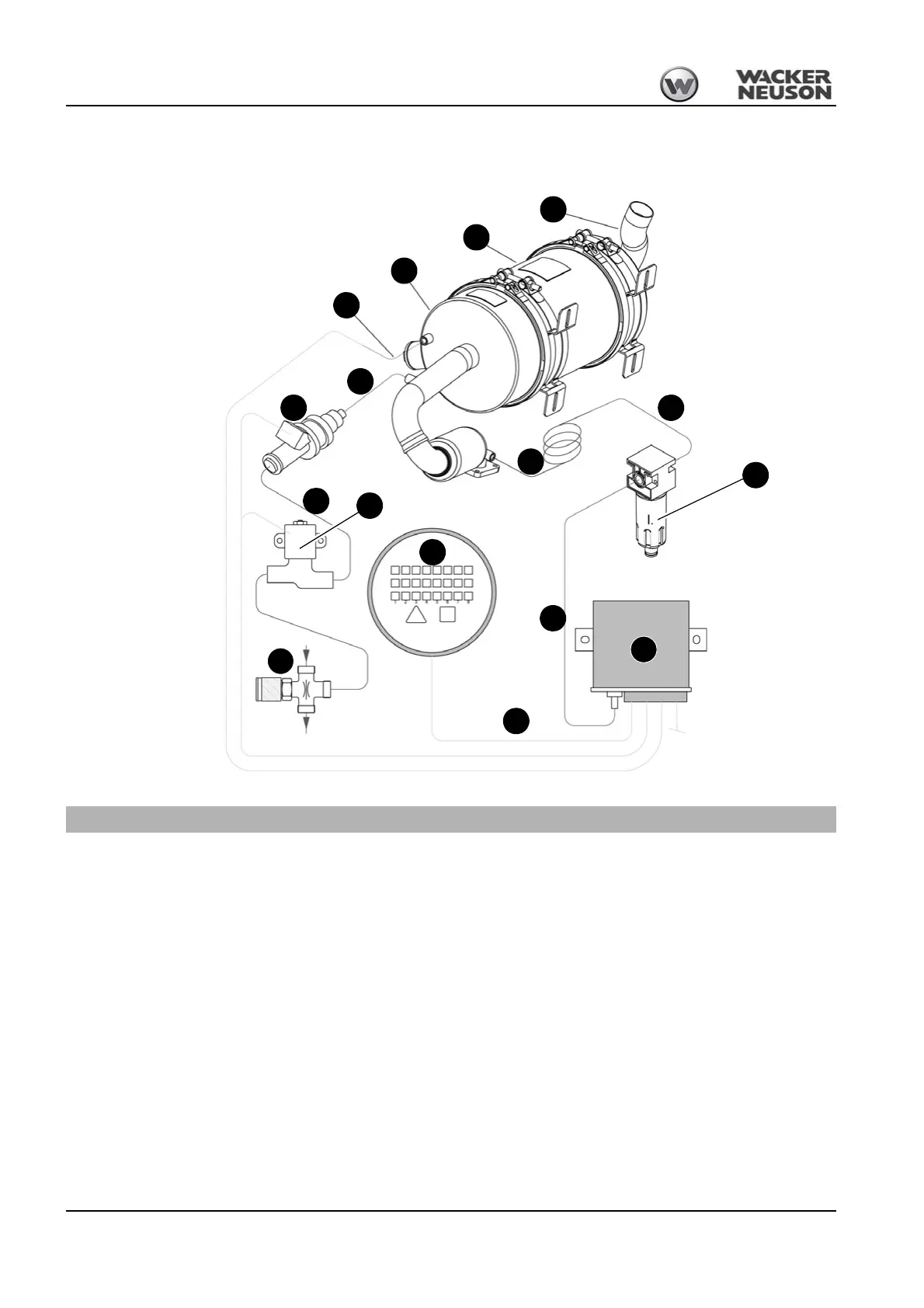

Main components of diesel particulate filter system
1
2
3
11
8
7
5
4
6
6
15
9
12
14
13
10
Pos. Designation
1 Diesel particulate filter........................................................................................................................................................5-17
2 Input cover with catalytic converter and input pipe (incl. flexible exhaust pipe).................................................................5-17
3 Output cover (incl. exhaust pipe)
4 Temperature sensor
5 Pressure line
6 Pressure hose
7 Injection nozzle ..................................................................................................................................................................5-17
8 Injection line
9 Stop cock
10 Throttle screw connection
11 Diesel lines
12 Condensate trap ................................................................................................................................................................5-17
13 Control box.........................................................................................................................................................................5-17
14 Display ...............................................................................................................................................................................5-19
15 Wiring
