BA 50Z3/6003 en – Edition 4.3 * 5003b530.fm 5-45
Maintenance
☞ Apply grease to lubrication points 4 on the boom.
☞ Apply grease to lubrication points 5 on the stick.
☞ Apply grease to lubrication points 5 on the stick.
Joint rod lubrication point
☞ Apply grease to lubrication point 6 on the joint rod.
Lubrication points on the stabilizer blade and stabilizer blade ram
☞ Apply grease to lubrication points 7 on the stabilizer blade ram.
☞ Apply grease to lubrication points 8 (on either side) on the stabilizer blade.
☞ Apply grease to lubrication points 9 on the stabilizer blade ram.

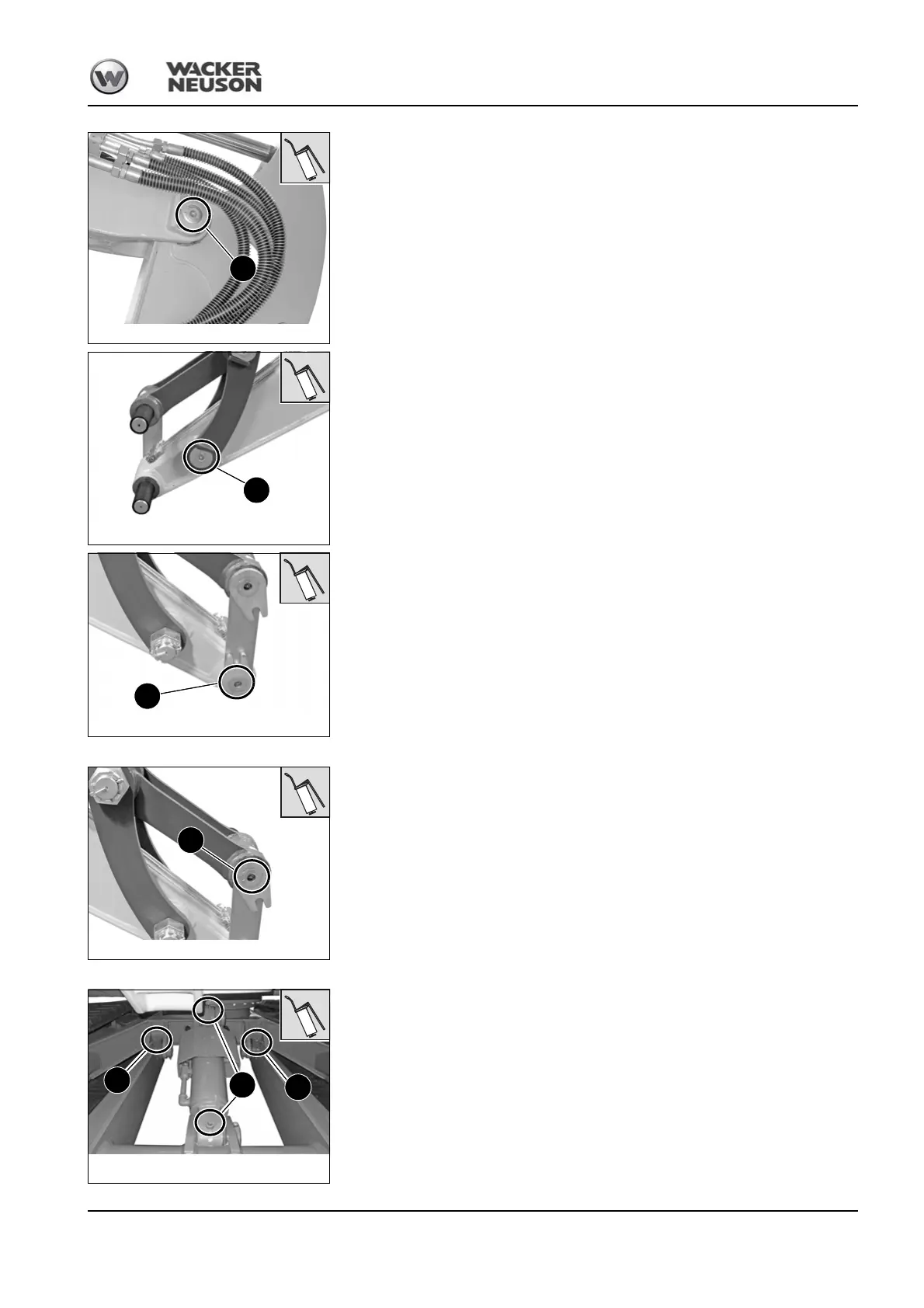

Fig. 309: Boom lubrication points
4
Fig. 310: Lubrication points on the stick
5
Fig. 311: Lubrication points on the stick
5
Fig. 312: Lubrication point on the joint rod
6
Fig. 313: Lubrication points on the stabilizer blade and ram
75Z3
8
8
7
