Wacker Neuson DS 70 User Manual

Ramming System Rammer Repair
104 wc_tx001547gb.fm
5.6 Protective Pipe

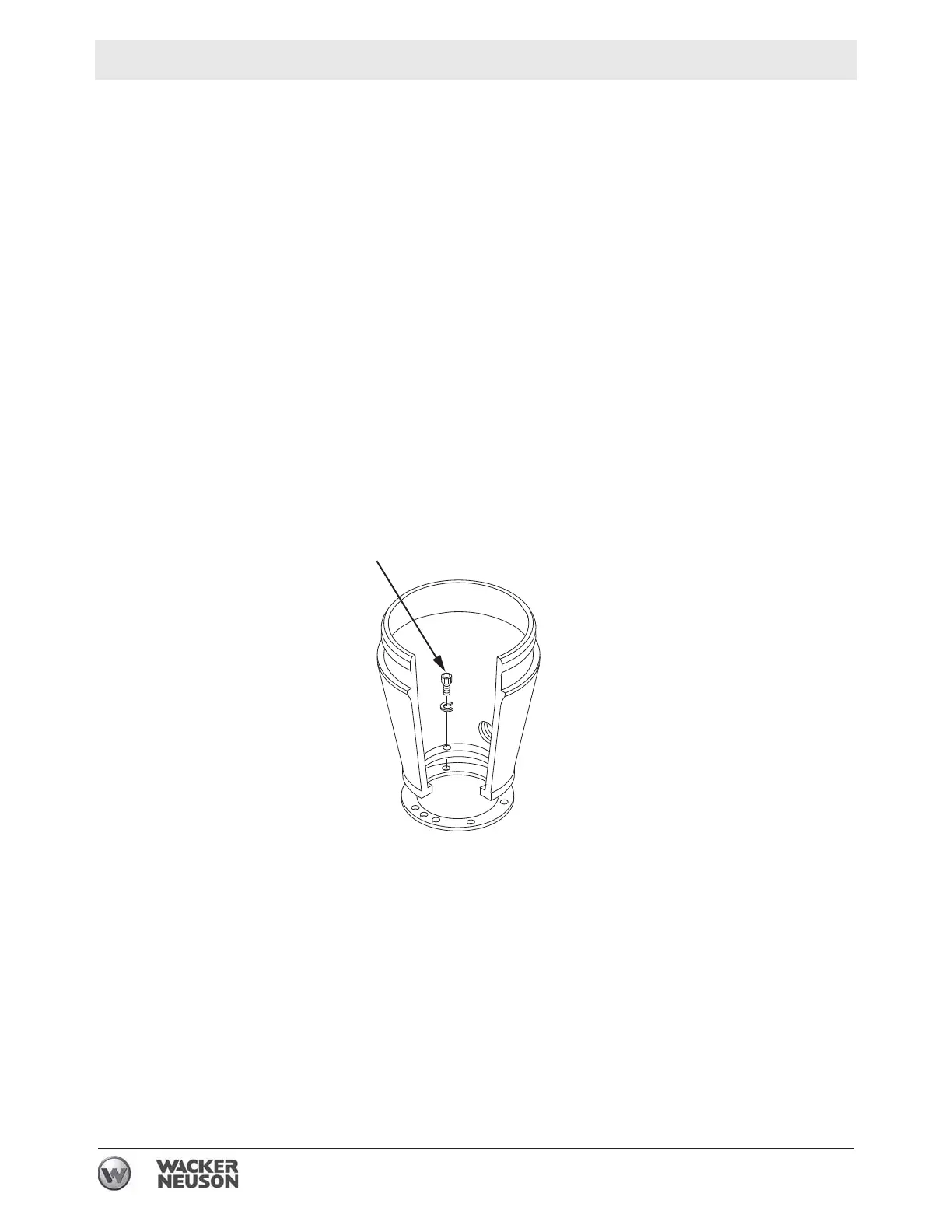

See Graphic: wc_gr001330rm
Recommended Tools
Ratchet Wrench
Torque Wrench
Extension
Hex Socket: 6 mm
Loctite 243 (Blue)
If the protective pipe becomes loose or damaged, it must be replaced
on the spring cylinder.
5.6.1 Remove the bellows following the procedures in section Bellows.
5.6.2 Remove the socket head cap screws (c). To reinstall the protective
pipe, apply Loctite 243 and torque the screws to 24 Nm (18 ft.lbs.).
5.6.3 Reassemble the rammer following the previous procedures.
c
wc_
g
r001330rm
