4.5 Replacing the Stop Switch (2-stroke models, 2010 and later)
Requirements
• Machine shut down and cool
• Torque wrench
Removal
Perform the procedure below to remove the stop switch.
4.5.1 Remove the silencing cover. See topic Replacing the Silencing Cover.
4.5.2 Remove the throttle control. See topic Replacing the Throttle Control.

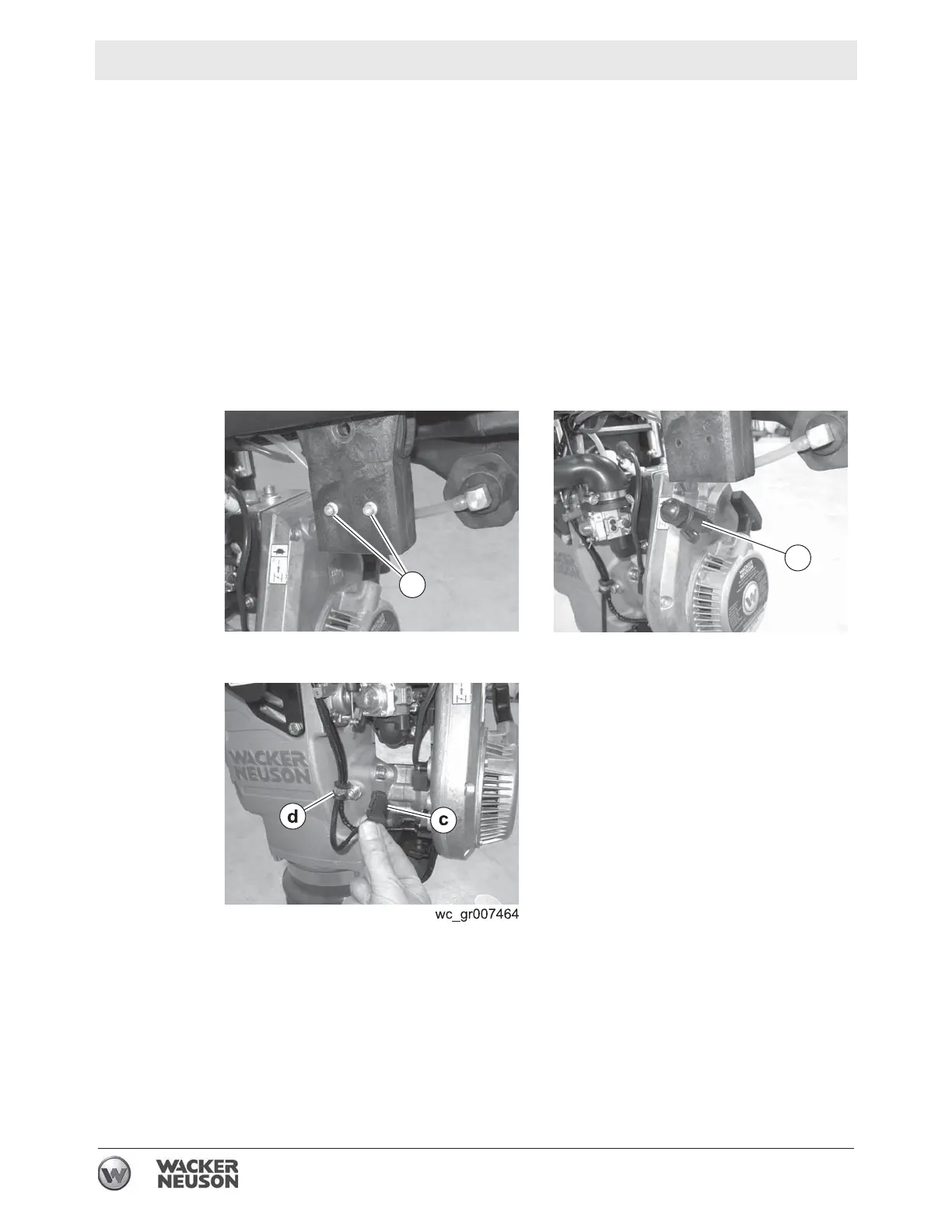

4.5.3 Remove the two screws
(a) the hold the fuel valve to the throttle
control bracket. Allow the fuel valve (b) to hang by the fuel hoses.
4.5.4 Disconnect the stop switch wiring
(c) from the engine.
4.5.5 Remove the clamp
(d).
This procedure continues on the next page.
wc_gr007463
a
wc_gr007462
b
To Next Page
