4.19 Replacing the Walbro Carburetor (auto-release choke models)

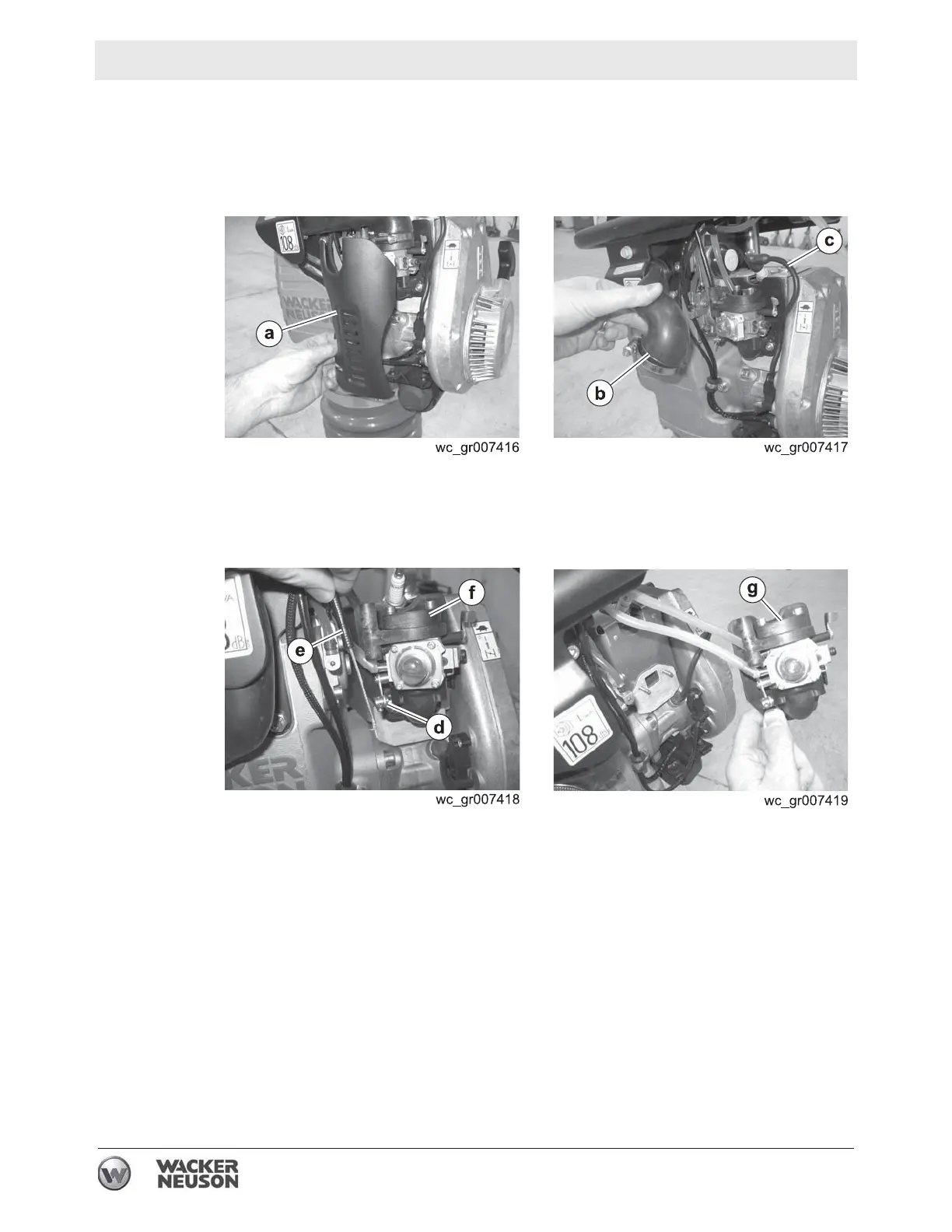

Removal
4.19.1 Stop the machine and allow it to cool.
4.19.2 Remove the carburetor guard (a).
4.19.3 Loosen the hose clamp and remove the air duct
(b).
4.19.4 Disconnect the ignition wire (c) from the spark plug.
4.19.5 Loosen the clamp
(d) and remove the throttle cable (e) from the
carburetor adapter (f).
4.19.6 Remove the two nuts and washers and remove the carburetor
assembly
(g) from the machine.
This procedure continues on the next page.
