Ramming System Rammer Repair
92 wc_tx001547gb.fm
5.2 Replacing the Ramming Shoe
Requirements
• Torque wrench
• Lifting device capable of lifting the machine
Removal
Perform the procedure below to remove the shoe.
5.2.1 Support the machine with a lifting device capable of lifting the weight
of the machine. See chapter Technical Data for weights.

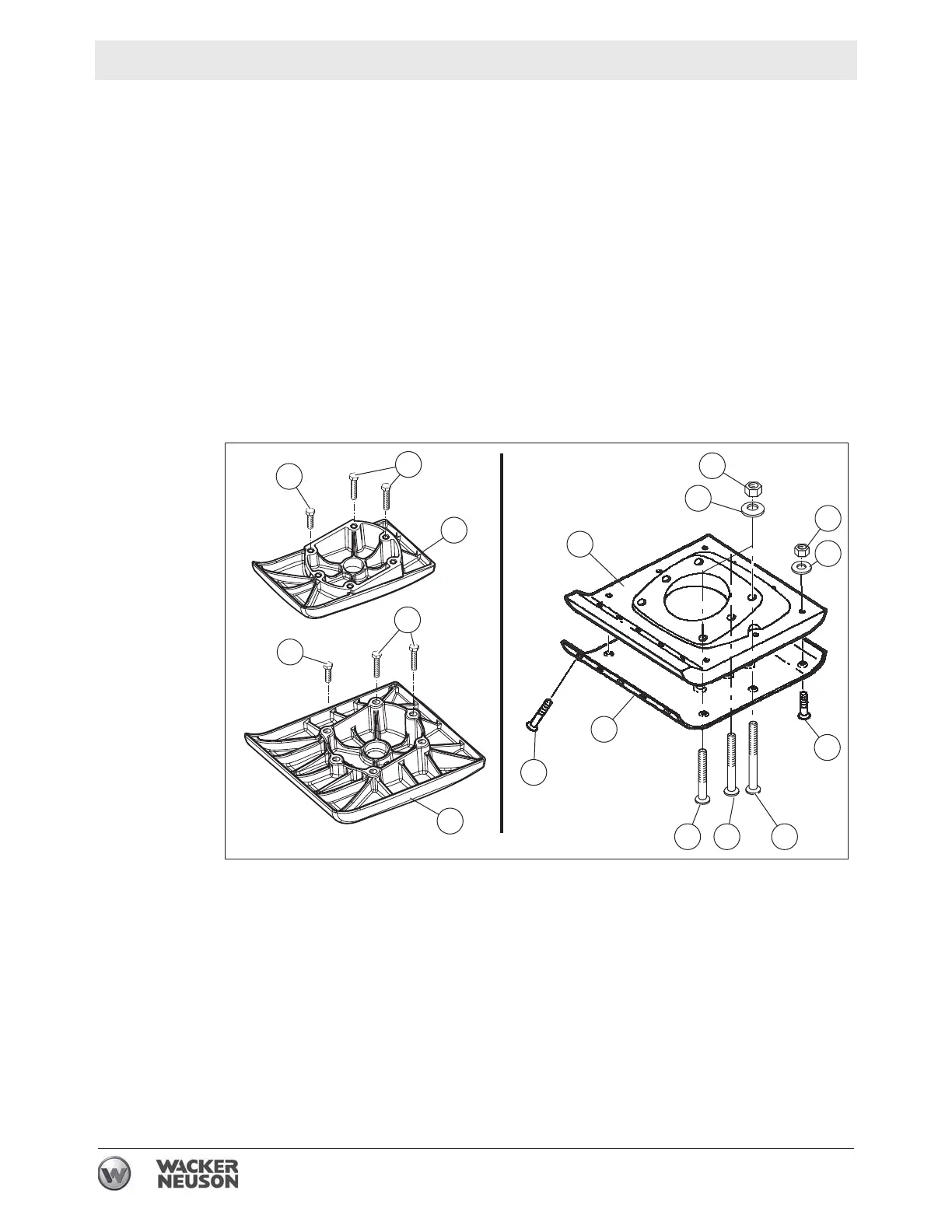

5.2.2 On machines with cast iron shoes, remove the hex head screws (a
and b) that hold the shoe (c) to the machine. For all others, remove
the lock nuts (d) and washers (e) that hold the ramming shoe (f) and
the bottom plate
(g) to the machine.
5.2.3 Raise the machine off the shoe. Position the machine in a secure
place.
5.2.4 Remove the plow bolts
(m), (n), and (o).
5.2.5 Remove the plow bolts
(i and j), lockwashers (k), and lock nuts (l).
5.2.6 Separate the shoe (g) from the bottom plate (f).
wc_gr007519
a
d
e
k
l
f
g
i
j
c
c
b
a
b
m n o
