Wacker Neuson G 2.1A User Manual

4A-3
50 HZ PORTABLE GENERATORS G2.1A/G2.1AE 4A
230V 230V

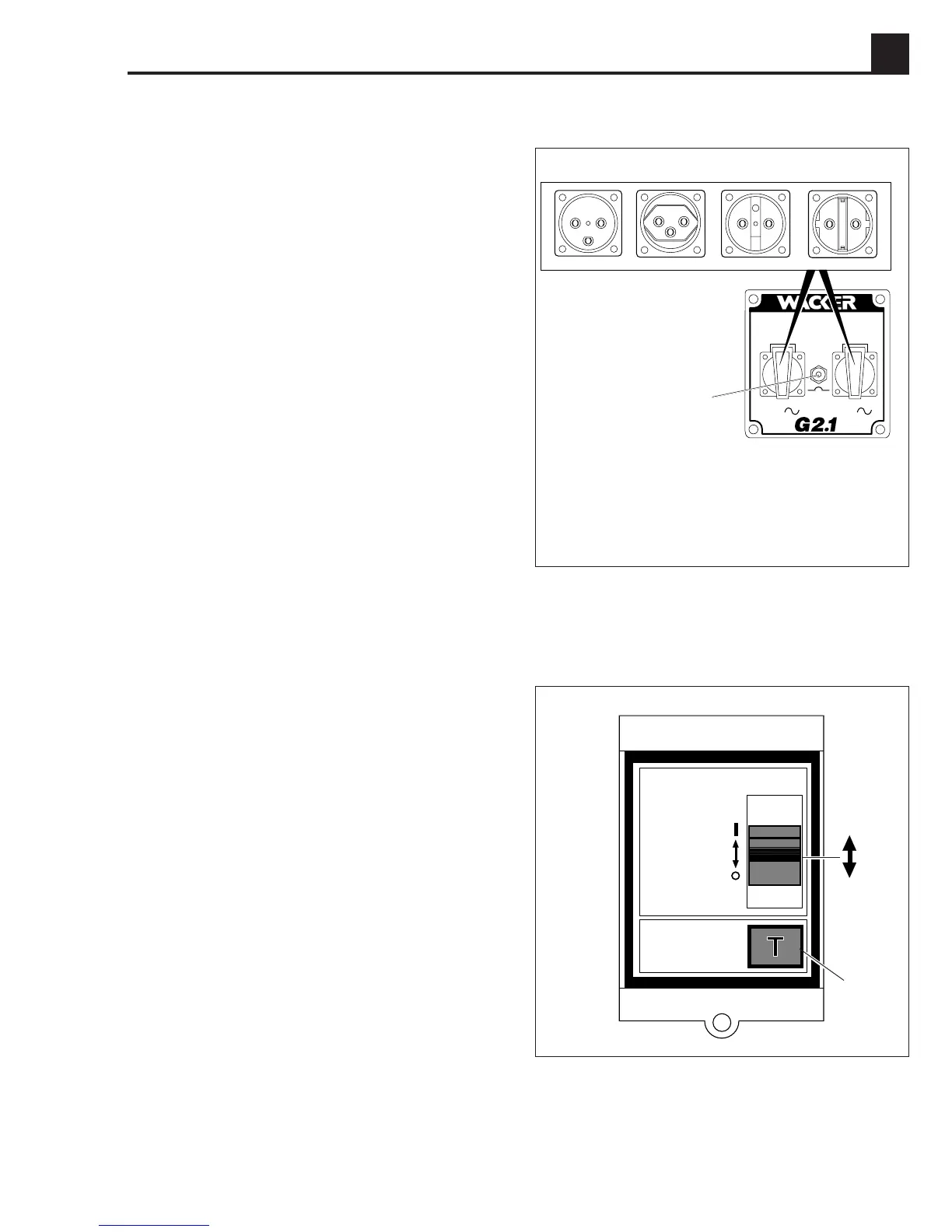

4.6 Control Panel
The generator is protected by a 10 amp circuit breaker
(a) located on the control panel.
The circuit breaker protects the generator from severe
overloads or short circuits. If the circuit breaker opens,
turn the engine off immediately and determine the cause
before restarting. Check the appliances and tools at-
tached to the generator for defects and make sure their
power requirements do not exceed the power rating of
the generator.
When the circuit breaker opens, the breaker button will
pop out. To reset circuit breaker, push button in.
Depending on model, the generator will have one of the
four styles of receptacles, the Danish IP44 type
(b), the
Swiss IP X4 type (c), the France/Belgium IP44 type (d),
or the Schuko IP44 (CEE 7) type (e).
Note: Enlargements of receptacles show protective
covers removed for identification purposes only. Never
remove protective covers.
4.7 Earth-leakage Circuit Breaker
Generator model G2.1AE is equipped with an earth-
leakage circuit breaker. The circuit breaker is current
operated and shuts off the power to the receptacles when
a ground fault of 30 milli-Amps or greater occurs in the
generator or to a piece of equipment attached to the
generator. The circuit breaker is located on the opposite
side of the generator as the control panel.
The circuit breaker should be tested for proper operation
every time the generator is used.
To test the earth-leakage circuit breaker:
Start the generator. Place main circuit breaker in closed
position. Push in TEST button (g). The circuit breaker
lever will lower to the open position (f
2
). Power is now off
at both receptacles. If the lever does not lower, the circuit
breaker is not working. Do not use the generator until the
problem can be corrected. To restore power to the
receptacles, raise the circuit breaker lever to the closed
position (f
1
).
If the circuit breaker lever lowers to the open position
during operation, stop the generator and check it and
equipment for defects. Repair all defects before operat-
ing generator.
1020SD80
T
E
S
T
g
f
1
f
2
bc
Control Panel
a Main circuit breaker - 10 Amp.
b Danish IP44 style receptacle.
c Swiss IP X4 style receptacle.
d France/Belgium IP44 style receptacle.
e Schuko IP44 (CEE 7) style receptacle.
a
de
1031SD43
