4A-12
4A G2.1A/G2.1AE 50 HZ PORTABLE GENERATORS

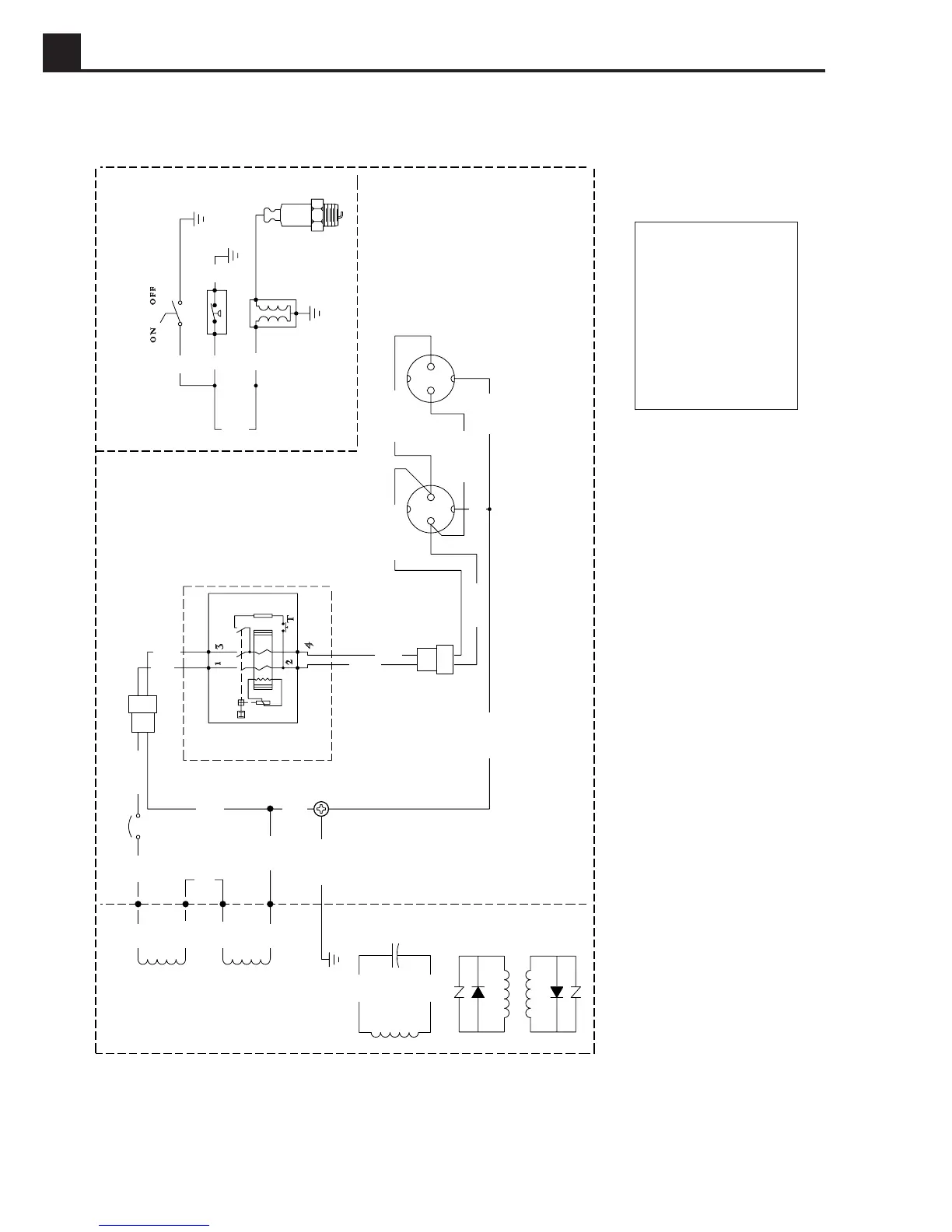

4.20 Wiring Schematic (G2.5A Model)
1020SD79
A = Generator
B = Control box
C = Engine
Wire Colors
B - Black
G - Green
L - Blue
P - Pink
R - Red
LL-Light blue
W- White
Y - Yellow
Br - Brown
Gr - Gray
Or - Orange
Pr - Purple
T - Tan
1 = Main stator winding
2 = Main circuit breaker
3 = Earth-leakage circuit breaker (G2.1AE only)
4 = Ignition switch
5 = Oil level switch
6 = Coil
7 = 16 Amp receptacle
8 = Rotor winding
9 = Capacitor (25µF)
10 = Auxiliary winding
R
Br
L
Br
1
1
R/W
W
B
B
8
9
10
3
B(2)
B(1)
4
5
6
B
G
Y
B/R
B
LL/Gr
7
7
R/Gr
G/Y
3
4
G/Y
ABC
1
2
2
R
LL
1
2
1
2
G/Y
R/B
LL/B
G/Y
B(3)
G/Y
LL
B(4)
