Page #19 background image
19
OPERATING MANUAL
VERSION 05/2017 ORDER NUMBER DOC 2354920
SPRINT XE
5 DESCRIPTION
5.1 CONSTRUCTION AND MODE OF OPERATION

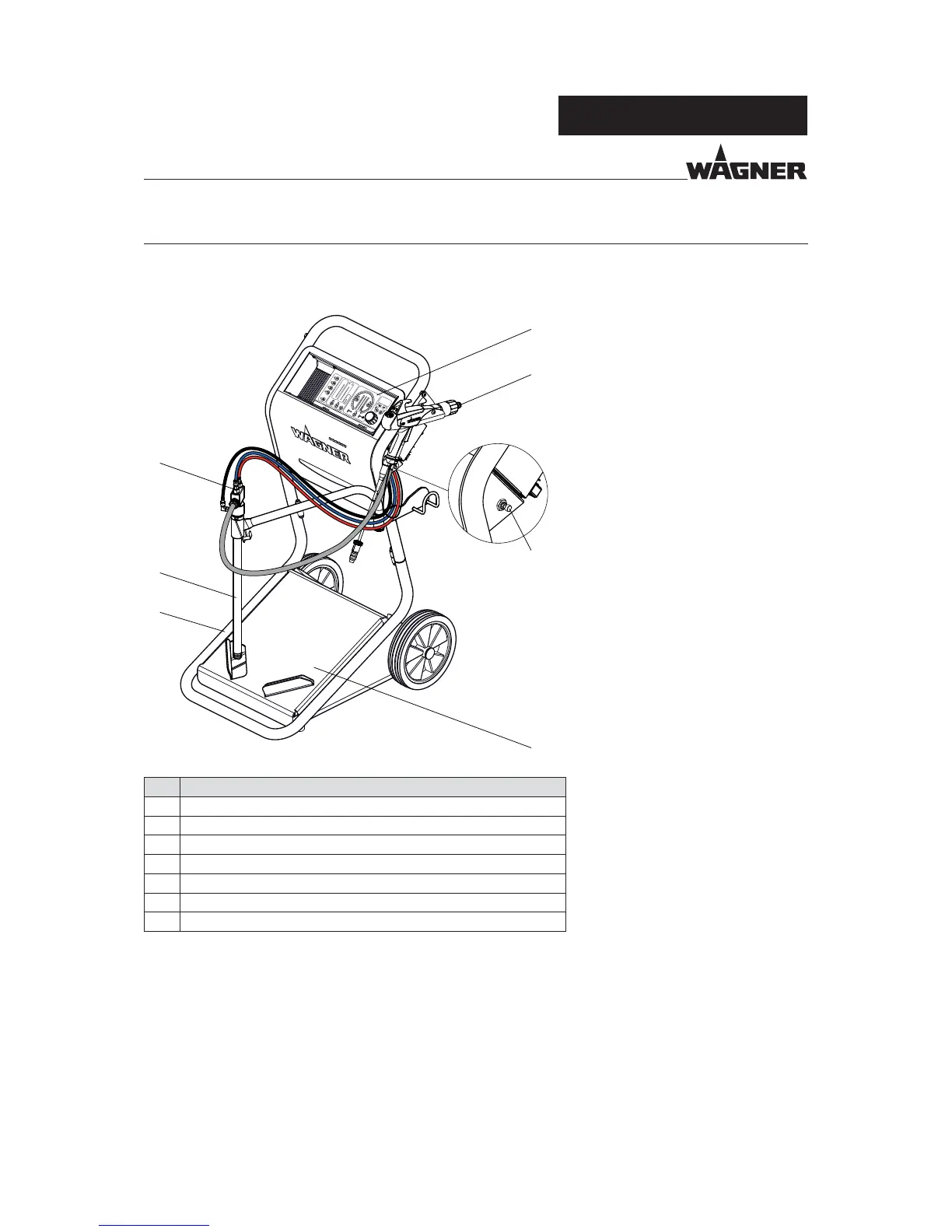

5.1.1 DESCRIPTION OF SPRINT AIRFLUID XE
5
4
7
3
2
1
6
P_02641
Pos Designation
1 Equipment trolley
2 EPG-Sprint XE control unit
3 PEM-X1 manual gun
4 intake tube ST 550/10
5 Powder injector, PI-F1
6 Fluid air throttle
7 Vibration table
Function:
The feed unit (4) is inserted directly into the original bundle. The powder is fed through
the powder injector (5) to the powder spray gun (3). Due to the special arrangement of
the suction crown and the vibration of the tank, a homogeneous powder/air mixture is
generated and maintained during the entire duration of the powder feed. The powder
quantity and the electrostatic charge of the color powder are regulated by the control unit
(2). The uid air setting is done using the throttle (6).
