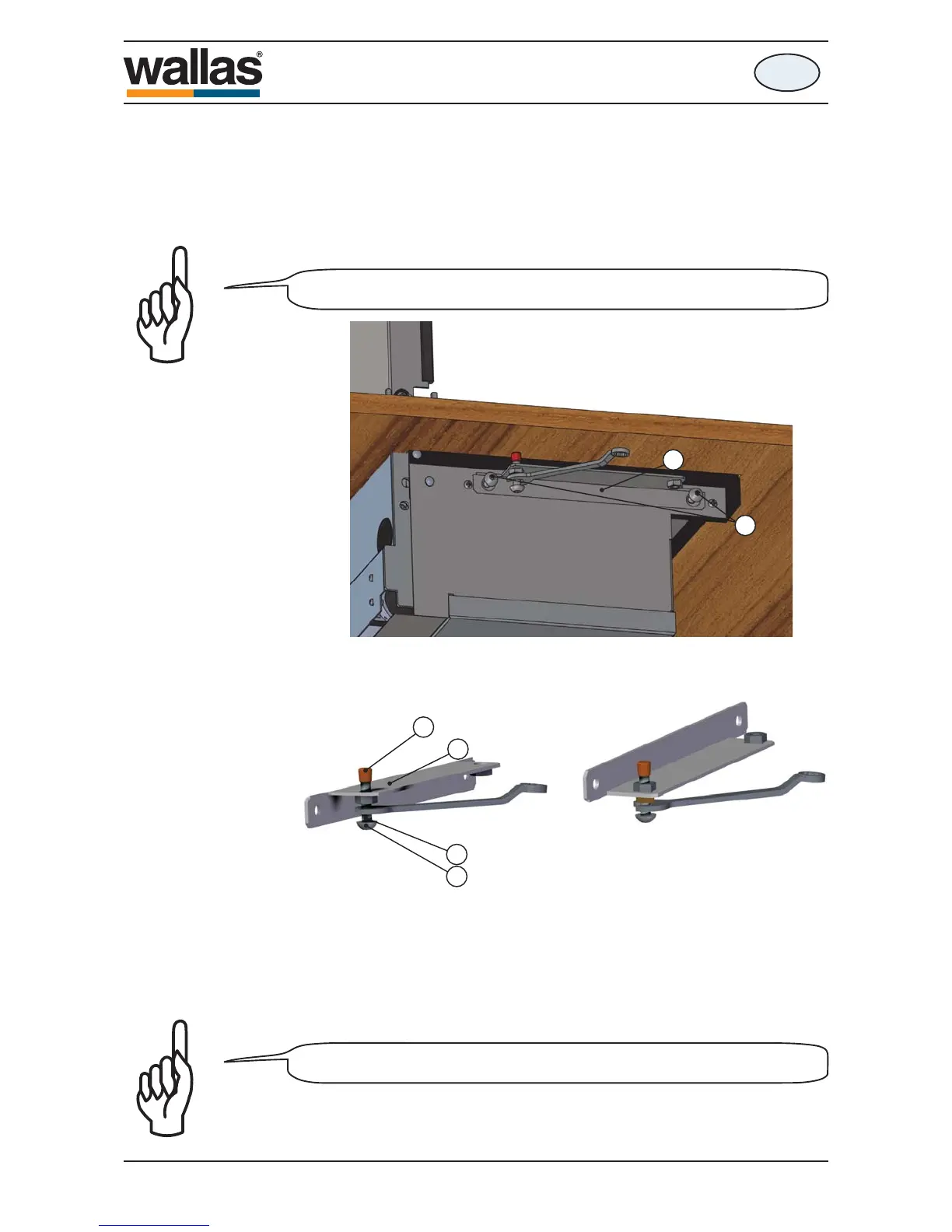

Fastening the device
Place the stove in the installation cut-out and attach the steel fasteners (1) with the
screws 0[(2) to the rivet nuts at the ends. After this, install the cover plug (3)
on the end of the screw and tighten the steel fasteners against the table with the
screw 0[(4). Remember the locking nuts M6 (5).
Attach the steel fasteners to the stove (1) with screws (2).
The steel fasteners can be installed in two ways depending on the thickness of the table board.
Push the cover plug (3) on the screw.
Tighten the screw (4) ¿rmly against the table board and then tighten the locking nut (5).
Thin table Thick table
Installation
en
Always use original Wallas accessories and parts with Wallas equip-
ment.
7KHVXUIDFHWKDWWKHXQLWLVWREHIDVWHGWRPXVWEHSHUIHFWO\ÀDW
en
D10361B
