Installation instructions for Tank connection 30018
Description
Einon
®
(30018) is a leak-proof intake fuel line.
Getting Started
Parts needed in installation are put in right order and are connected together with
a wire. You shall never cut the installation wire , you’ll need it when installing the
intake pipe. (Installation without the wire is not possible).
Stages
Make sure that the fuel tank is empty enough.
6HDUFKDERXWFPÀDWVHFWLRQIURPWKHIXHOWDQNZKHUH\RXFDQGULOOD
mm diameter hole.
Clean the selected area of protection grease and clean also other pos-
sible dirt.
Drill a hole.
Remove the burr from hole (inside and outside).
Figure out without installing for Einon
®
(30018) suitable bending and
length.
Cut the pipe end diagonally and remove burrs.
Install the cut and bent intake pipe through the drilled hole into the tank.
Push through the hole into the tank all the other interior parts (up to the
mark), keep the order of parts as they are mounted to the wire.
Pull from the wire until the Einon
®
(30018) threaded part is outside of the
tank.
Turn the Einon
®
(30018)WRWKHFRUUHFWSRVLWLRQDQGWLJKWHQWKHWDQNH[WHU-
nal part (nut).
Attach the fuel line to the Einon
®
(30018).

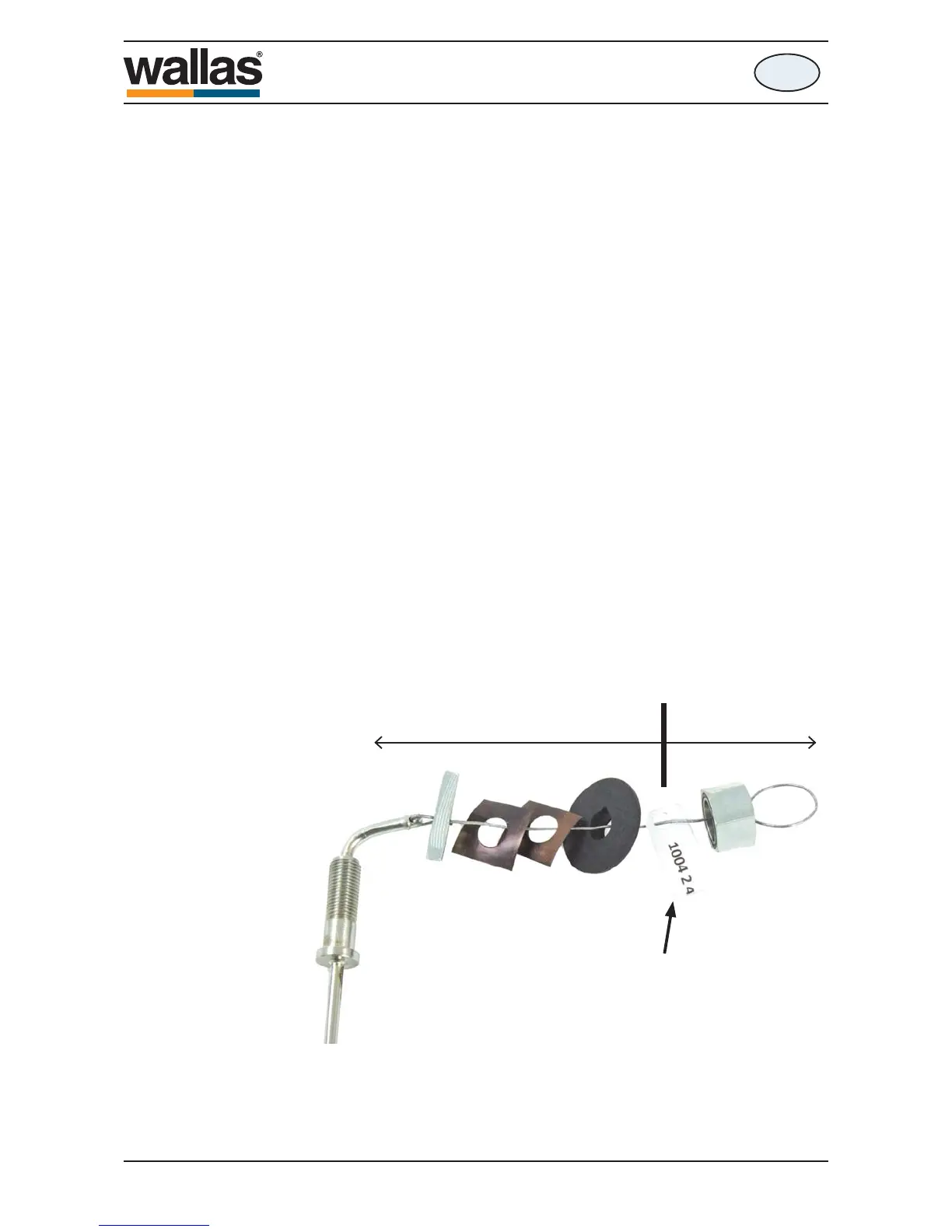

MARK
INSIDE TANK PARTS EXTERIOR
