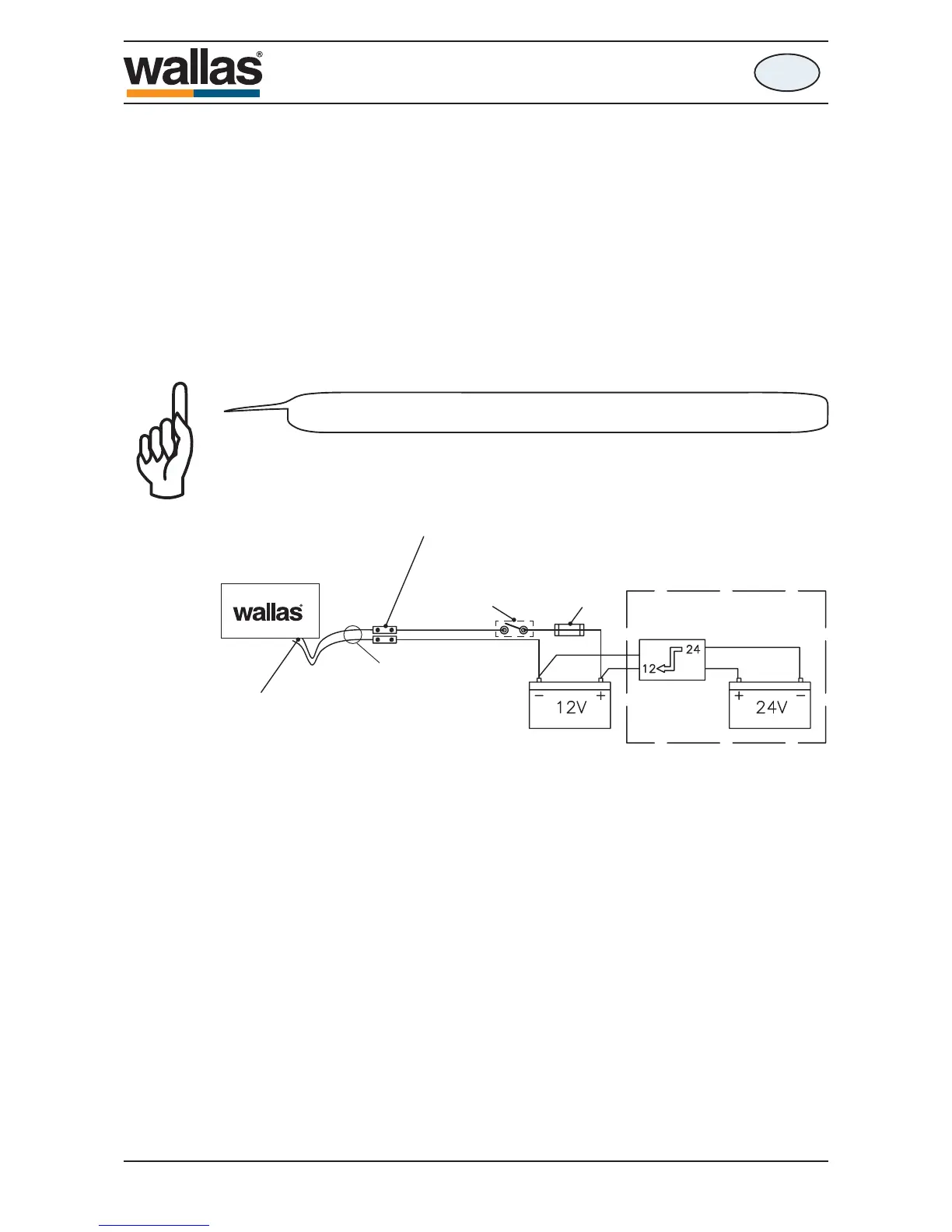

Electrical connections of the device
12 V direct current system
Connect the red wire of the power cord to the plus terminal of the battery and the
black or blue wire to the minus terminal. A 15 A main fuse must be installed near
the battery on the red plus wire of the power cord. See picture.
24 V direct current system
If the device is to receive power from a 24 V system, always connect a charg-
ing voltage reducer and a 12 V battery before connecting the device. Without the
battery the voltage reducer will not be enough on its own as it cannot generate the
ODUJHDPRXQWRIFXUUHQWWKHJORZSOXJUHTXLUHV$IWHUWKH9EDWWHU\WKHFRQQHF-
tion is the same as in a 12 V system.
24 V direct current system
Device’s quick
coupling
Jointing
A jointing should only be made in long
power cords, if necessary, in which case
the cord must be replaced with a thicker
one. The jointing should be less than 1
meter from the device.
Main switch
Main fuse
Power cord
Checking the connection
The device consumes most power when it is started up (glowing). At this point volt-
age losses are also at their highest. During the glowing phase, the voltage must be
DWOHDVW9PHDVXUHGDWWKHTXLFNFRXSOLQJ6HHSLFWXUH,IWKHYROWDJHLVORZHU
than this, the device may not start.
The unit should be connected to a battery used for purposes other than
starting the engine, if possible.
Installation
en
D10021B
- 50 -
XC Duo
490541G
