7 mm
PP[
10 mm
12 mm
Ø 43 mm
Ø 2 mm
Ø 5 / Ø 6 mm
6,5 mm TX 10
5 mm
en
Installation
Things to note when selecting the installation location
When installing the device, bear in mind that the device must be detached for
maintenance. Therefore, it is advisable to make the connections easy to open and
disconnect.
7KHVWRYHVKRXOGEHLQVWDOOHGOHYHO7KHLQFOLQDWLRQVKRXOGQRWH[FHHGZLWKWKH
standing level. While the device may not be damaged if it is temporarily tilted to a
steep angle while running (even for some hours), the burner will not yield optimal
performance while inclined.
The control panel should be installed in a vertical surface, away from sources
of heat or cold (for thermostatic function) and within the 3 meter control harness
length.
The stove should not be installed on top of a refrigerator. The stove will heat its sur-
roundings and thus decrease the power of the refrigerator.
We recommend that the device be installed by an authorised Wallas Dealer.
Things to note when installing pipes, hoses and cables
Power cables and fuel hoses must be protected in locations where they are sus-
ceptible to mechanical damage due to sharp edges or heat.

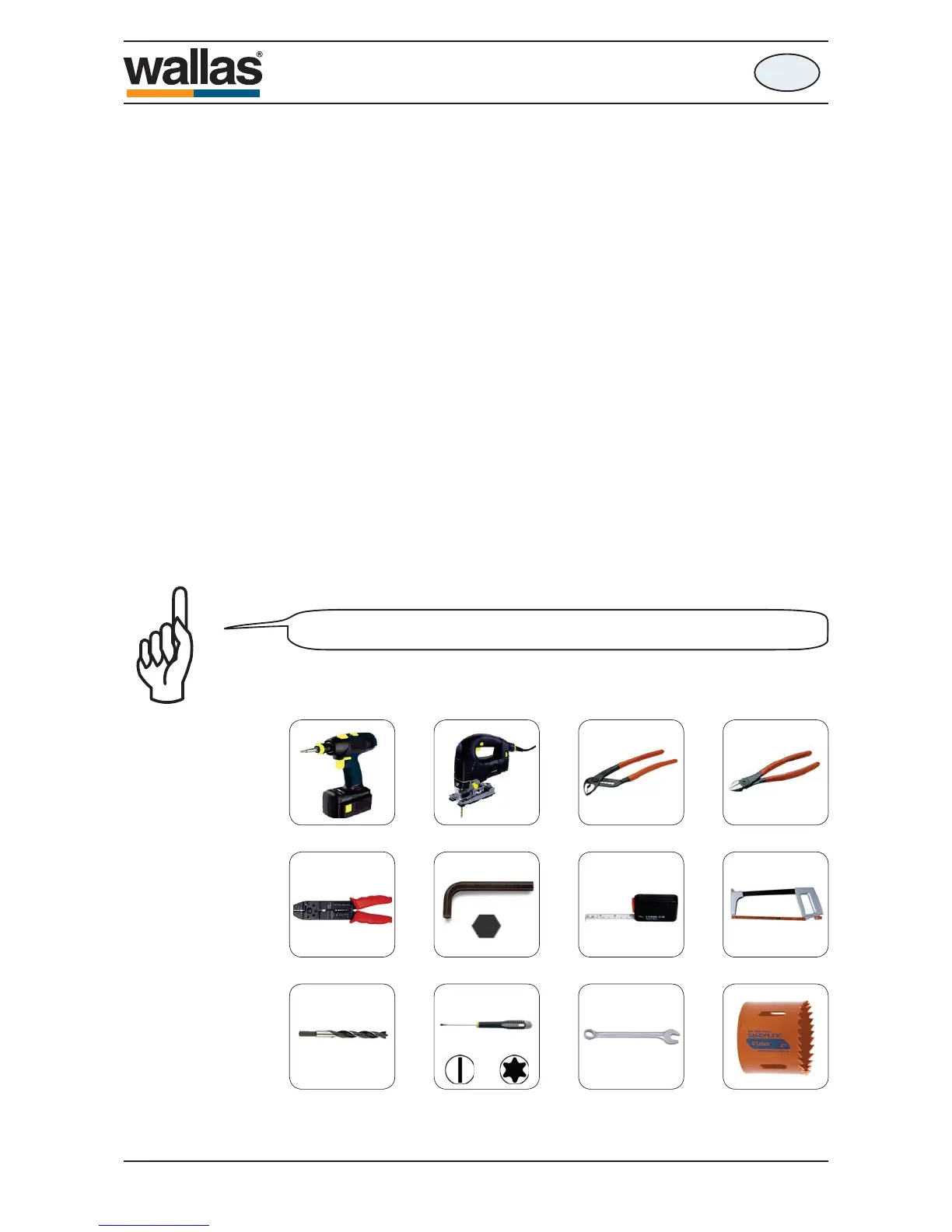

The necessary installation tools
If possible, install the control panel on a vertical surface.
D10361B
- 44 -
XC Duo
490541G
