WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0

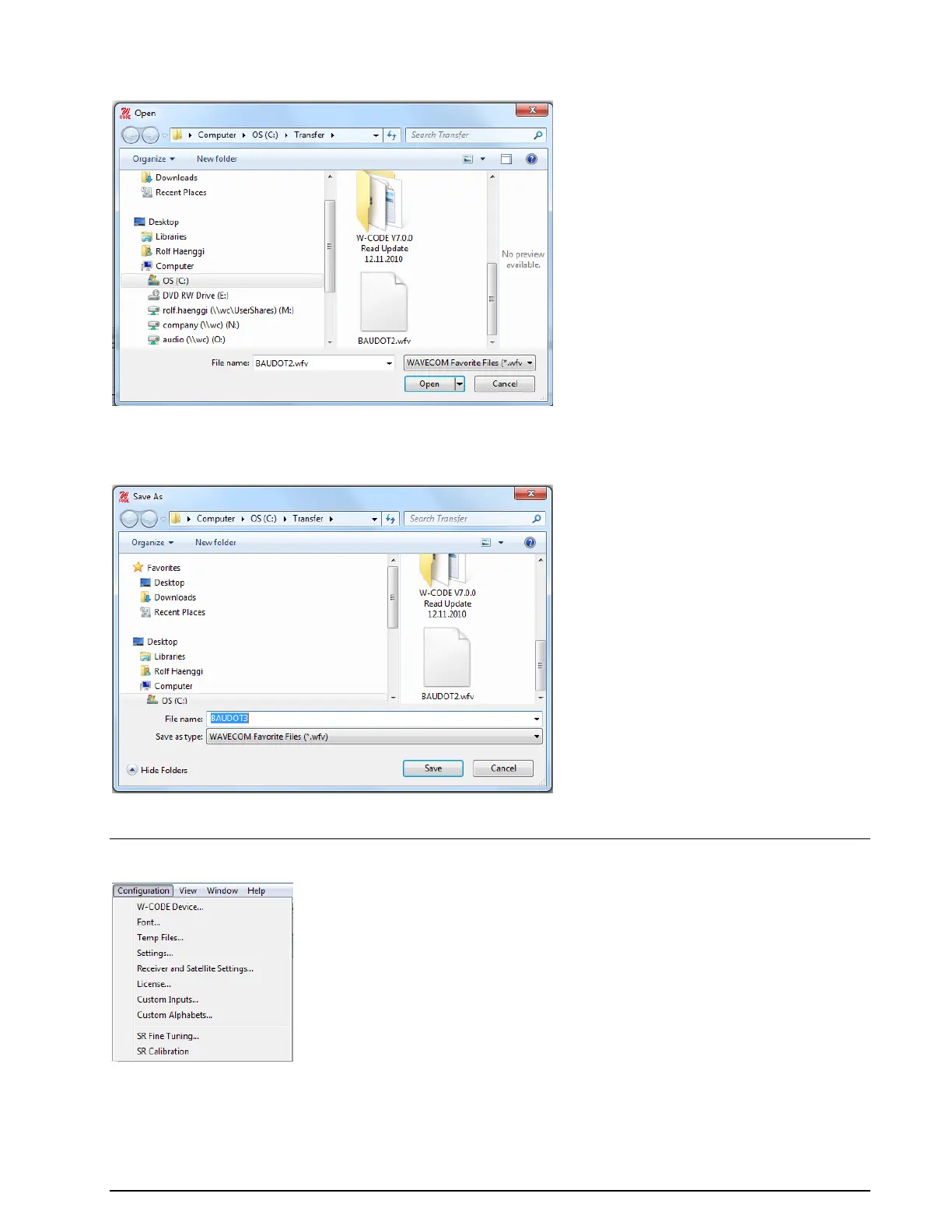

First start
ï‚·
51
Open...
Select
Open
to reload the settings.
Save A
s...
Select
Save
to save the settings.
Configuration Menu
In the
Configuration
menu all general setup fun
ctions are available
.
60
62
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
12
Welcome
12
Revisions
12
Recommended WAVECOM Products and Services
19
W-BV Bitview Tool
19
W-Sat-Email-Decoder
19
Setup
21
W-PCI/W-Pcie
21
W-PCI/W-Pcie Hardware Installation
21
W-PCI/W-Pcie Software Installation
23
W74Pc
23
W74PC Hardware Installation
23
W74PC Software Installation
25
Wavecom Hardware Decoder License
25
W-Code
25
W-CODE Hardware Installation
25
Software Installation W-CODE, W74PC, W-PCI and W-Pcie
25
W-CODE Server Control
26
W-CODE Device Serial Number
26
W-CLOUD Networking
27
W-CODE Licensing
28
Software Uninstall
29
First Start
31
W-CODE First Start
31
Gui
32
Command Line Parameters
33
Default Data and Program Folders (Paths)
33
Main Menu
35
File Menu
36
Media Player/Recorder
37
HF-Modes Menu
42
VHF/UHF-DIR Menu
44
VHF/UHF-SUB Menu
45
Satellite Menu
46
FAX & Modems Menu
47
Options Menu
48
Alphabet
48
Auto Decrypt
48
Bit Inversion Mask
49
CRC Recognition
49
CRC Table
49
Clear Screen
50
Code Statistics
50
Cycle
50
Error Indication
50
FAX & Modems Settings
50
Frame Format
51
Ias
51
Letters/Figures
51
Message Type
51
Modem Settings
53
Msi
53
Resync Mode
53
Signal Polarity
53
Symbol Definition
53
SAT Settings
54
Toggle
55
Time Stamp
55
Demodulator Menu
56
Auto
56
Mode
56
PB Center
58
PB Bandwidth
58
Center
58
Shift
58
Baudrate
58
Polarity
58
Offset
58
Input
59
Gain
59
Favorites Menu
60
Open
61
Save as
61
Configuration Menu
61
W-CODE Device
62
Font
63
Temp Files
63
Settings
64
Receiver and Satellite Settings
64
License
65
Custom Inputs
66
Custom Alphabets
74
SR Fine Tuning
75
SR Calibration
75
View Menu
77
Window Menu
77
Help Menu
77
Contents
78
WAVECOM on the Web
78
About W-CODE
78
Other GUI Elements
78
Toolbar
78
WAVECOM Toolbar
78
Level Indicator
79
Spectrum Indicator
79
Decoder Status Bar
79
Demodulator Status Bar
80
SAT Frequency Tuning Bar
80
Fft/Sonagram Context Menu
82
Mode Selector
83
Passband Filter Support
88
Analysis Tools
90
Fft
90
FFT (HF, SUB, dir and SAT)
91
Tuning FFT or Sonagram
91
FFT and Sonagram
93
Waterfall
93
Waterfall (HF, SUB, dir and SAT)
94
Sonagram
94
Sonagram (HF, SUB, dir and SAT)
95
Oscilloscope
95
FSK Analysis
96
FSK Analysis Options
97
FSK Code Check
98
FSK Code Check HF
98
FSK Code Check dir
100
FSK Code Check SUB
101
PSK Symbol Rate (HF, DIR, SUB and SAT)
103
PSK Phase Plane (HF, DIR, SUB and SAT)
104
PSK Code Check (HF, dir and SUB)
106
MIL-STANAG Code Check
107
MFSK Analysis
108
MFSK Code Check HF
109
Autocorrelation
110
Bit Correlation
112
Bit Length Analysis
114
SELCAL Analysis
116
Fundamentals of Radio Data Transmission
118
Telegraph Speed, Bit Rate, Baud Rate and Symbol Rate
119
Formatting and Source Coding
120
Encryption
122
Channel Coding
123
Equalization
124
Synchronization
124
Multiplexing and Multiple Access
125
Modulation
125
ASK (Amplitude Shift Keying)
126
FSK (Frequency Shift Keying)
126
PSK (Phase Shift Keying)
126
M-Ary-FSK (MFSK), M-Ary-PSK (MPSK)
126
OFDM (Orthogonal Frequency Division Modulation)
126
Bandwidth-Efficient Modulation
127
Indirect Fm
127
Indirect am
127
Fax
127
FAX Transmission Sequence
127
Transmission Modes
128
Acars
128
Ais
130
121
131
Alf-Rds
132
Alis
132
Alis-2
133
Amsat-P3D
134
Apco-25
134
ARQ6-90 and ARQ6-98
135
Arq-E
135
Arq-E3
136
ARQ-M2-342 and ARQ-M2-242
137
ARQ-M4-342 and ARQ-M4-242
137
Arq-N
138
Ascii
138
Atis
139
130
140
Autospec
140
Baudot
141
Biis
142
Br-6028
145
Bulg-Ascii
146
Ccir
147
Ccitt
148
Chinese 4+4
149
Chu
149
140
150
141
151
Cis-36-50
152
Cis-50-50
153
Clover-2
153
Clover-2000
154
Clover-2500
155
Codan-Selcal
155
Codan-3212
155
Codan-9001
157
Coquelet-13
161
Coquelet-8
162
Coquelet-80
163
Ctcss
164
Cw-Morse
165
CV-786
165
Dcs Selcal
166
Demodulated Bitstream Output
167
Dgps
168
Dmr
169
Dpmr
170
Dtmf
171
Dup-Arq
172
Dup-Arq-2
173
Dup-Fec-2
173
Dzvei
174
Eea
175
Efr
175
Eia
176
Ermes
177
Euro
179
Fec-A
179
Feldhell
180
Flex
181
Fm-Hell
181
Fms-Bos
182
Gmdss/Dsc-Hf
184
Gmdss/Dsc-Vhf
184
Golay/Gsc
185
G-Tor
186
Gw-Fsk
187
Gw-Ofdm
187
GW-OFDM-Modulation and Protocol
188
Decoder
188
Gw-Psk
189
Hc-Arq
189
Hf-Acars
190
Hng-Fec
191
Icao Selcal
192
Link-11 (Clew)
193
MD-674 Async
194
Meteosat
194
Mfsk-20
195
MFSK-8 and MFSK-16
196
MIL-188-110-16Tone, (MIL-188-110A/B
196
MIL-188-110-39Tone, (MIL-188-110A/B
197
Mil-188-110A
198
Mil-188-110A-Mod
200
MIL-188-110B (Appendix C), STANAG 4539
201
Mil-188-141A
203
Mil-188-141B
204
Mil-M-55529A Nb/Wb
205
Mobitex-1200
206
Mobitex-8000
207
Modat
207
Fax & MODEMS Half-Duplex
208
Fax-G3-V.17
208
FAX-G3-V.27Ter
208
Fax-G3-V.29
209
FAX-G3-V34Hdx
209
V.21, Bell103
209
V.22 / V.22Bis, BELL212A
209
FAX & MODEMS Full-Duplex
210
V.26 / V.26Bis
210
V.32 / V.32Bis
210
Mpt-1327
211
V.92
211
Natel
213
204
214
Noaa-Geosat
214
Nwr-Same
215
Nxdn
219
Olivia
219
Orbcomm
220
Packet-1200
221
Packet-300
222
Packet-9600
223
Pactor
223
Pactor-Fec
224
Pactor-II
225
Pactor-II-Auto
226
Pactor-II-Fec
226
Pactor-III
227
Pactor-4
229
Pccir
229
Pdzvei
230
PICCOLO-MK6 and PICCOLO-MK12
231
Pocsag
232
Pol-Arq
234
Press-Fax
234
225
235
Psk-31-Fec
236
Psk-63F, Psk-125F, Psk-220F
237
Psk-Am
238
Pzvei
238
Robust-Packet
239
Rum-Fec
240
Sat-Aero-P, Sat-Aero-R, Sat-Aero-T
241
Sat-Aero-C
241
Sat-B
242
Sat-B-C-Tfc
242
Sat-B-C-Hsd
243
Sat-C-Tdm, Sat-C-Tdma, Sat-C-Egc
244
Sat-C Tdm
244
Sat-C-Tdma
245
Sat-C-Tdm-Egc
246
Sat-M
248
Sat-Mini-M
248
Sat-Mini-M-C-Hsd
249
Si-Arq
250
Si-Auto
250
Si-Fec
251
Sitor-Arq
251
Sitor-Auto
252
Sitor-Fec
252
SPREAD-11, SPREAD-21 and SPREAD-51
254
Sstv
254
Stanag-4285
256
Stanag-4415
258
Stanag-4481-Fsk
259
Stanag-4481-Psk
260
Stanag-4529
261
Stanag-4539
263
Stanag-5065-Fsk
263
Swed-Arq
263
Tetra
264
Constraints
267
Tetrapol
268
THROB and THROBX
272
Twinplex
272
Vdew
274
Vdl-M2
274
Visel
275
Weather-Fax
276
Zvei-1
278
Zvei-2
278
Zvei-3
279
Zvei-Vdew
280
Classifier (Optional)
283
Overview
283
Classifier
283
How the Classifier Works
283
Classifier User Interface
283
Caveats
288
Classifier Code Check HF (CCC)
288
How the Classifier Code Check Works
288
User Interface
290
Decoding
294
Classifier Code Check (CCC) VHF/UHF
294
How the Classifier Code Check Works
294
User Interface
296
Decoding
300
Classifier Code Check Editor
300
Installation
300
CCC Editor GUI
301
Data Base Fields
306
SAT System
308
Overview
308
Systems
309
RF Channels
310
Logical Channels
310
MES Identification
311
Session Signaling
311
SAT Operation
311
Traffic-Channel Decoder
313
The Sat Aero System
313
Services
313
Channel Types
314
Trouble Shooting
315
Modem and FAX Modes
319
Overview
319
Line Transmission
319
Fax and Data Transmission
320
Modem Functionality
320
Handshaking
321
Modulation Types
322
Decoding
323
Input and Interfacing
325
Constraints
325
Output
326
Additional Functions
327
License System, Software and Options
327
License System
327
Cmstick
327
WAVECOM Server
329
Introduction
329
WAVECOM Server Control
330
Shortcut Manager
332
Adding a Shortcut to an Existing Installation
332
Alarm Monitor
333
Introduction
333
Options
334
Settings
334
Run
336
Serial Link
336
Introduction
336
Getting Started
337
Status Information
337
Remote Control
338
Xml
338
WAVECOM Data Formats
339
IP-CONF TCP/IP Data Format
339
IP-PXGF TCP/IP Data Format
339
Overview
339
Pxgf Description
339
The Pxgf Chunk Structure
339
Application Notes
340
Definition of Chunks
341
WAVECOM Data File Format
343
File Header
343
Data Structures
344
File Headers and Data Structures for Individual File Types
344
Appendix
352
Alphabets Details
352
Unicode
352
Questions & Answers
362
Signal Interference
362
General
362
Antenna Installation
363
Receiver
363
HF Cabling
363
Grounding
363
Location of Decoder
363
Pcs and Peripherals
363
Video Monitor
363
Lan
363
Conditions of Sale
363
General
363
Prices
364
Delivery Time
364
Dispatch
364
Return of Goods
364
Payment
364
Reservation of Ownership
364
Cancellation
364
Changes of Order Quantities
364
Legal Domicile
364
Warranty
365
Obligation
365
Copyright
365
Liability
365
Laws and Regulations
365
License Terms
365
Manufacturer Address
366
Glossary of Terms
367
Keyboard Shortcuts
370
Menu Options
371
Menu System
371
Index
377
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Wavecom W-CODE and is the answer not in the manual?
Ask a question
Wavecom W-CODE Specifications
General
Brand
Wavecom
Model
W-CODE
Category
Media Converter
Language
English
Related product manuals
Wavecom W74PC
381 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
