XFX nForce 790i Ultra 3-Way SLI Motherboard

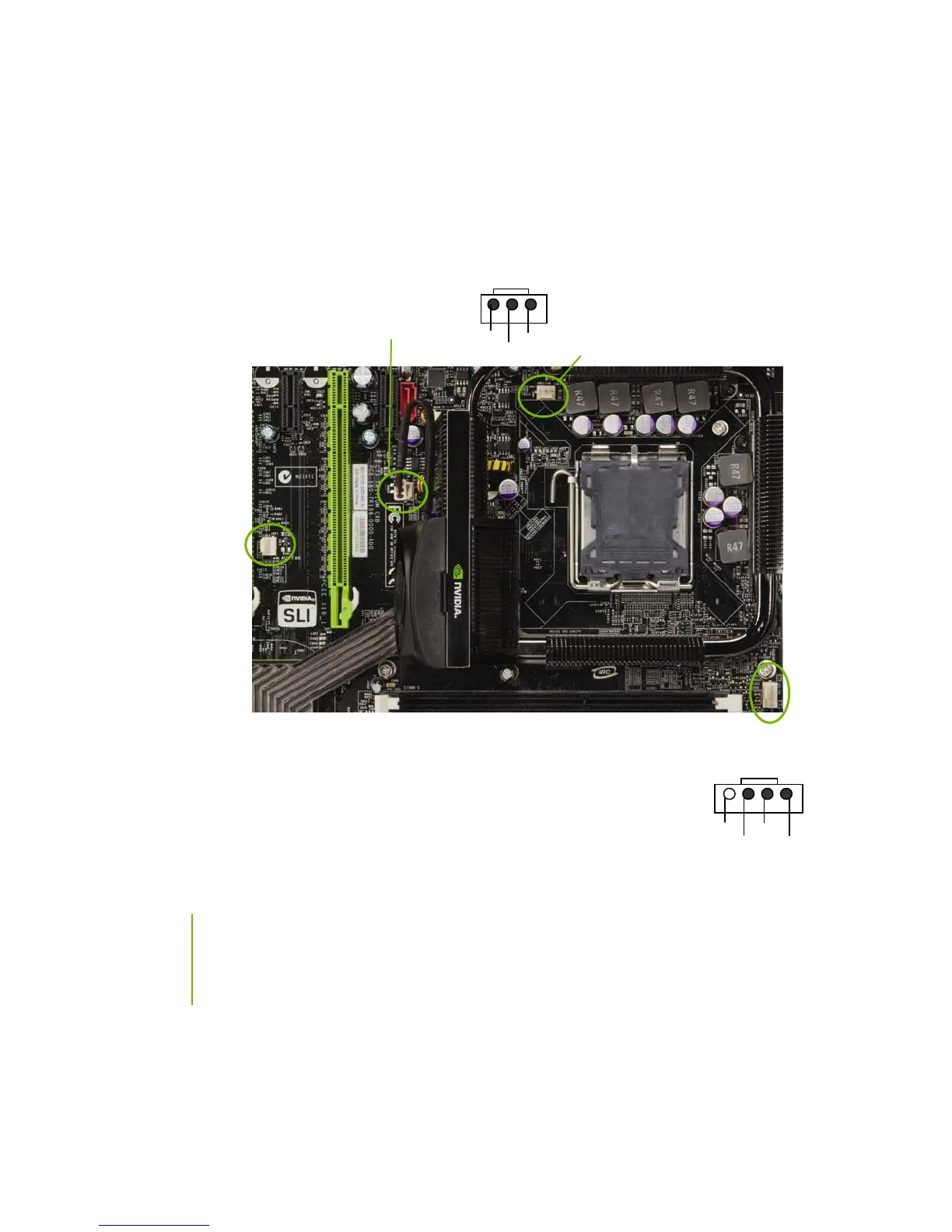

Fan Connections

There are five fan connections on the motherboard. The fan speed can be

detected and viewed in the PC Health Status section of the CMOS Setup. The

fans are automatically turned off after the system enters S3, S4 and S5 mode.

Note that the CPU fan cable can be either a 3-pin or a

4-pin connector. Connect a 3-

pin connector to pins 1, 2,

and 3 on the motherboard connector.

CPU Fan Connector

GND SENSE

PWR CONTROL

Install the fan on the nForce 790i

Ultra SLI MCP to draw heat from the

MCP and the SPP

. The fans plug into

a 3-pin connector.

Fan Connector

3 2 1

GND

+12V

SENSE

AUX Fan

CPU Fan

VREG Fan
