Xilinx ZC706 User Manual

ZC706 Evaluation Board User Guide www.xilinx.com 59
UG954 (v1.5) September 10, 2015
Feature Descriptions
User Pushbuttons
[Figure 1-2, callout 23]

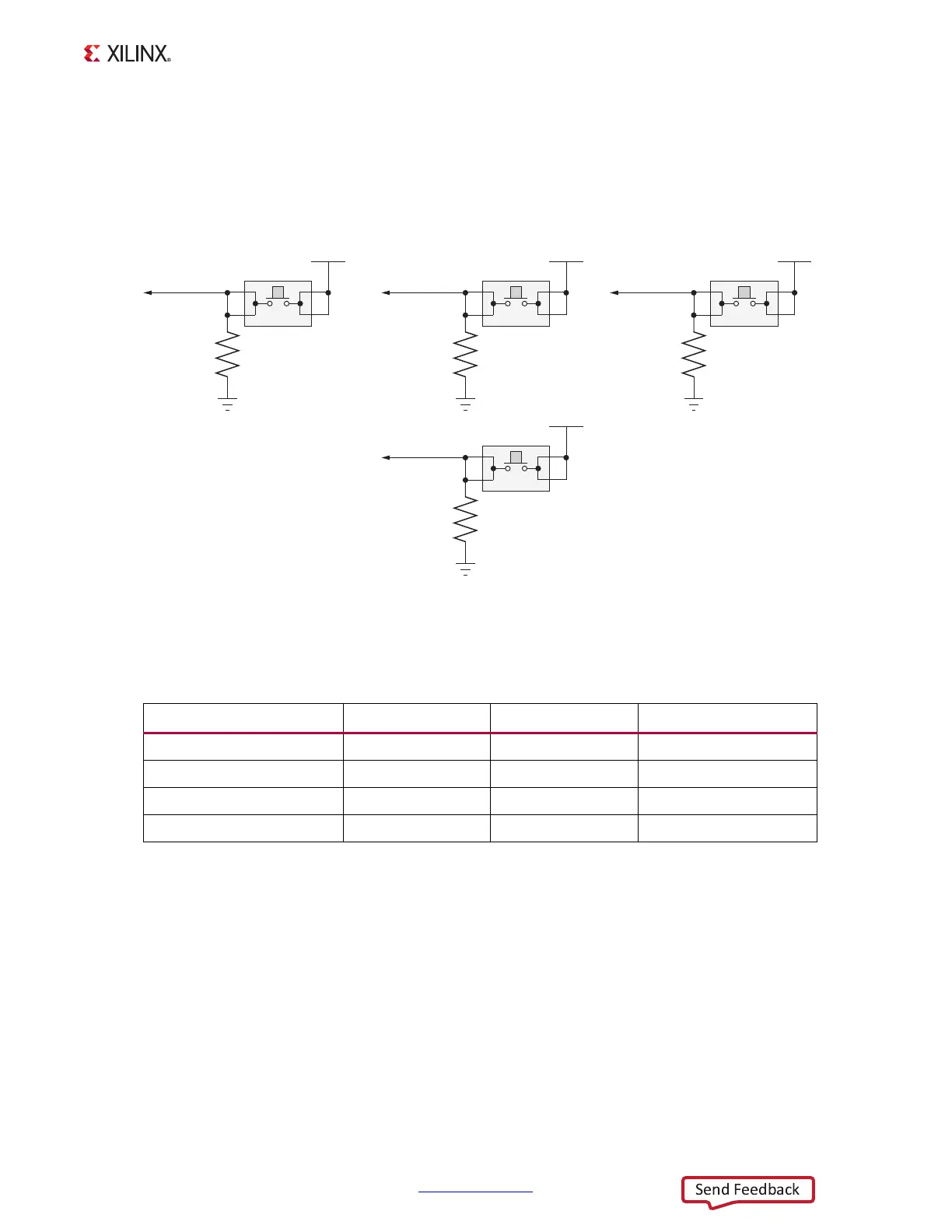

Figure 1-26 shows the user pushbutton circuits.
Table 1-29 lists the user pushbutton connections to XC7Z045 AP SoC U1.
X-Ref Target - Figure 1-26
Figure 1-26: User Pushbuttons
VADJ
GPIO_SW_LEFT
R66
4.7 kΩ
0.1 W
5%
GND
4
32
1
SW7
VADJ
GPIO_SW_CENTER
R72
4.7 kΩ
0.1 W
5%
GND
4
32
1
SW9
UG954_c1_26_041113
VADJ
GPIO_SW_RIGHT
R67
4.7 kΩ
0.1 W
5%
GND
4
32
1
SW8
VCC1V5_PL
PL_CPU_RESET
R516
1.00K
1/16 W
1%
GND
1
32
1
SW13
Table 1-29: User Pushbutton Connections to XC7Z045 AP SoC U1
XC7Z045 AP SoC (U1) Pin Net Name I/O Standard Pushbutton Reference
AK25 GPIO_SW_LEFT LVCMOS25 SW7
K15 GPIO_SW_CENTER LVCMOS25 SW9
R27 GPIO_SW_RIGHT LVCMOS25 SW8
A8 PL_CPU_RESET LVCMOS15 SW13
