Xinje DS3 Series Manual

40

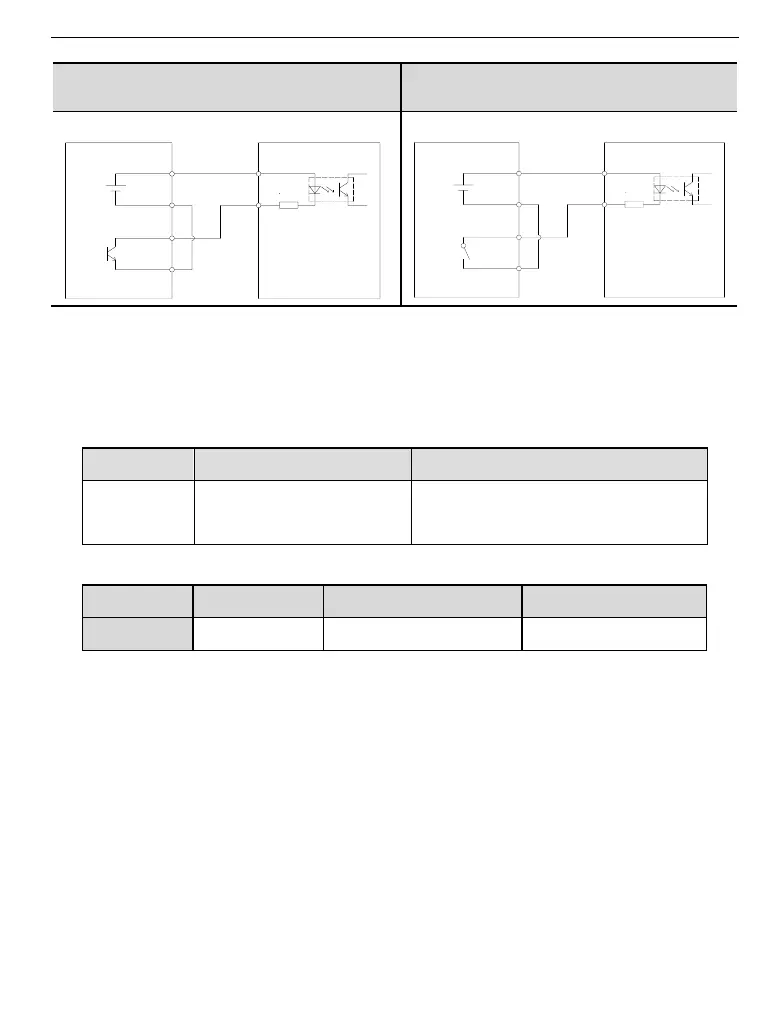

Open collector (24V power supply)
Relay (24V power supply)
Upper device servo drive
SI
+24V
+
COM2
Y2
0V
+24V
R=2.2KΩ
Upper device servo drive
R=2.2KΩ
+24V
0V
Y2
COM2
+
+24V
SI
Note: the max allowable voltage and current of open collector output circuit:
Voltage: max DC30V
Current: max DC50mA
 SO output signal
Type
Output terminal
Function
Optocoupler
output
SO1~SO3
Multiple functions output terminal
Default setting of output terminal
Terminal
SO1
SO2
SO3
Function
/COIN
/ALM
/S-RDY
