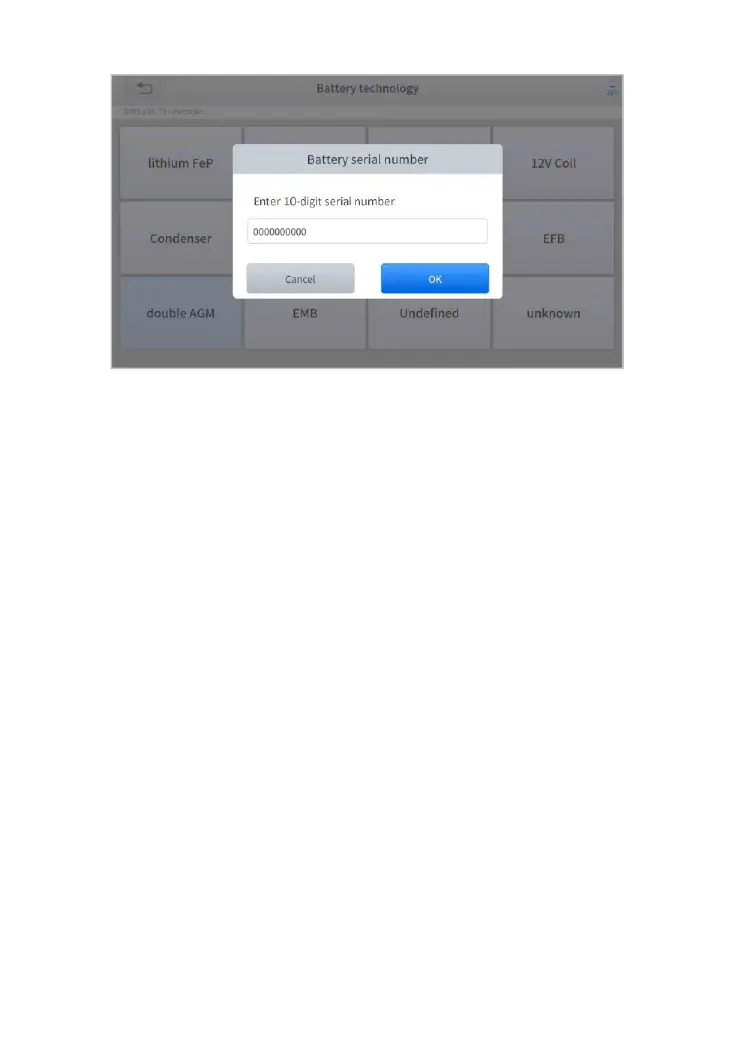

Figure 5-19 Sample of BMS function (screen 3)
5.6 THROTTLE
Throttle Position Sensor (TPS) Match, this function enables you to make
initial settings to throttle actuators and returns the “learned” values stored
on ECU to the default state. Doing so can accurately control the actions of
regulating throttle (or idle engine) to adjust the amount of air intake.
The operation guidelines of the Throttle function are shown below:
1. Enter the Throttle menu and choose relevant models according to
the vehicle being tested.
2. Enter the Auto Recognition menu and turn on the ignition switch.
3. Read carefully and complete the requisites listed before performing
the throttle regeneration function. And press OK after completing the
instructions shown.
