Meter Display

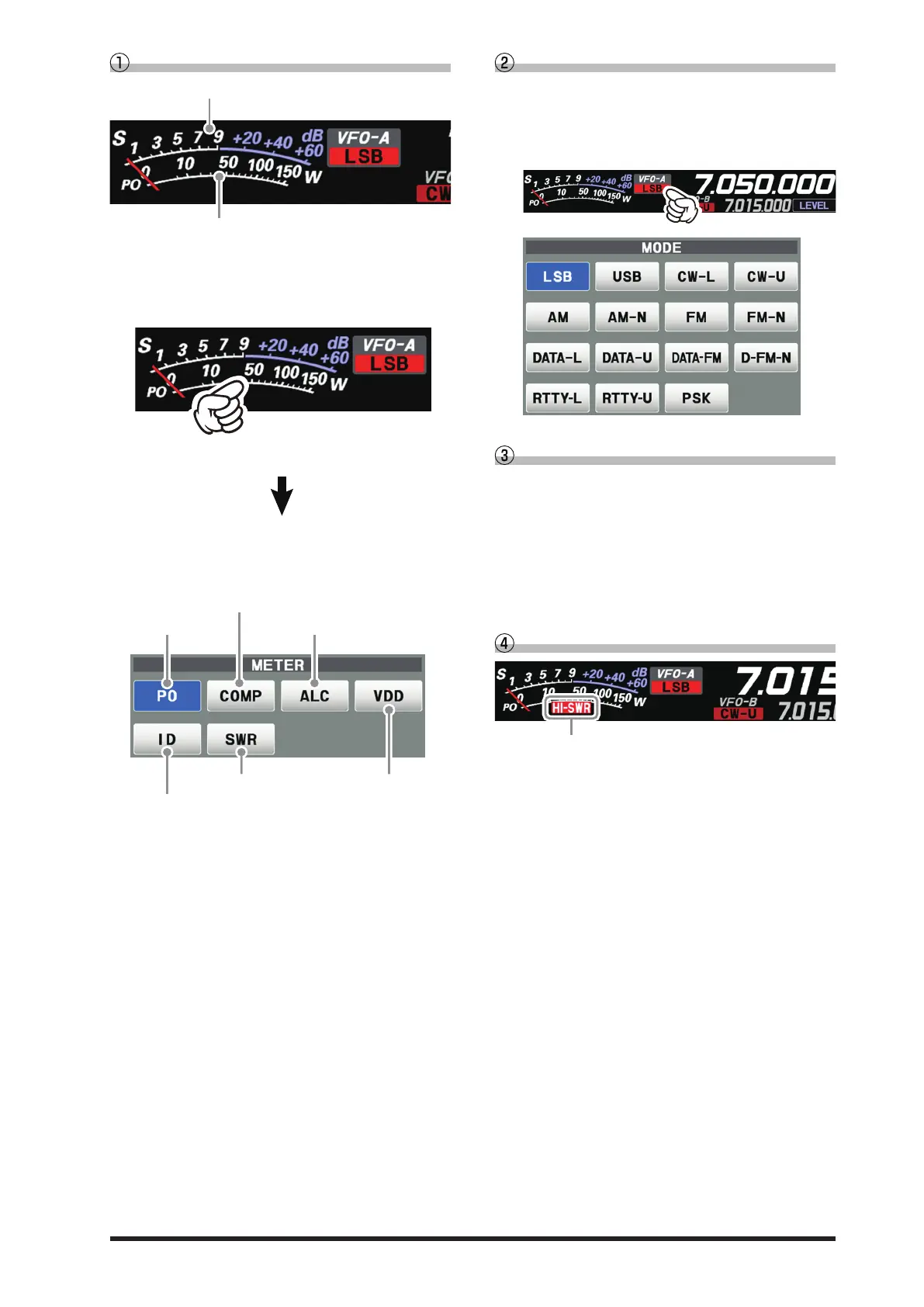

When the meter display screen is touched, the
transmit meter selection screen is shown (the
default default setting is “PO”).
RF power Output
Standing Wave Ratio Final amplifier
drain voltage
Final amplifier drain current
AMC gain control display
(Displays compression level during
speech processor operation)
Make adjustments by pressing the [FUNC] knob
→
→ touch [COMP] → rotate the [FUNC] knob.
Relative ALC voltage
Touch the meter area
Operation MODE Display
Displays the current operating mode. When
touched the operation mode selection screen is
displayed. Touch the desired operation mode to
select it.
Operation status Display
VFO-A: Lights in VFO-A mode.
VFO-B: Lights in VFO-B mode.
M-xx: Displays the selected channel number in
memory mode.
MT: Lights up during memory tuning operation.
QMBxx: Lights up during operation with quick memory.
M-Pxx: Lights up during programmable memory scan
operation.
EMG: Emergency call set frequency call lights up.
HI-SWR Display
This is a warning notification of an
abnormality in the antenna system.
If “HI-SWR” lights up, immediately check if for
any abnormality in the antenna system.
