DATA (PSK) Operation
The FTDX10 PSK Decode Feature supports both BPSK and QPSK with error correction functions. Easily
synchronize PSK by aligning the marker on the TFT display screen.
Connecting to a Personal Computer

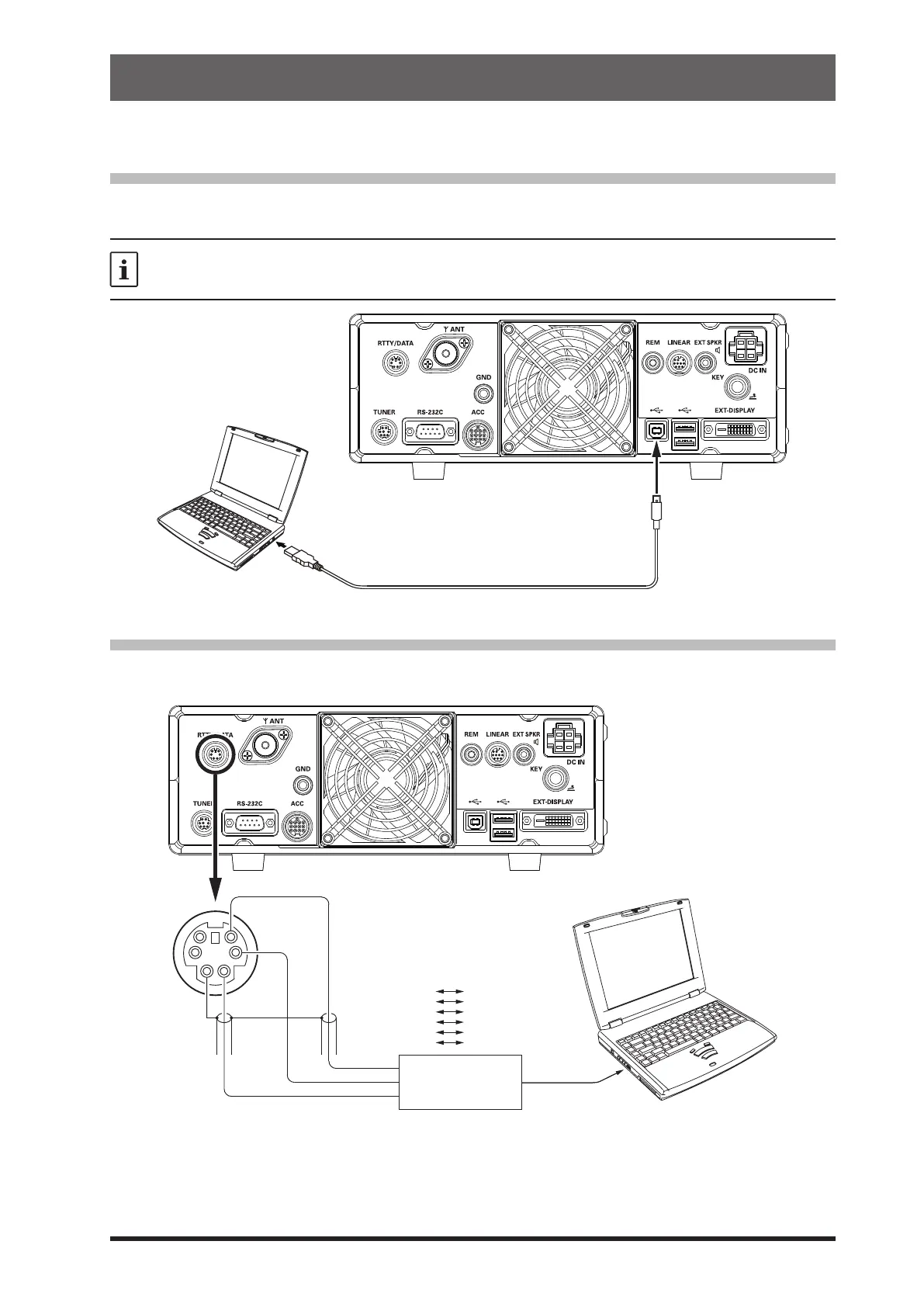

Connect the transceiver and a PC with a commercially available USB cable (A-B) to perform PSK data
communications using commercially available software and freeware.
To connect to a PC using a USB cable, a Virtual COM port driver must be installed on the PC.
Visit the Yaesu website http://www.yaesu.com/ to download the Virtual COM port driver and Installation Manu-
al.
To USB port
Commercially available USB (A-B) cable
Connecting to the Data Communications Device
A Data Communications Device may be connected to the rear panel RTTY/DATA terminal. Be sure to
read the instruction manual of the Data Communications Device before connecting it.
GND
DATA OUT
DATA IN
DATA PTT
RTTY/DATA Jack
DATA IN（Pin 1）
GND（Pin 2）
DATA PTT（Pin 3）
FSK IN（Pin 4）
DATA OUT（Pin 5）
SQL OUT（Pin 6）
Inter Face
DATA OUT
GND
PACKET PTT
N.C.
DATA IN
N.C.
Inter Face
