Operation of the display [FUNC] knob
Displays the multiple functions that may be operated when the [FUNC] knob is pressed.
Normally, it is recommended to adjust the level of the spectrum scope with the [LEVEL] knob.
The last used function is recalled when the [FUNC] knob is pressed. Therefor you can easily call up and
then set a function by turning the [FUNC] knob.
To change the function of the [FUNC] knob, touch the desired item that appears on the function screen
when the [FUNC] knob is pressed, or turn the [FUNC] knob to select an item and then press the [FUNC]
knob.

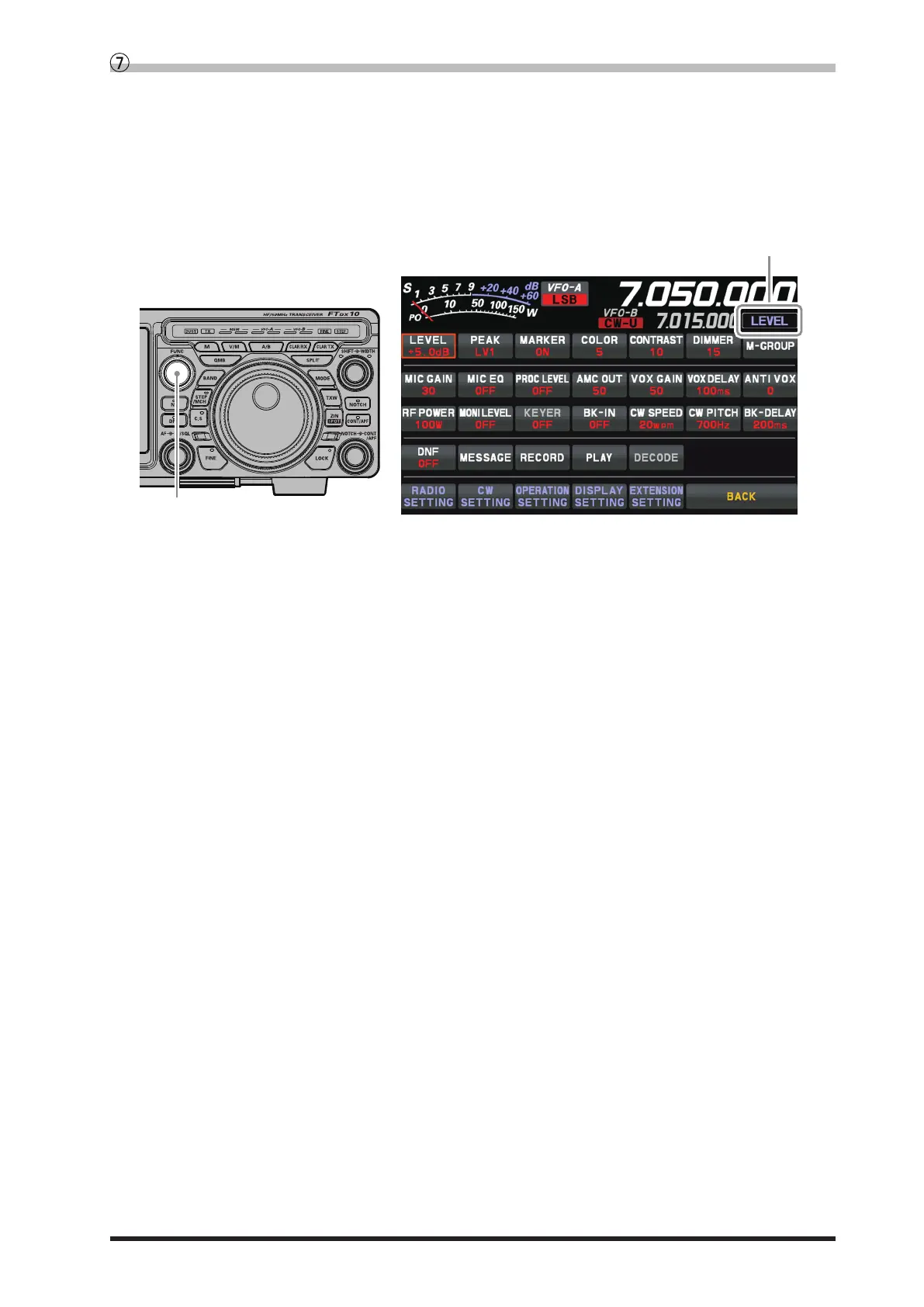

Operation of the FUNC knob
The following settings and operations can be performed with the [FUNC] control.
LEVEL
PEAK
MARKER
COLOR
CONTRAST
DIMMER
M-GROUP
MIC GAIN
MIC EQ
PROC LEVEL
AMC LEVEL
VOX GAIN
VOX DELAY
ANTI VOX
RF POWER
MONI LEVEL
KEYER
BK-IN
CW SPEED
CW PITCH
BK-DELAY
DNF
: Adjust the reference level to make it easier to distinguish the scope display target signal
from the noise.
: Adjust the Peak Signal Color Density.
: ON/OFF Marker indicates the transmit and receive frequency position within the Scope
Display image.
: Changes the scope display color.
: Adjust the contrast of the TFT display.
: Adjust the brightness of the TFT display.
: Memory group selection.
: Adjusts the microphone gain.
: Three-Band Parametric Microphone Equalizer is turned ON/OFF.
: Adjusts the Speech Processor Gain.
: Adjusts the AMC (Automatic Microphone Gain Control) Gain.
: VOX gain setting.
: VOX delay setting.
: Anti-VOX Settings.
: Transmit power setting.
: Monitor level adjustment.
: Built-in electronic keyer is turned ON/OFF.
: CW Break-in function is turned ON/OFF.
: Adjusts the desired sending speed.
: Adjusts the CW tone when receiving the CW signal and the side tone monitor.
: Adjust the hang time after the CW transmitting ends.
: Digital Notch Filter function is turned ON/OFF.
To Next Page
