VR-5000 OPERATING MANUAL6

DC 13.5V Jack
This is the DC power supply connection for the VR-5000. Connect the Supplied PA-
28 AC adapter to this jack.

MUTE Jack
If using the VR-5000 with a transceiver, shorting this jack during transmit will mute
receiver output and attenuate the RF signal input. Check the information provided with
your particular transceiver for details regarding proper connection.

ANT B Terminal
Use these spring-loaded terminal connectors to connect a high-impedance antenna.

ANT Switch
This switch selects antennas connected to the ANT A jack or ANT B terminal.

ANT A Jack
Connect the 50 Ω coaxial feed line from your low-impedance antenna here, using a
type-M (PL-259) connector.
‡A‡A
‡A‡A
‡A
ANT A
CAT
IF OUT
ANT
AB
+8VRECEXT SP
ANT B
MUTE
DC 13.5V
‡F‡F
‡F‡F
‡F
‡@‡@
‡@‡@
‡@
‡B‡B
‡B‡B
‡B
‡C‡C
‡C‡C
‡C
‡D‡D
‡D‡D
‡D
‡E‡E
‡E‡E
‡E
‡G‡G
‡G‡G
‡G
‡H‡H
‡H‡H
‡H
‡I‡I
‡I‡I
‡I

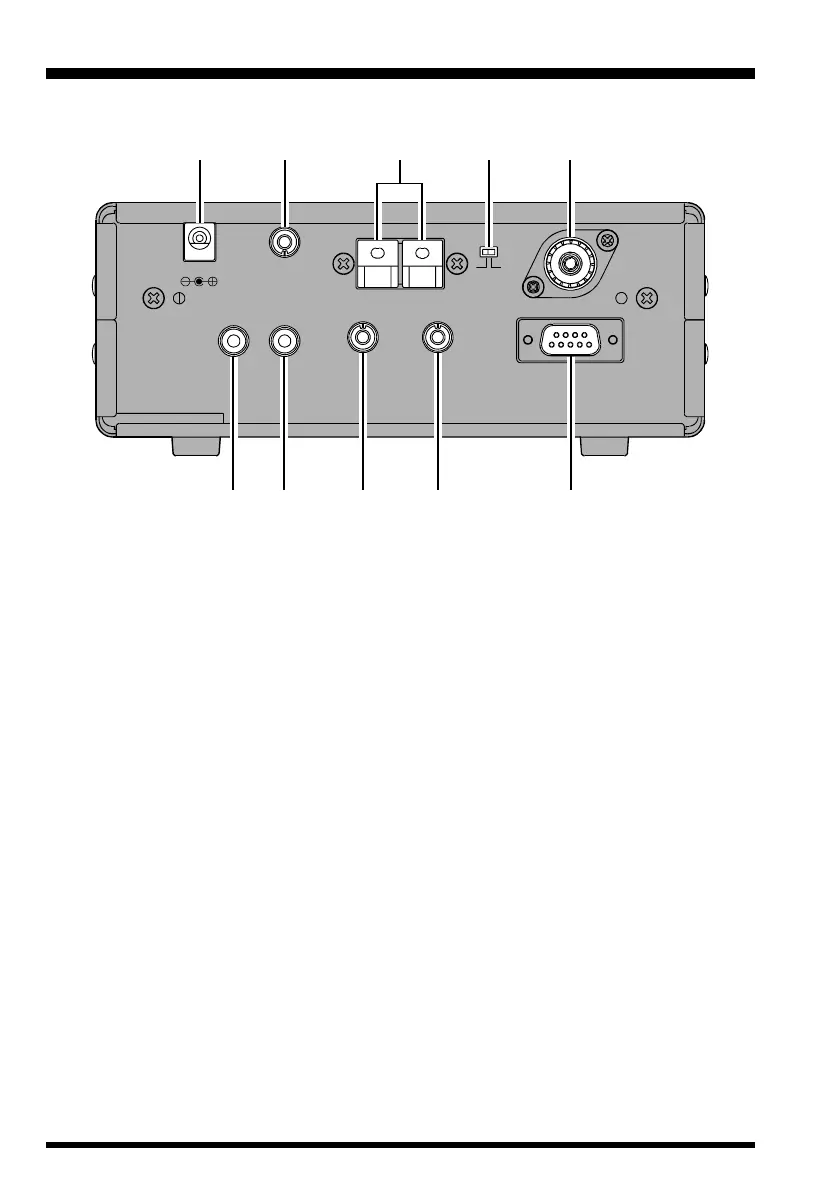

Rear Panel Connections
