ZAPI™ PC Interface 2200 YRM 1067
ZAPI™ PC Interface
CONNECTING PC TO ZAPI™
CONTROLLER
NOTE: Values used on the following figures are for ex-
ample only. For the correct values for your truck, see
Controller Parameters in this section.
1. Turn the key switch to the OFF position.
2. Remove the drive unit compartment cover to ac-
cess the controller.
3. Locate the communications port on the controller.
(The port will have either a diagnostic LED, as in
Figure 6, or a connector for the display, as in Fig-
ure 7.)

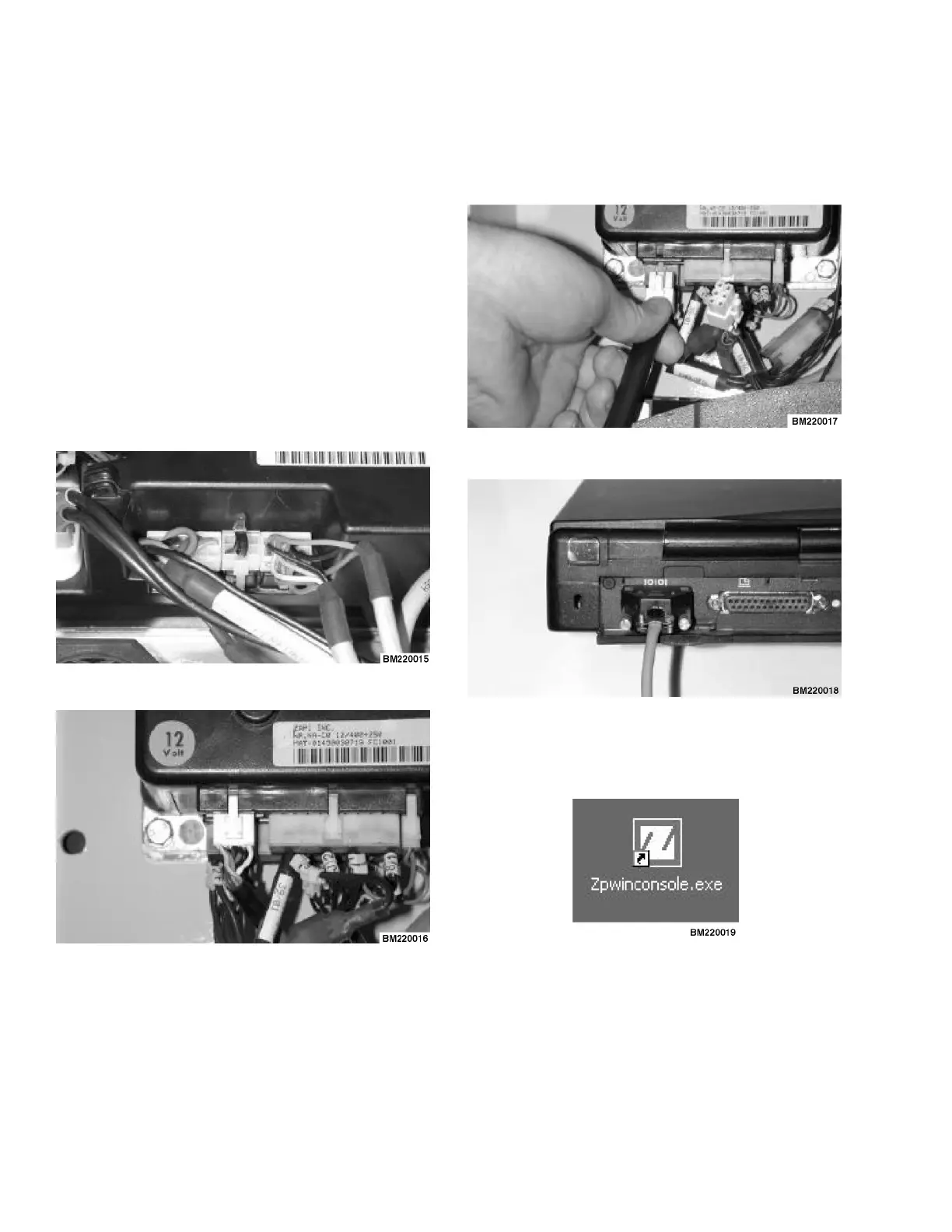

Figure 6. Diagnostic LED
Figure 7. Display Connection
4. Connect the interface cable to the controller and the
PC. See Figure 8 and Figure 9.
Figure 8. Controller Connection
Figure 9. PC Connection
5. LocatetheiconfortheZAPI™softwareonthePC
and double-click on it. See Figure 10.
Figure 10. ZAPI™ Icon
36
