ZAPI™ PC Interface 2200 YRM 1067
CONNECTION MENU
There are two selections under this menu:
1. Start - Starts the connection between the controller
and PC (operates the same as the main Start button
on the right-hand side of the display screen).
2. Stop - Stops the connection between the controller
and PC (operates the same as the main Stop button
on the right-hand side of the display screen).
See Figure 23.

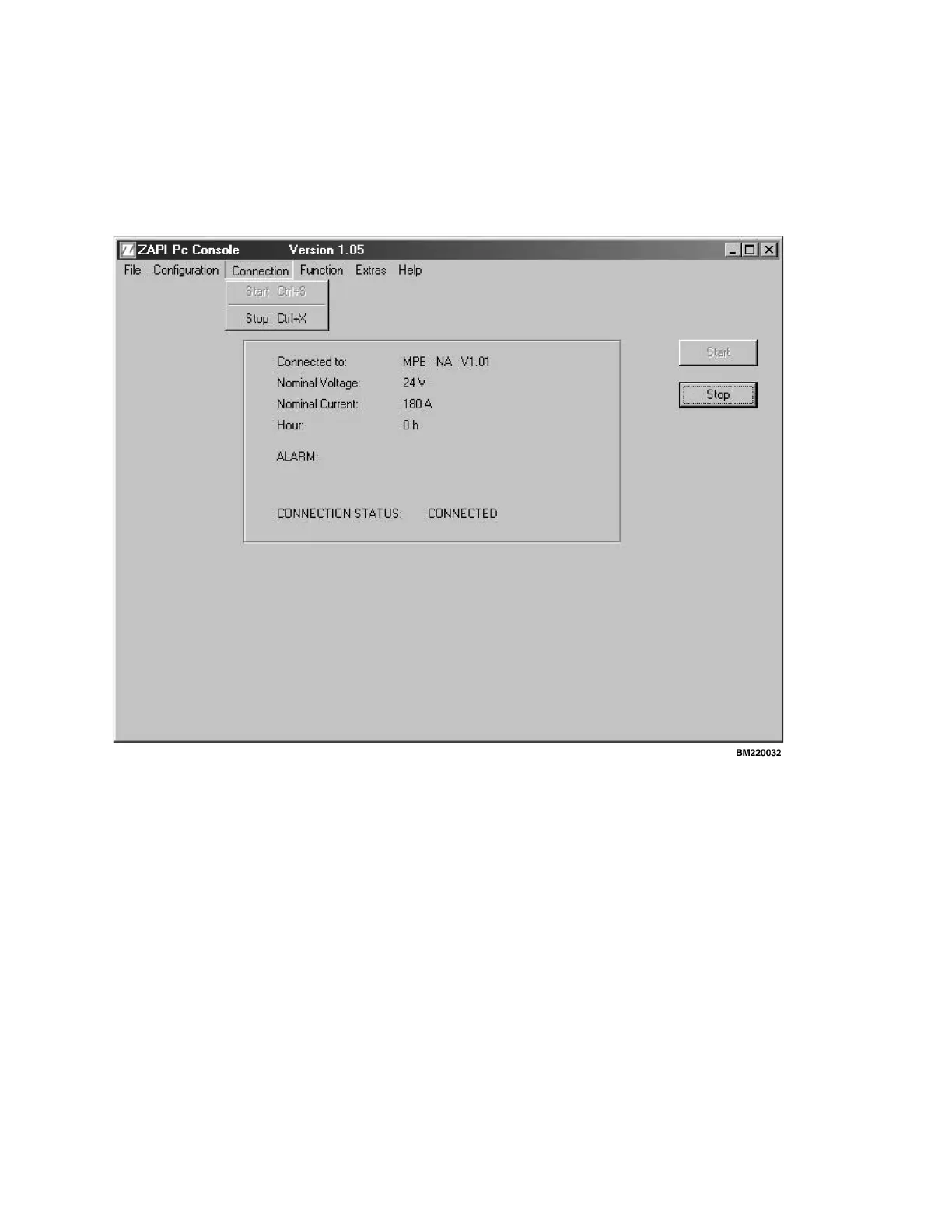

Figure 23. Connection Menu
FUNCTION MENU
There are seven selections under this menu:
1. Parameter - Allows the performance and configu-
ration of the controller to be adjusted. Refer to Pa-
rameter, in this section.
2. Tester - Allows the testing of various inputs and
operations of the controller. Refer to Tester, in this
section.
3. Alarm Logbook - Stores alarms that the controller
detects. Refer to Alarm Logbook, in this section.
4. Program VACC - Not Used.
5. Motor Data -NotUsed.
6. Ram Function - Only Factory Use.
7. EEPROM Function -OnlyFactoryUse.
46
