INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10450
Main switch
The main switch controls the ignition
and lighting systems. The various main
switch positions are described below.
EAU10480
ON
All electrical systems are supplied with
power, and the headlight, meter lighting
and taillight come on, and the engine
can be started. The key cannot be re-
moved.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10980
Indicator lights
EAU11040
Turn signal indicator light “TURN”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11070
Neutral indicator light “NEUTRAL”
This indicator light comes on when the
transmission is in the neutral position.
EAU11090
High beam indicator light “HIGH
BEAM”
This indicator light comes on when the
high beam of the headlight is switched
on.

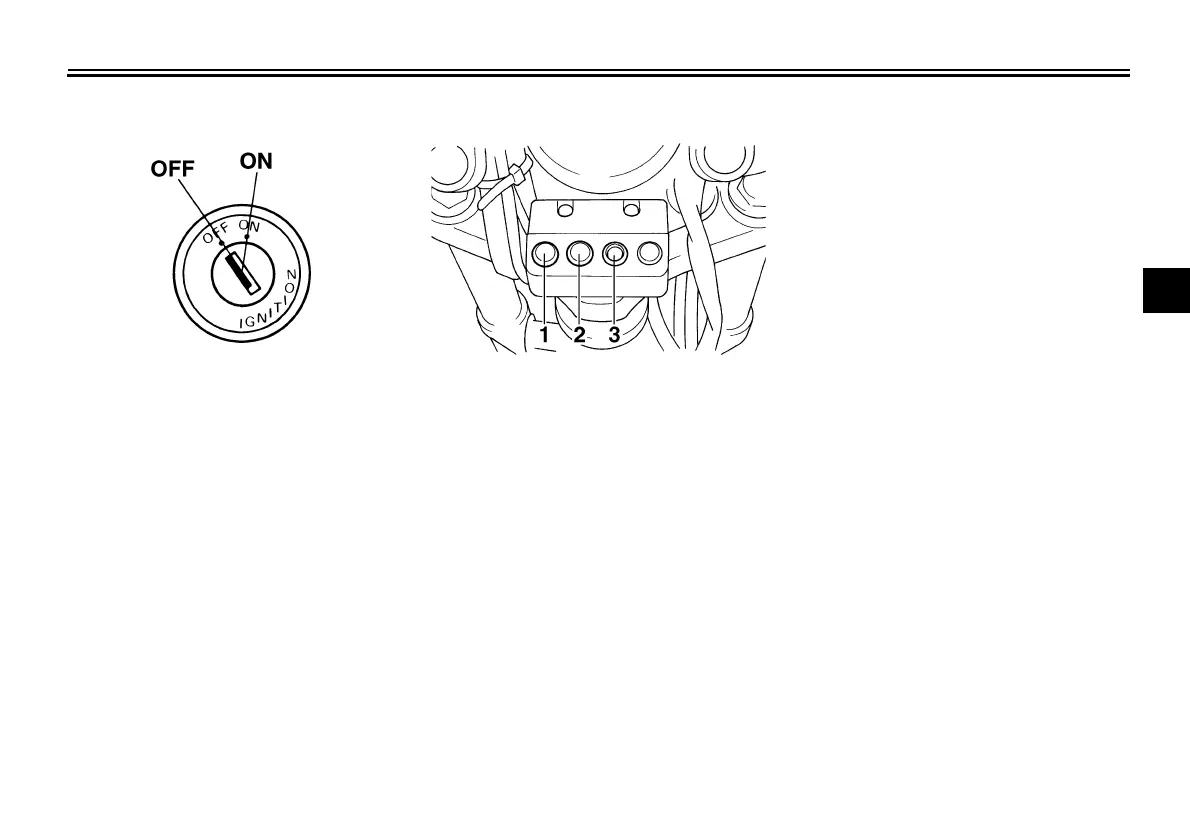

1. High beam indicator light “HIGH BEAM”
2. Neutral indicator light “NEUTRAL”
3. Turn signal indicator light “TURN”
