INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11630

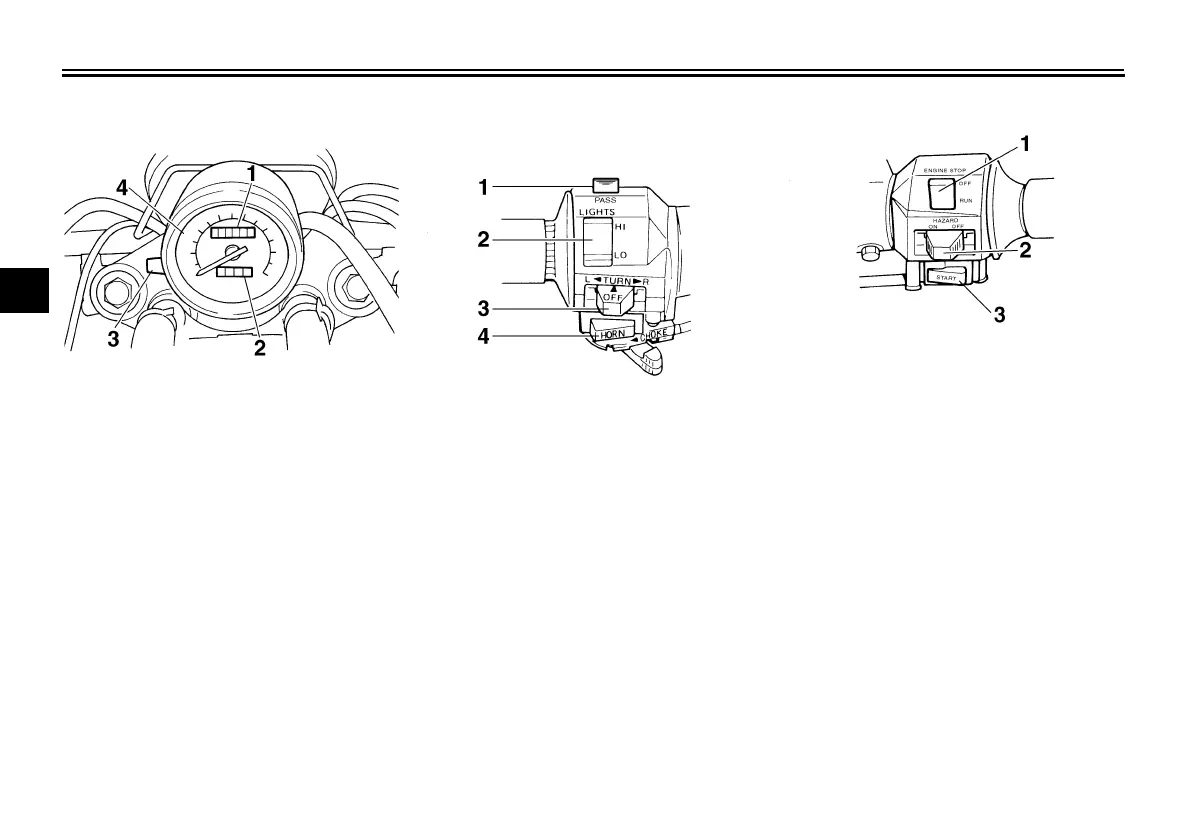

Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
EAU12343
Handlebar switches
Left
Right
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12410
Dimmer switch “LIGHTS”
Set the switch to “HI” for the high beam
and to “LO” for the low beam.
EAU12440
Turn signal switch “TURN”
To signal a right-hand turn, push this
switch to the right. To signal a left-hand
turn, push this switch to the left. When
released, the switch returns to the cen-
1. Odometer
2. Tripmeter
3. Tripmeter reset knob
4. Speedometer
1. Pass switch “PAS S”
2. Dimmer switch “LIGHTS”
3. Turn signal switch “TURN”
4. Horn switch “HORN”
1. Engine stop switch “ENGINE STOP”
2. Hazard switch “HAZARD”
3. Start switch “START”
U2UJ23E0.book Page 2 Wednesday, May 11, 2005 11:30 AM
